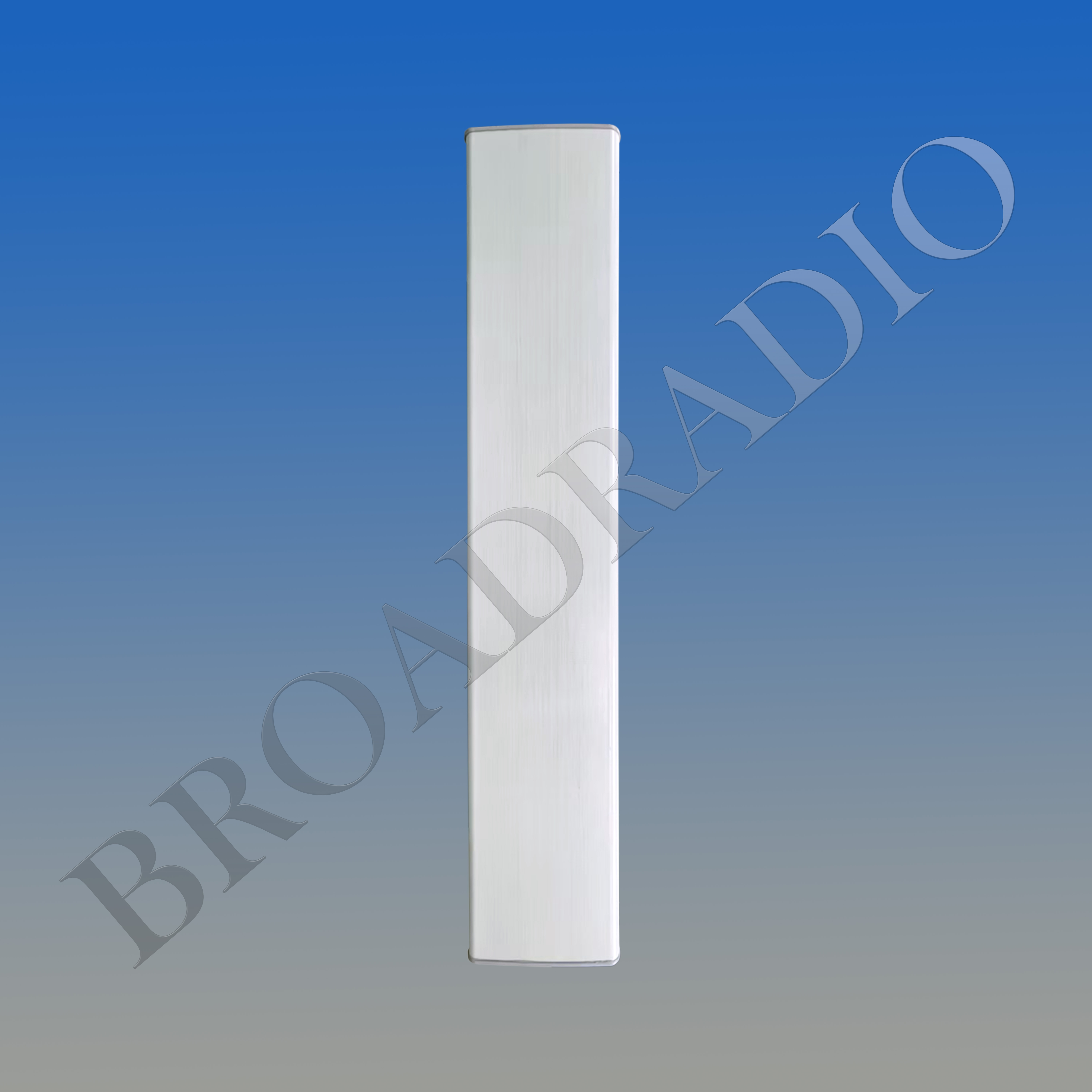

4LB8MB 65° 15/15.5/17.5/16.5/17/16dBi+2.6GHz TDD Antenna
Model: S-HU2L6PX10.10.11P2-DL2H2-2C
General Electrical Properties | |||
General Parameters | Frequency Range (MHz) : | 2300-2690(Y7) | |
2300-2500 | 2500-2690 | ||
Polarization: | ±45 | ||
Electrical Downtilt (°) : | 2-12, continuously adjustable | ||
Lightning Grounding: | DC Grounded | ||
Connecter Type: | 1xMQ5,1xMQ4 | ||
Calibration and Electrical Parameters | Coupling Factor between calibration port and each antenna port (dB) : | -26±2 | |
Max Amp/Phase Deviation: | <1.2dB/12° | ||
VSWR : | <1.5 | ||
Max. Power Per Port (W): | 150 | ||
Intraband Isolation (dB): | >20 | ||
Interband Isolation (dB): | >20 | ||
Electrical Specifications (698-960/1710-2690 MHz) | ||||||
Frequency Range (MHz): | 698-960(R1,R2,R3,R4) | 1710-2690(Y1,Y4,Y5,Y6) | ||||
698-862(R1,R2) | 880-960(R3,R4) | 1710-2170 | 2300-2490 | 2490-2690 | ||
Gain (dBi): | Bottom | 14.3±0.6 | 14.8±0.7 | 16.0±0.8 | 16.7±0.8 | 17.5±0.8 |
Top | / | / | 16.0±0.8 | 16.3±0.8 | 17.0±0.8 | |
Return Loss (dB): | >14 (VSWR<1.5) | |||||
Polarization: | ±45° | |||||
Horizontal 3dB Beamwidth (°): | Bottom | 65 | 60 | 68 | 67 | 60 |
Top | / | / | 68 | 67 | 64 | |
Vertical 3dB Beamwidth (°): | Bottom | 8.3 | 7.2 | 7.0 | 5.9 | 5.2 |
Top | / | / | 6.1 | 5.0 | 4.5 | |
Electrical Downtilt (°): | 2-12 Independently Continuously Adjustable | |||||
1stUpper Sidelobe Suppression (dB): | Bottom | 14 | 14 | 14 | 14 | 15 |
Top | / | / | 13 | 13 | 13 | |
Intraband Isolation (dB): | >25 | |||||
Interband Isolation (dB): | >25 | |||||
Max. Power Per Port (W): | 250 | 200 | ||||
Intermodulation IM3 (dBc): | <-150 (2×43dBm) | |||||
Impedance (ohm): | 50 | |||||
Lightning Protection: | DC Grounded | |||||

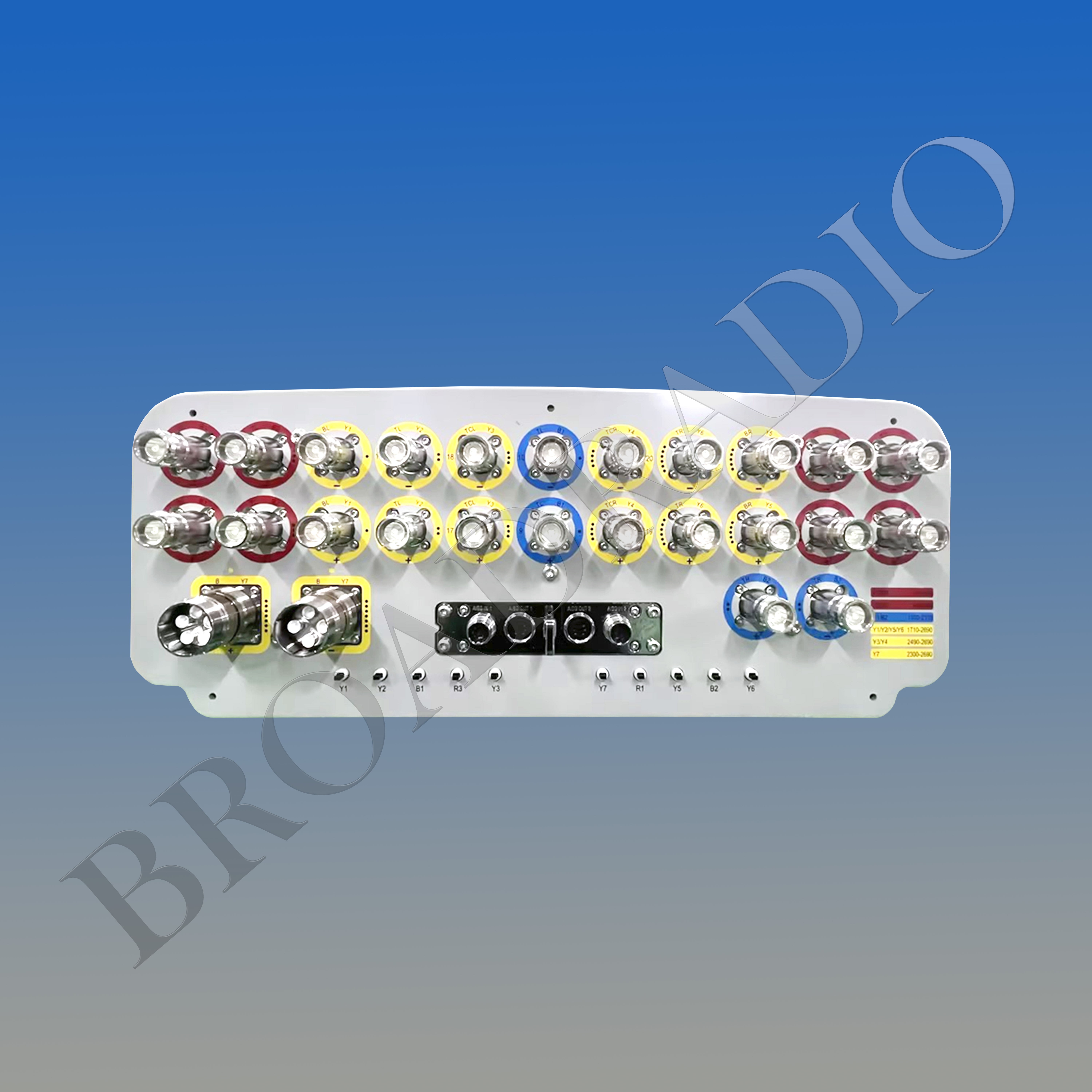

Connector Type: | 16x4.3-10 Female | |||||
Electrical Specifications (1710-2170/2490-2690 MHz) | ||||
Frequency Range (MHz): | 1710-2170(B1,B2) | 2490-2690(Y2,Y3) | ||
1710-1880 | 1880-2025 | 2025-2170 | 2490-2690 | |
Gain (dBi): | 16.0±0.8 | 16.3±0.8 | 16.1±0.8 | 16.8±0.8 |
Return Loss (dB): | >14 (VSWR<1.5) | |||
Polarization: | ±45° | |||
Horizontal 3dB Beamwidth (°): | 65 | 63 | 65 | 63 |
Vertical 3dB Beamwidth | 6.0 | 5.8 | 5.2 | 4.5 |
Electrical Downtilt | 2-12 Independently Continuously Adjustable | |||
1st Upper Sidelobe Suppression (dB): | 13 | 13 | 13 | 13 |
Intraband Isolation (dB): | >25 | |||
Interband Isolation (dB): | >25 | |||
Max. Power Per Port (W): | 200 | |||
Intermodulation IM3 (dBc): | <-150 (2×43dBm) | |||
Impedance (ohm): | 50 | |||
Lightning Protection: | DC Grounded | |||
Connector Type: | 8x4.3-10 Female | |||
Mechanical Data
Antenna Dimensions (mm): | 2695×498×197 |
Packing Dimensions (mm): | 2915×580×290 |
Antenna Net Weight/Bracket (kg): | 61.5/5.7 |
Antenna Gross Weight (kg): | 75.5 |
Radome Material: | Fiberglass |
Pipe OD (mm): | 70-115 |
Mounting Kits (Included): | BA.K.04.00069491,Adjustable Downtilt0-8(0°-8°in 1°steps) |
