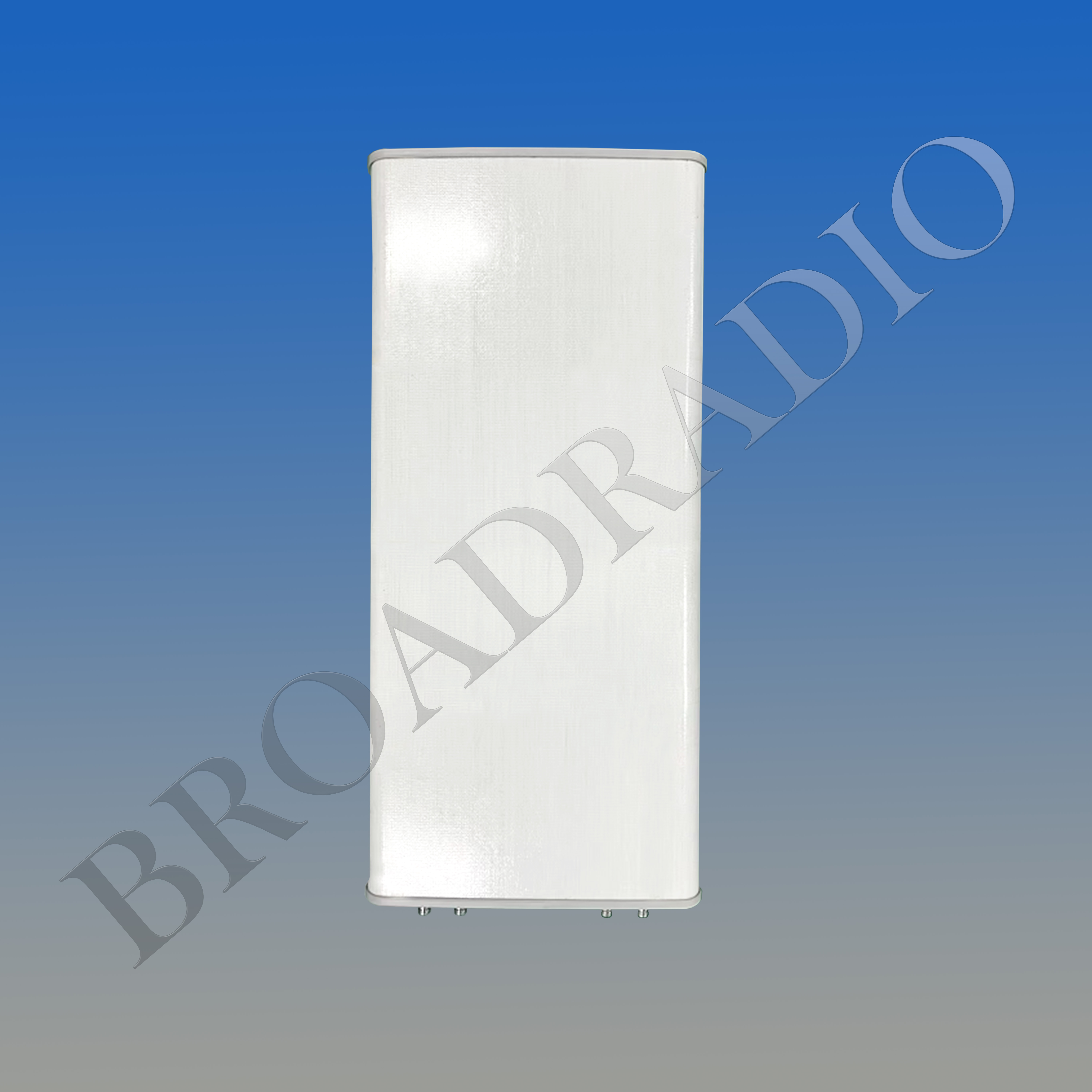

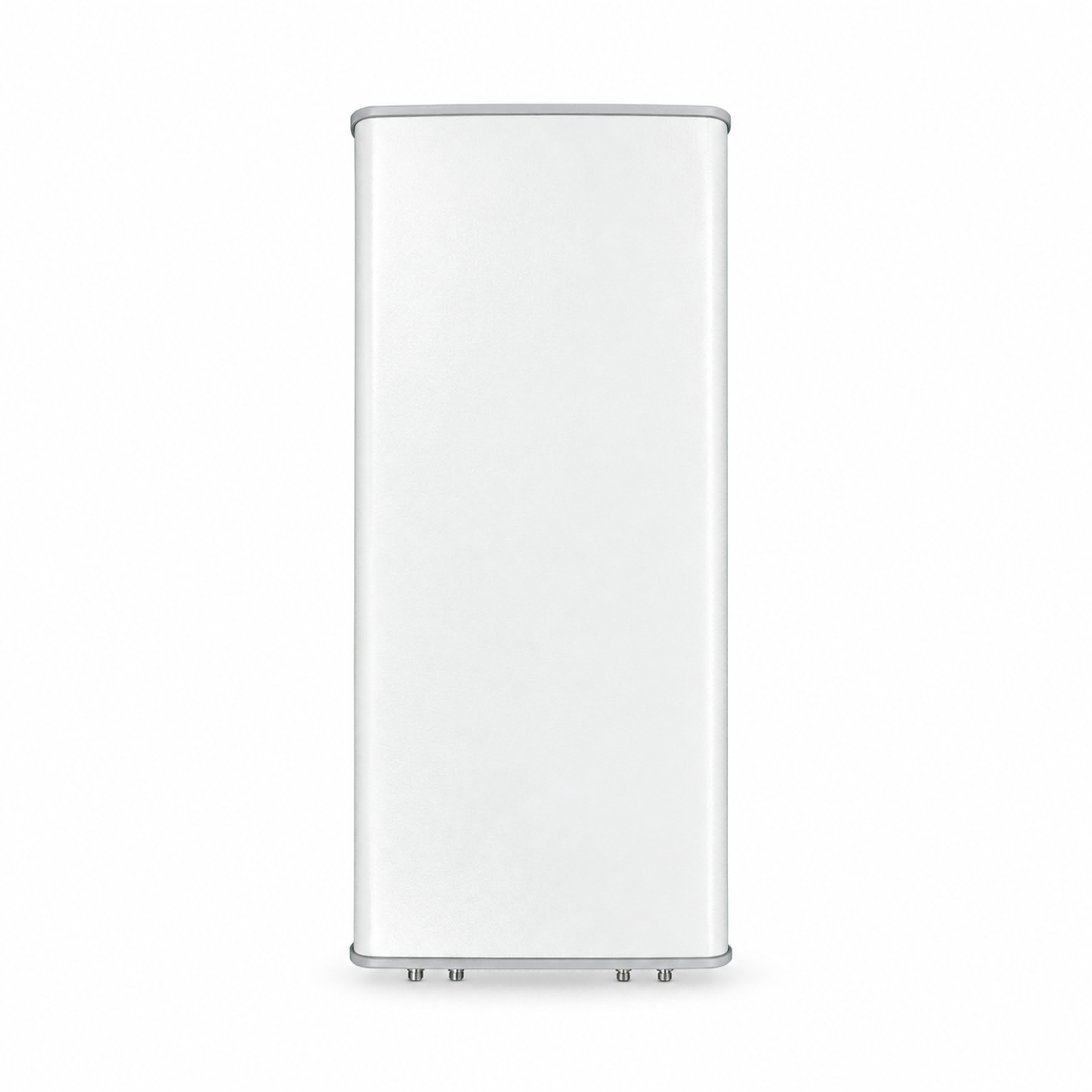

2LB4MB 65° 12.5/14/13.5dBi+3.5GHz TDD Antenna

General

parameters

Frequency range (MHz):

3300-3800(P1,P2)

Polarization:

±45

Electrical downtilt (°):

3° Fixed Tilt

Grounding:

DC Grounded

Connector Type:

2×MQ5, 2×MQ4

Calibration and

electrical

parameters

Coupling factor between calibration port and each antenna port (dB) :

-26±2

Max Amp/phase Deviation:

<1.2dB/ 12°

VSWR:

<1.5

Max. Power Per Port (W):

40

Isolation (dB):

>20

Radiation

parameters

Single Column

Horizontal 3dB Beamwidth (°):

68±11

Vertical 3dB Beamwidth (°):

9.5±0.9

Front to Back Ratio (dB):

≥20

Gain (dBi):

Bottom

13.7±0.9

Top

12.9±0.9

Cross polar ratio (dB):

>15 (0°)/ >5 (±60°)

Broadcast Beam

Horizontal 3dB Beamwidth (°):

68±11

Gain (dBi):

Bottom

13.7±0.9

Top

12.9±0.9

Front to Back Ratio (dB):

>20

Vertical 3dB Beamwidth (°):

9.5±0.9

1^st Upper Sidelobe Suppression (dB):

>12

Service Beam @ 0deg

Gain (dBi):

Bottom

18.7±0.9

Top

17.9±0.9

Horizontal 3dB Beamwidth (°):

20±1

Cross polar ratio (0°) (dB):

>14

Front to Back Ratio (dB):

>25

Frequency Range (MHz):

698-960(R1,R2)

1710-2690(Y1,Y2,Y3,Y4)

698-806

806-880

880-960

1710-2170

2300-2490

2490-2690

Gain (dBi):

Bottom

11.9±0.4

12.6±0.3

12.6±0.3

13.5±0.7

14.6±0.5

15.0±0.5

Top

13.4±0.5

14.1±0.5

14.7±0.5

Return Loss (dB):

>14 (VSWR<1.5)

Polarization:

±45°

Horizontal 3dB beamwidth (°):

66±14

70±9

75±6

75±5

71±8

56±6

Vertical 3dB beamwidth (°):

22±2

19±2

17±2

18±3

13±1

12±1

Electrical Downtilt (°):

3° Fixed Tilt

3° Fixed Tilt

Front to Back Ratio @180±30°(dB):

>18

>19

>18

>22

>22

>22

Cross Polar Ratio 0° (dB):

>13

>13

>13

>13

>13

>13

Intraband Isolation (dB):

>23

Interband Isolation (dB):

>23

Max. Power Per Port (W):

150

100

Intermodulation IM3 (dBc):

<-150 (2×43dBm)

Impedance (ohm):

50

Lightning Protection:

DC Grounded

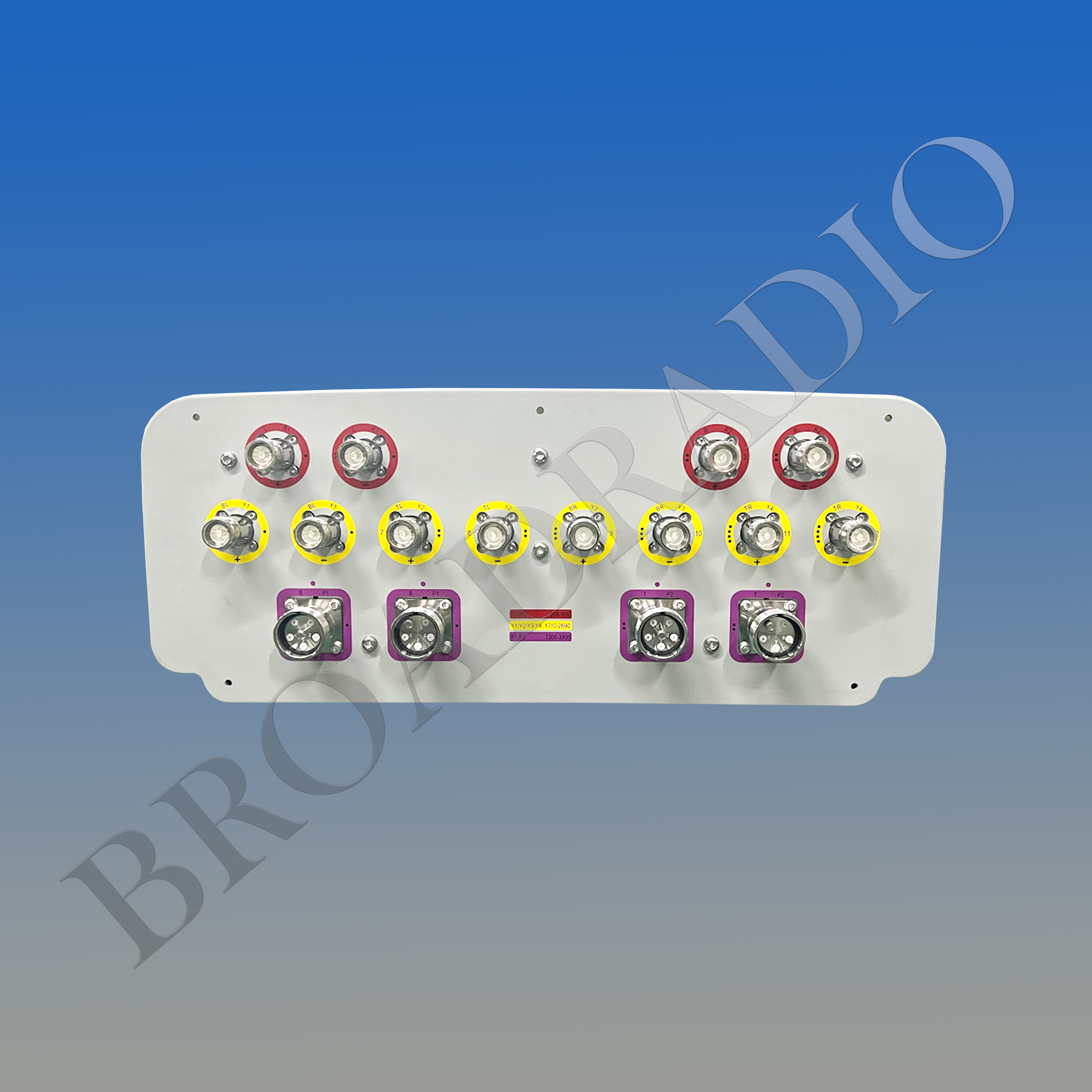

Connector Type:

12×4.3-10 Female

Packing Dimensions (mm):

1355x580×285

Antenna Net Weight/Bracket (kg):

19/5.9

Antenna Gross Weight (kg):

28.6

Radome Material:

Fiberglass

Pipe OD (mm):

50-115

Mounting Kits (Included):

BA.K.04.00069601, Adjustable Downtilt 0°-24°
