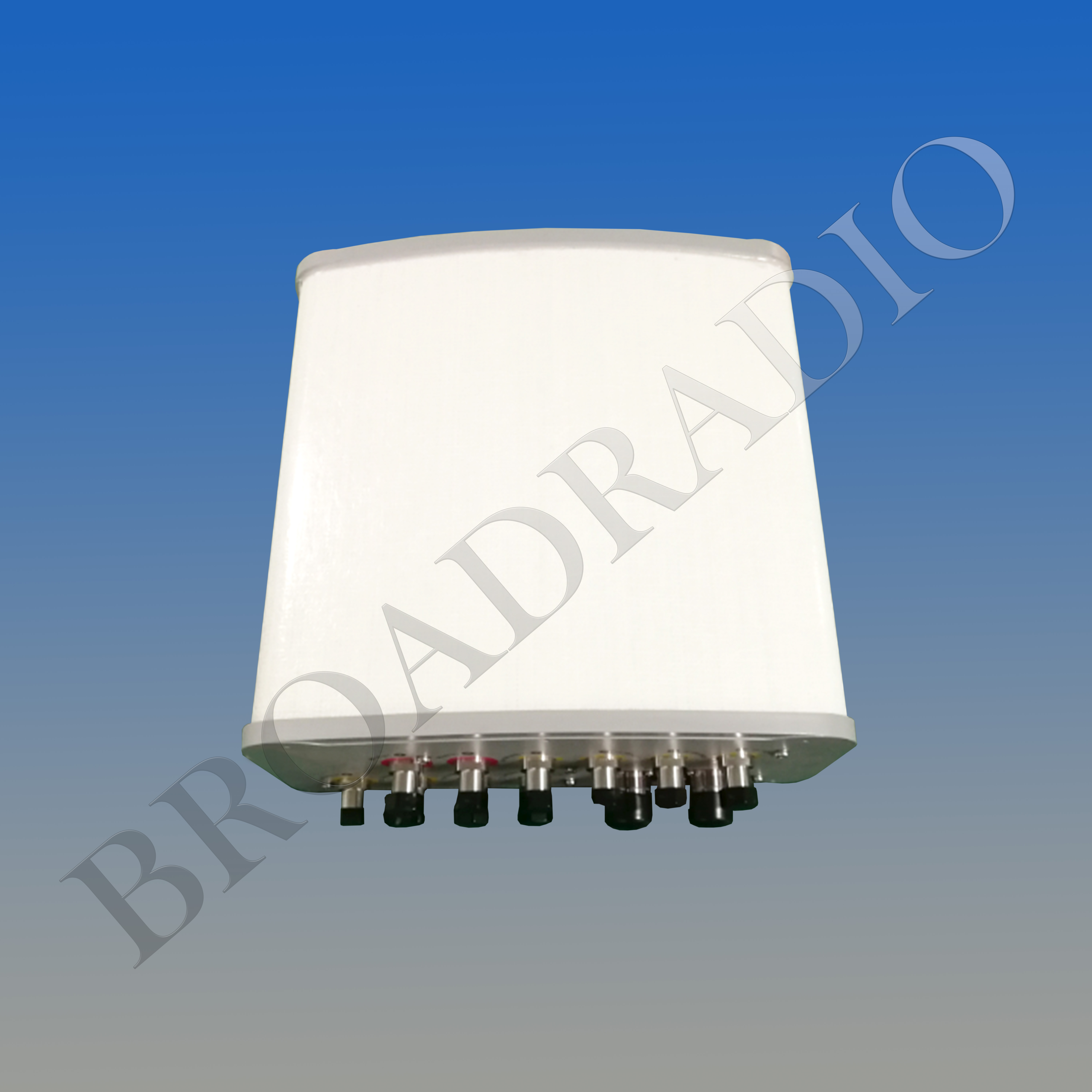

1LB4MB 65° 10/11/10dBi+3.5GHz TDD Antenna

General

parameters

Frequency range (MHz):

3300-3800(P1)

Polarization:

±45°

Electrical downtilt (°):

3 Fixed

Connector Type:

1xMQ5,1xMQ4

Calibration and

electrical

parameters

Coupling factor between calibration port and each antenna port (dB) :

-26±2

Amp/phase Deviation:

<1.2/12°

VSWR:

<1.5

Max. Power Per Port (W):

40

Co-polarization isolation between ports (dB):

>20

Cross-polarization isolation between ports (dB) :

>19

Radiation

parameters

Single Column

Horizontal 3dB Beamwidth (°):

80±10

Vertical 3dB Beamwidth (°):

31

Front to Back Ratio (dB):

23

Gain (dBi):

9.5±0.5

Cross polar ratio (dB):

>15 (0°)/>8 (±60°)

Broadcast Beam

Horizontal 3dB Beamwidth (°):

65±10

Gain (dBi):

11.0±0.5

Front to Back Ratio (dB):

25

Vertical 3dB Beamwidth (°):

31

Cross polar ratio (dB):

>15 (0°)/>8 (±60°)

Service Beam @ 0deg

Gain (dBi):

14.5±0.5

Horizontal 3dB Beamwidth (°):

19

Horizontal Sidelobe Level (dB):

<-12

Cross polar ratio (0°) (dB):

15

Front to Back Ratio (dB):

25

Service Beam@ 60deg

Gain (dBi):

11.0±0.5

Horizontal 3dB Beamwidth (°):

20

Horizontal Sidelobe Level (dB):

<-3

Frequency Range (MHz):

698-960(R1)

1695-2690(Y1,Y2,Y3,Y4)

698-806

806-880

880-960

1695-2170

2300-2490

2490-2690

Gain (dBi):

8.8±0.5

9.2±0.5

9.6±0.5

10.0±0.5

10.6±0.5

11.0±0.5

Return Loss (dB):

>14 (VSWR<1.5)

Polarization:

±45°

Horizontal 3dB beamwidth (°):

68

65

62

68

65

60

Vertical 3dB beamwidth (°):

44

42

39

36

33

31

Electrical Downtilt (°):

3 Fixed

3 Fixed

Front to Back Ratio @180±30°(dB):

21

22

23

25

25

25

Cross Polar Ratio 0° (dB):

15

15

15

15

15

15

polarization Isolation (dB):

>20

Interband Isolation (dB):

>20

Max. Power Per Port (W):

150

100

Intermodulation IM3 (dBc):

<-150 (2×43dBm)

Impedance (ohm):

50

Lightning Protection:

DC Grounded

Connector Type:

10x4.3-10 Female

Packing Dimensions (mm):

650×465×305

Antenna Net Weight/Bracket (kg):

6.8/2.6

Antenna Gross Weight (kg):

10.5

Radome Material:

Fiberglass

Pipe OD (mm):

70-110

Mounting Kits (Included):

BA.K.04.00052, horizontal adjustable -35°-+35°, vertical adjustable -45°-+45°
