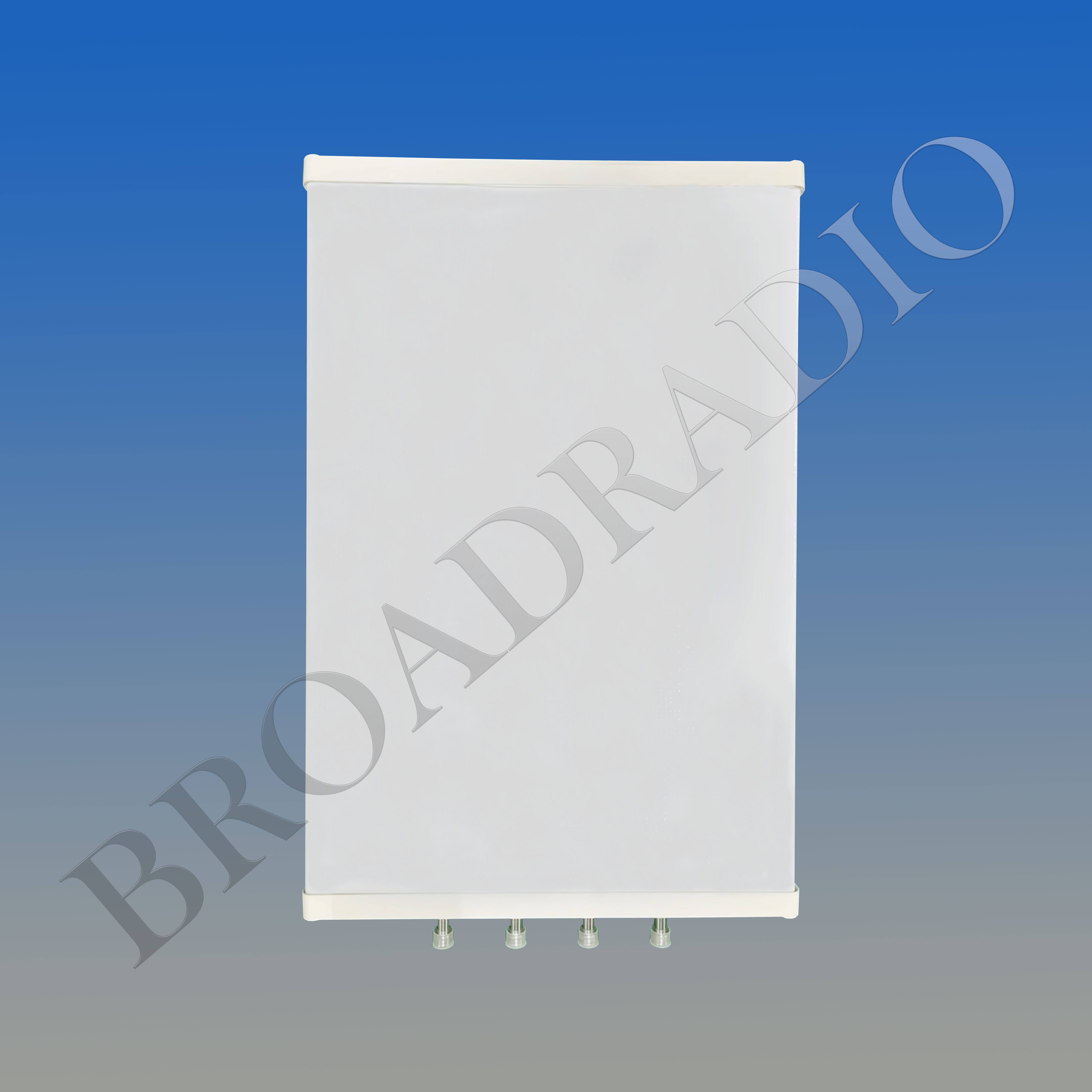

4HB2MB 33°/33°/33° 12/12/12dBi Stadium Antenna
Model: LLVVNNPX202F0-4P-N
Electrical Specifications
Frequency Range (MHz): | 1710-2700(Y1,Y2) | 3300-3800(P1,P2) | 4800-5000(O1,O2) | |
1710-2170 | 2170-2700 | 3300-3800 | 4800-5000 | |
Gain (dBi): | 11±0.5 | 11.5±0.5 | 11.5±0.5 | 11.5±0.5 |
Return Loss (dB): | >11.7 (VSWR<1.7) | |||
Polarization: | ±45° | |||
Horizontal 3dB Beamwidth(°): | 35±6 | 30±5 | 30±5 | 28±5 |
Vertical 3dB Beamwidth(°): | 35±6 | 30±5 | 30±5 | 28±5 |
Electrical Downtilt(°): | 0 Fixed | |||
Front to Back Ratio (dB): | 25 | 20 | 20 | |
Vertical Sidelobe Suppression(dB): | ≥18 | ≥18 | 18 | |
Horizontal Sidelobe Suppression(dB): | ≥18 | ≥18 | 18 | |
CPR at Boresight | ≥17 | ≥17 | 17 | |
Isolation(dB): | >25 | |||
Max. Power Per Port (W): | 200 | 200 | 100 | |
Intermodulation IM3 (dBc): | <-150(2×43 dBm) | / | ||
Impedance (ohm): | 50 | |||
Lightning Protection: | DC Grounded | |||
Connector Type: | 4×N Female | |||
Mechanical Data
Antenna Dimensions (mm): | 600×393×90 |
Packing Dimensions (mm): | 955×460×189 |
Antenna Net Weight/Bracket(kg): | 8.1/6.2 |
Antenna Gross Weight (kg): | 16.4 |
Radome Material: | Fiberglass |
Pipe OD (mm): | 70-114 |
Mounting Kits (Included): | BA.K.04.00048RA2, Horizontal adjustabie ±45° Vertical adjustable ±45° |
