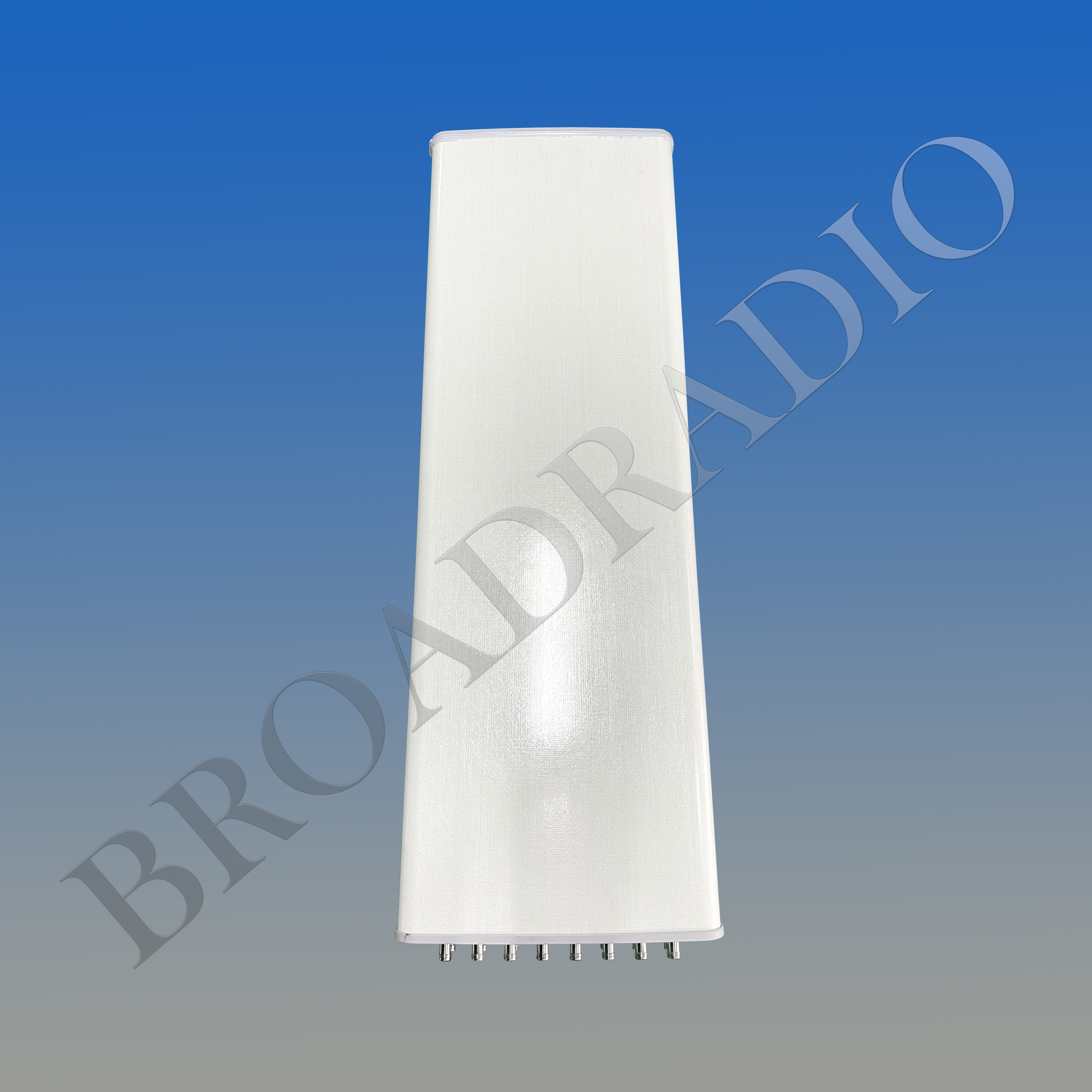

2LB6MB 65° 14/17/17.5/18dBi Multi-band Antenna

694-806

806-880

880-960

1710-2170

2300-2490

2490-2690

Gain (dBi):

12.6±0.5

13.4±0.5

13.8±0.5

16.5±0.5

17.2±0.5

17.5±0.5

Return Loss (dB):

>14 (VSWR<1.5)

Polarization:

±45°

Horizontal 3dB Beamwidth (°):

69

66

65

68

65

58

Vertical 3dB Beamwidth(°):

14.5

13.0

12.0

6.5

5.5

5.0

Electrical Downtilt (°):

2-16 Independently Continuously Adjustable

2-12 Independently Continuously Adjustable

1^st Upper Sidelobe Suppression (dB):

14

14

14

15

15

15

Front to Back Ratio (dB):

22

23

24

25

25

25

Cross Polar Ratio 0°(dB):

15

15

15

15

15

15

Intraband Isolation (dB):

>25

Interband Isolation (dB):

>25

Average power tolerance (W):

250

200

Intermodulation IM3 (dBc):

<-150(2×43 dBm)

Impedance (ohm):

50

Lightning Protection:

DC Grounded

1710-1880

1880-2025

2025-2170

2490-2690

Gain (dBi):

15.8±0.5

16.2±0.5

16.5±0.5

17.0±0.5

Return Loss (dB):

>14 (VSWR<1.5)

Polarization:

±45°

Horizontal 3dB Beamwidth (°):

70

69

68

60

Vertical 3dB Beamwidth(°):

7.0

6.5

6.0

5.0

Electrical Downtilt (°):

2-12 Independently Continuously Adjustable

1^st Upper Sidelobe Suppression (dB):

15

15

15

15

Front to Back Ratio (dB):

25

25

25

25

Cross Polar Ratio 0°(dB):

15

15

15

15

Intraband Isolation (dB):

25

Interband Isolation (dB):

25

Average power tolerance (W):

200

Intermodulation IM3 (dBc):

<-150(2×43 dBm)

Impedance (ohm):

50

Lightning Protection:

DC Grounded

Connector Type:

16×4.3-10 Female

Packing Dimensions (mm):

1760×580×285

Antenna Net Weight/bracket (kg):

30.5/ 5.9

Antenna Gross Weight (kg):

41

Radome Material:

Fiberglass

Pipe OD (mm):

50-115

Mounting Kits (Included):

BA.K.04.00069111, Adjustable Downtilt 0-13°
