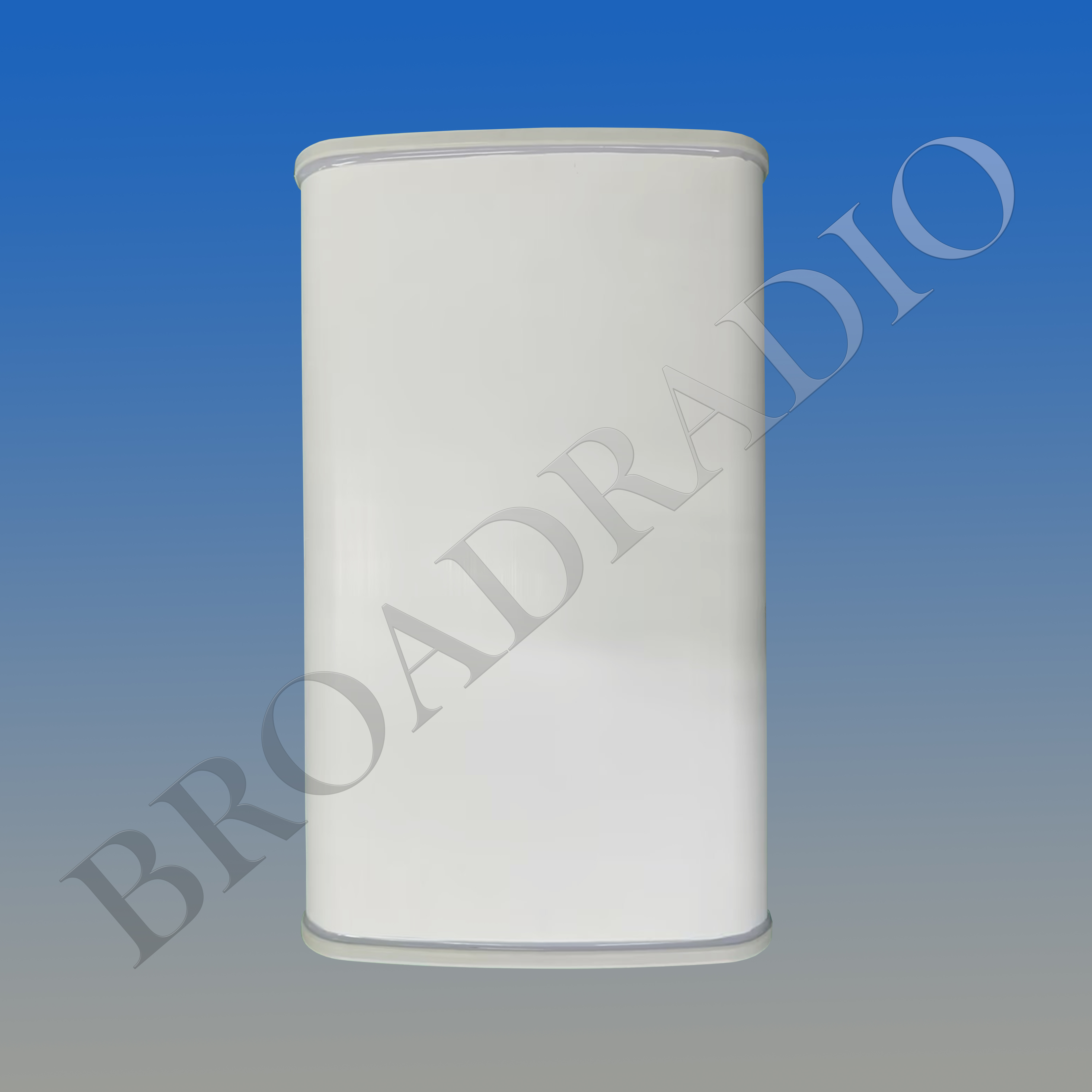

1LB1MB 65° 10/13.5dBi 2 Ports Multi-band Antenna
Model: ULPX302.4F3-2P-V1-C
Electrical Specifications
Frequency Range (MHz): | 698-960(R1) | 1710-2690(Y1) | ||||
698-806 | 806-880 | 880-960 | 1710-1920 | 1920-2170 | 2490-2690 | |
Gain (dBi): | 9.5±0.5 | 9.5±0.5 | 9.8±0.5 | 12.0±0.5 | 13.0±0.5 | 14.5±0.5 |
Return Loss (dB): | >14(VSWR<1.5) | |||||
Polarization: | ±45° | |||||
Horizontal 3dB Beamwidth (°): | 72 | 75 | 72 | 72 | 68 | 58 |
Vertical 3dB Beamwidth (°): | 42 | 38 | 33 | 21 | 18 | 15 |
Electrical Downtilt (°): | 3 | |||||
1st Upper Sidelobe Suppression (dB): | 14 | 12 | 8 | 18 | 17 | 16+ |
Front to Back Ratio (dB): | 23 | 23 | 23 | 23 | 23 | 23 |
Cross Polar Ratio 0° (dB): | 15 | 15 | 15 | 15 | 15 | 15 |
Cross Polar Ratio ±60° (dB): | 12 | 10 | 8 | 10 | 8 | 5 |
Isolation Port to Port (dB): | >25 | |||||
Intermodulation IM3 (dBc): | <-150 (2×43 dBm) | |||||
Max. Power Per Port (W): | 150 | 150 | ||||
Impedance (ohm): | 50 | |||||
Lightning Protection: | DC Grounded | |||||
Connector Type: | 4.3-10 DIN Female | |||||
Mechanical Data
Antenna Dimensions (mm): | 495×300×150 |
Packing Dimensions (mm): | 710×380×240 |
Antenna Net Weight (kg): | 6 |
Antenna Gross Weight (kg): | 10 |
Radome Material: | PVC,UV Resistant |
Pipe OD (mm): | 30-50 |
Mounting Kits (Included): | BA.K.04.00047, Support Pole installation, Wall mounted installation |
