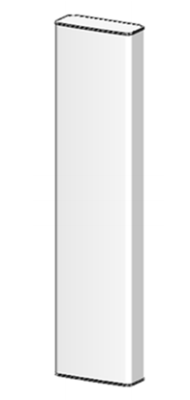

2LB4MB 65° 15/16.5dBi+2.6GHz TDD Antenna

General

parameters

Frequency range (MHz):

2300-2690(Y5)

Polarization:

±45

Electrical downtilt (°):

2-12, continuously adjustable

Grounding:

DC Grounded

Connector Type:

1xMQ5,1xMQ4

Calibration and

electrical

parameters

Coupling factor between calibration port and each antenna port (dB) :

-26±2

Max Amp/phase Deviation:

<1.2dB/12°

VSWR:

<1.5

Max. Power Per Port (W):

50

Isolation (dB):

>20

Radiation

parameters

Single Column

Horizontal 3dB Beamwidth (°):

85±20

Vertical 3dB Beamwidth (°):

6.5

Front to Back Ratio (dB):

>25

Gain (dBi):

15.0±0.8

Cross polar ratio (dB):

>13 (0°)

Broadcast Beam

Horizontal 3dB Beamwidth (°):

65±10

Gain (dBi):

16.5±0.5

Front to Back Ratio (dB):

25

Vertical 3dB Beamwidth (°):

6.5

Cross polar ratio (dB):

>15 (0°)

1^st Upper Sidelobe Suppression (dB):

>13

Service Beam @ 0deg

Gain (dBi):

20.5±0.5

Horizontal 3dB Beamwidth (°):

25

Cross polar ratio (0°) (dB):

18

Front to Back Ratio (dB):

25

Frequency Range (MHz):

698-960(R1,R2)

1710-2690(Y1,Y3)

1710-2690(Y2,Y4)

698-806

806-880

880-960

1710

-2170

2300

-2490

2490

-2690

1710

-2170

2300

-2490

2490

-2690

Gain (dBi):

14.0

±0.5

14.5

±0.7

14.8

±0.7

16.0

±0.8

16.2

±0.5

16.5

±0.8

16.0

±0.8

16.2

±0.5

16.5

±0.8

Return Loss (dB):

>14 (VSWR<1.5)

Polarization:

±45°

Horizontal 3dB Beamwidth (°):

67

62

59

68

65

62

68

65

62

Vertical 3dB Beamwidth (°):

10.3

9.3

8.6

9.5

7.0

6.0

9.5

7.0

6.0

Electrical Downtilt (°):

2-12 Independently Continuously Adjustable

Front to Back Ratio @180±30° (dB):

25

25

25

25

25

25

25

25

25

1^st Upper Sidelobe Suppression (dB):

15

15

15

15

15

15

15

15

15

Cross Polar Ratio 0° (dB):

15

15

15

15

15

15

15

15

15

Intraband Isolation (dB):

>25

Interband Isolation (dB):

>25

Max. Power Per Port (W):

250

200

Intermodulation IM3 (dBc):

<-153 (2×43dBm)

Impedance (ohm):

50

Lightning Protection:

DC Grounded

Connector Type:

12x4.3-10 Female

Packing Dimensions (mm):

2455×580×285

Antenna Net Weight/Bracket (kg):

40/5.9

Antenna Gross Weight (kg):

52

Radome Material:

Fiberglass

Pipe OD (mm):

50-115

Mounting Kits (Included):

BA.K.04.00069341, Adjustable Downtilt 0°-14°
