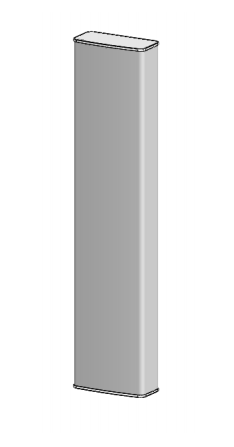

2LB 65° 16/17dBi+2.6GHz TDD Antenna

General

Parameters

Frequency Range (MHz) :

1695-2690(Y1)

Polarization:

±45°

Electrical Downtilt (°) :

2-12, continuously adjustable

Lightning Grounding:

DC Grounded

Connecter Type:

2xMQ4, 1xCAL Port

Female

Calibration and

Electrical

Parameters

Coupling Factor between calibration port and each antenna port (dB) :

-26±2

Max Amp/Phase Deviation:

<1.2dB/12°

VSWR:

<1.5

Max. Power Per Port (W):

50

Intraband Isolation (dB):

>20

Interband Isolation (dB):

>20

Radiation

Parameters

Frequency Range (MHz) :

1695-2690(Y1)

1695-2170

2300-2690

Single Column

Horizontal 3dB Beamwidth (°):

70

60

Vertical 3dB Beamwidth (°):

6.0±0.8

4.5±0.5

Front to Back Ratio (dB):

23

24

Gain (dBi):

17.0±0.8

18.0±0.9

Cross Polar Ratio 0° (dB):

>15 (0°)

>15 (0°)

Cross Polar Ratio ±60° (dB):

>4 (±60°)

>4 (±60°)

Service Beam @ 0deg

0° Gain (dBi):

22.0±0.5

23.0±0.5

0° Horizontal 3dB Beamwidth (°):

18

15

Cross polar ratio (0°) (dB):

15

15

Front to Back Ratio (dB):

25

25

698-790

790-862

880-960

Gain (dBi):

15.3±0.6

15.6±0.5

15.8±0.7

Return Loss (dB):

>14 (VSWR<1.5)

Polarization:

±45°

Horizontal 3dB Beamwidth (°):

60

58

57

Vertical 3dB Beamwidth (°):

8.8

7.8

7.1

Electrical Downtilt (°):

2-12 Independently Continuously Adjustable

RET Type:

Cascade SRET, AISG 2.0, Upgradeable

1stUpper Sidelobe Suppression (dB):

12

12

12

Intraband Isolation (dB):

>25

Interband Isolation (dB):

>25

Max. Power Per Port (W):

250

Intermodulation IM3 (dBc):

<-153(2×43 dBm)

Impedance (ohm):

50

Lightning Protection:

DC Grounded

Connector Type:

4×4.3-10 Female

Female, Bottom 4×4.3-10Female

Antenna Dimensions (mm):

2495×498×197

Packing Dimensions (mm):

2755×580×285

Antenna Net Weight/Bracket (kg):

35/5.7

Antenna Gross Weight (kg):

47

Radome Material:

Fiberglass

Pipe OD (mm):

70-114

Mounting Kits (Included):

BA.K.04.00069471, Adjustable Downtilt0°-8°(0°-8°in 1°steps)
