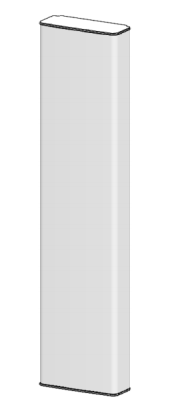

2LB4MB 65° 15/17dBi+3.5GHz TDD Antenna
Model: S-SU2L4PX10.8.10P-2Q
Electrical Specifications (2300-3800MHz) | ||||
General parameters | Frequency range (MHz): | 2300-3800(P1) | ||
2300-2690 | 3300-3800 | |||
Polarization: | ±45 | |||
Electrical downtilt (°): | 2-12, continuously adjustable | |||
Grounding: | DC Grounded | |||
Connector Type: | 1×MQ4, 1×MQ5 | |||
Calibration and electrical parameters | Coupling factor between calibration port and each antenna port (dB) : | -26±2 | ||
Max Amp/phase Deviation: | <1.2dB/ 12° | |||
VSWR: | <1.5 | |||
Max. Power Per Port (W): | 50 | |||
Isolation (dB): | >20 | |||
Radiation parameters | Single Column | Horizontal 3dB Beamwidth (°): | 100 | 65 |
Vertical 3dB Beamwidth (°): | 8.4 | 6.2 | ||
Front to Back Ratio (dB): | >23 | >25 | ||
Gain (dBi): | 14.5 | 15.5 | ||
Cross polar ratio (dB): | >13 (0°)/ >6 (±60°) | |||
Broadcast Beam | Horizontal 3dB Beamwidth (°): | 65 | ||
Gain (dBi): | 16.0 | 15.5 | ||
Front to Back Ratio (dB): | 25 | |||
Vertical 3dB Beamwidth (°): | 8.4 | 6.2 | ||
Cross polar ratio (dB): | >15 (0°)/ >8(±60°) | |||
1st Upper Sidelobe Suppression (dB): | >14 | |||
Service Beam @ 0deg | Gain (dBi): | 20.0 | 21.0 | |
Horizontal 3dB Beamwidth (°): | 26 | 18 | ||
Horizontal Sidelobe Level (dB): | <-12 | |||
Cross polar ratio (0°) (dB): | 18 | |||
Front to Back Ratio (dB): | 25 | |||
5G NR Electrical Specifications (2300-3800MHz) | ||||
Radiation parameters | Frequency range (MHz): | 2300-3800(P1) | ||
2300-2690 | 3300-3800 | |||
Single Column beam | Horizontal 3dB Beamwidth (°): | 100 | 70 | |
Vertical 3dB Beamwidth (°): | 8.4 | 6.2 | ||
Front to Back Ratio (dB): | 22 | |||
Gain (dBi): | 14.5±0.5 | 15.5±0.5 | ||
Cross polar ratio (dB): | >13 (0°)/ >6 (±60°) | |||
1st Upper Sidelobe Suppression (dB): | >14 | |||
NR Broadcast Beam | Horizontal 3dB Beamwidth (°): | 65 | ||
Gain (dBi): | 19.8 | 21.8 | ||
Front to Back Ratio (dB): | 25 | |||
Vertical 3dB Beamwidth (°): | 8.4 | 6.2 | ||
1st Upper Sidelobe Suppression (dB): | >15 | |||
NR Service Beam | 0° direct beam gain (dBi): | 20.0 | 21.0 | |
0°direct beam horizontal 3dB Beamwidth (°): | 26 | 18 | ||
0°direct beam horizontal cross polar ratio (0°) (dB): | 18 | |||
0°direct beam horizontal front to back ratio (dB): | 25 | |||
Electrical Specifications (698-960/1710-2690 MHz) | |||||||||
Frequency Range (MHz): | 698-960(R1,R2) | 1710-2690(Y2,Y3) | 1710-2690(Y1,Y4) | ||||||
| 698-806 | 806-880 | 880-960 | 1710 -2170 | 2300 -2490 | 2490 -2690 | 1710 -2170 | 2300 -2490 | 2490 -2690 |
Gain (dBi): | 14.0 ±0.5 | 14.4 ±0.7 | 14.6 ±0.7 | 16.2 ±0.6 | 16.7 ±0.6 | 17.2 ±0.8 | 16.3 ±0.6 | 16.8 ±0.6 | 17.3 ±0.8 |
Return Loss (dB): | >14 (VSWR<1.5) | ||||||||
Polarization: | ±45° | ||||||||
Horizontal 3dB beamwidth (°): | 65 | 60 | 58 | 70 | 69 | 63 | 67 | 66 | 60 |
Vertical 3dB beamwidth (°): | 10.3 | 9.0 | 8.3 | 7.5 | 6.1 | 5.1 | 7.5 | 6.1 | 5.1 |
Electrical Downtilt (°): | 2-12 Independently Continuously Adjustable | 2-12 Independently Continuously Adjustable | |||||||
Front to Back Ratio @180±30° (dB): | 21 | 22 | 22 | 22 | 23 | 25 | 22 | 23 | 25 |
1st Upper Sidelobe Suppression (dB): | 14 | 15 | 15 | 13 | 15 | 15 | 13 | 15 | 15 |
Cross Polar Ratio 0° (dB): | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
Intraband Isolation (dB): | >25 | ||||||||
Interband Isolation (dB): | >25 | ||||||||
Max. Power Per Port (W): | 250 | 200 | |||||||
Intermodulation IM3 (dBc): | <-153 (2×43dBm) | ||||||||
Impedance (ohm): | 50 | ||||||||
Lightning Protection: | DC Grounded | ||||||||
Connector Type: | 12×4.3-10 Female | ||||||||
Mechanical Data
Antenna Dimensions (mm): | 2095×498×197 |
Packing Dimensions (mm): | 2355×580×285 |
Antenna Net Weight/Bracket (kg): | 41/5.9 |
Antenna Gross Weight (kg): | 53
|
Radome Material: | Fiberglass |
Pipe OD (mm): | 50-115 |
Mounting Kits (Included): | BA.K.04.00069341, Adjustable Downtilt 0-14° |
