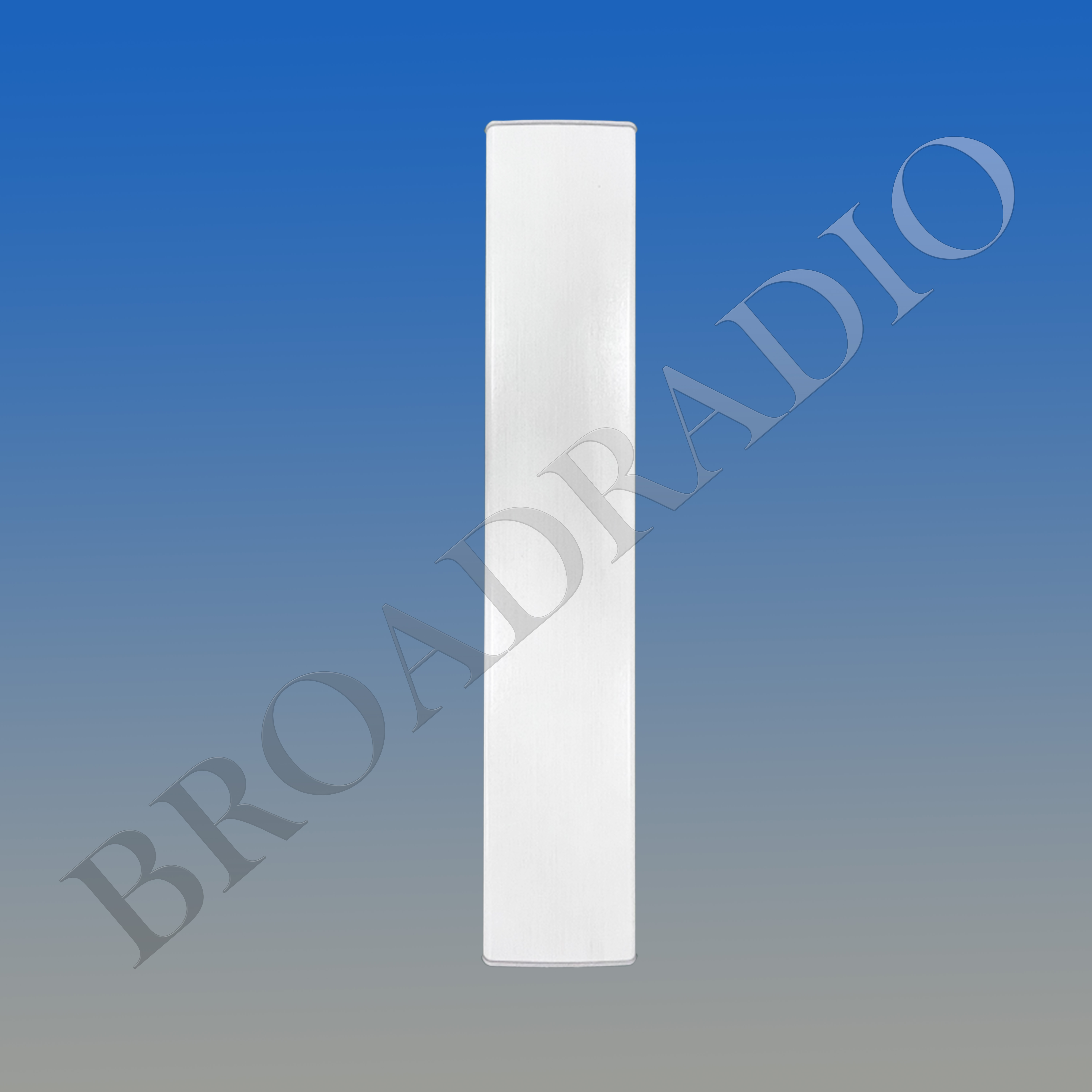

2LB4MB 65° 16/18/16dBi+2.6GHz TDD Antenna

General

Parameters

Frequency Range (MHz) :

2300-2690(Y5)

2300-2500

2500-2690

Polarization:

±45

Electrical Downtilt (°) :

2-12, continuously adjustable

Lightning Grounding:

DC Grounded

Connecter Type:

1xMQ5,1xMQ4

Calibration and

Electrical

Parameters

Coupling Factor between calibration port and each antenna port (dB) :

-26±2

Max Amp/Phase Deviation:

<1.2dB/12°

VSWR :

<1.5

Max. Power Per Port (W):

150

Intraband Isolation (dB):

>20

Interband Isolation (dB):

>20

Radiation

parameters

Single Column

Frequency Range (MHz) :

2300-2690(Y5)

2300-2500

2500-2690

Horizontal 3dB Beamwidth (°):

90±15

80±15

Vertical 3dB Beamwidth (°):

6.5±0.5

6.0±0.5

Front to Back Ratio (dB):

>25

>23

Gain (dBi):

15.3±0.5

15.8±0.7

Cross Polar Ratio 0° (dB):

>15 (0°)

>15 (0°)

Cross Polar Ratio ±60° (dB):

>5 (±60°)

>4 (±60°)

Broadcast Beam

Horizontal 3dB Beamwidth (°):

65±10

60±10

Gain (dBi):

16.7±0.5

17±0.5

Front to Back Ratio (dB):

25

25

Vertical 3dB Beamwidth (°):

6.5±0.5

6.0±0.5

Cross Polar Ratio 0° (dB):

>15 (0°)

>15 (0°)

First upper Side lobe suppression (dB):

>14

>14

Service Beam @ 0deg

Gain (dBi):

19.5±0.5

20±0.5

Horizontal 3dB Beamwidth (°):

25

25

Cross polar ratio (0°) (dB):

18

18

Front to Back Ratio (dB):

25

25

Frequency Range (MHz):

698-960(R1,R2)

1710-2690(Y2,Y3)

1710-2690(Y1,Y4)

698-806

806-880

880-960

1710-

2170

2300-

2490

2490-

2690

1710-

2170

2300-

2490

2490-

2690

Gain (dBi):

15.3

±0.6

15.7

±0.5

15.4

±0.7

16.3

±0.8

17.0

±0.8

17.6

±0.8

16.6

±0.7

17.0

±0.8

17.6

±0.8

Return Loss (dB):

>14 (VSWR<1.5)

Polarization:

±45°

Horizontal 3dB Beamwidth (°):

58

56

57

69

65

61

68

68

60

Vertical 3dB Beamwidth (°):

8.8

7.8

7.1

6.0

4.9

4.3

6.0

4.9

4.3

Electrical Downtilt (°):

2-12 Independently Continuously Adjustable

RET Type:

Cascade SRET, AISG 2.0, Upgradeable

1^stUpper Sidelobe Suppression (dB):

13

15

15

16

15

14

16

15

14

Intraband Isolation (dB):

>25

Interband Isolation (dB):

>25

Max. Power Per Port (W):

250

200

Intermodulation IM3 (dBc):

<-150(2×43 dBm)

Impedance (ohm):

50

Lightning Protection:

DC Grounded

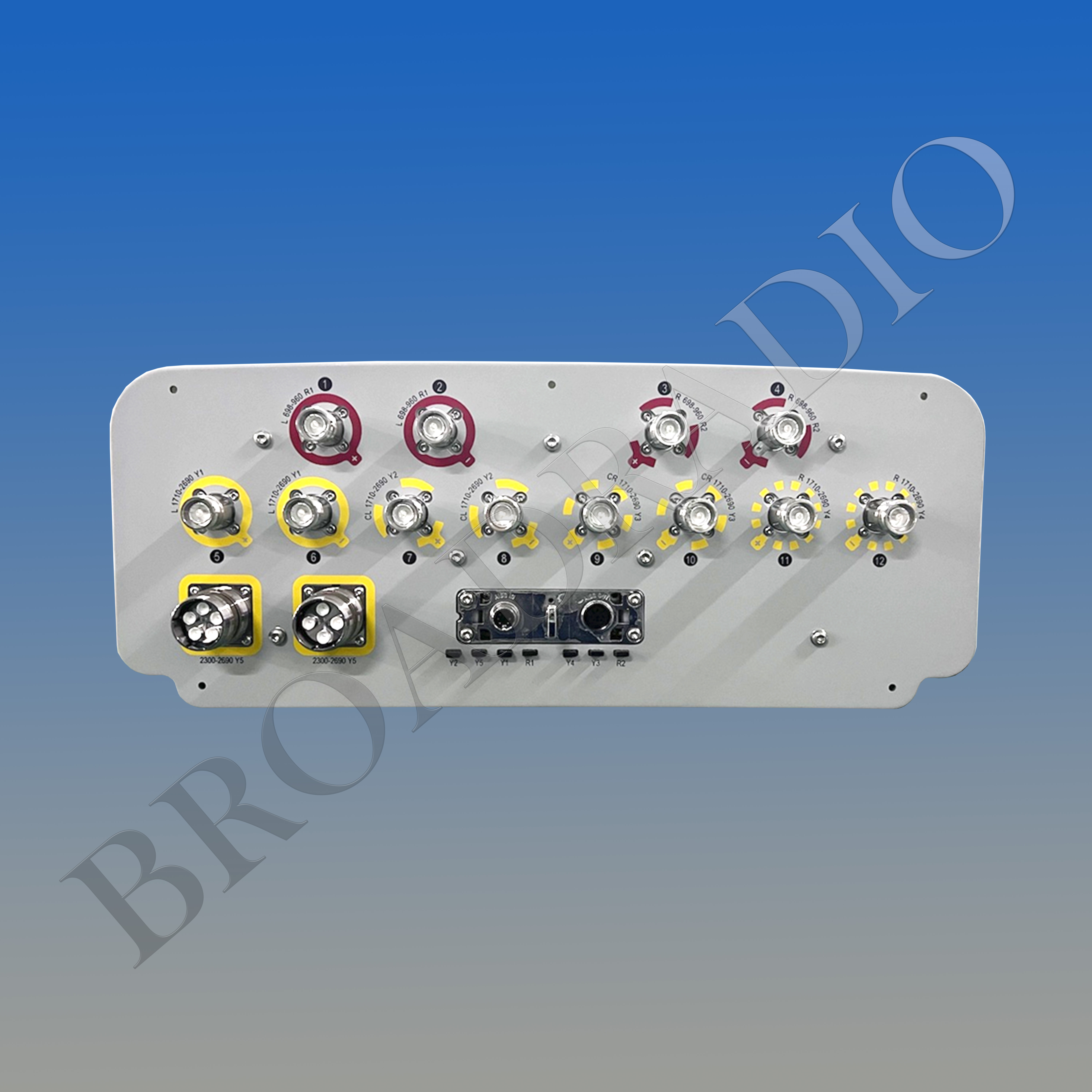

Connector Type:

12×4.3-10 Female

Packing Dimensions (mm):

2915×585×290

Antenna Net Weight/Bracket (kg):

49/5.7

Antenna Gross Weight (kg):

63

Radome Material:

Fiberglass

Pipe OD (mm):

70-115

Mounting Kits (Included):

BA.K.04.00069471, Adjustable Downtilt0-8(0°-8°in 1°steps)
