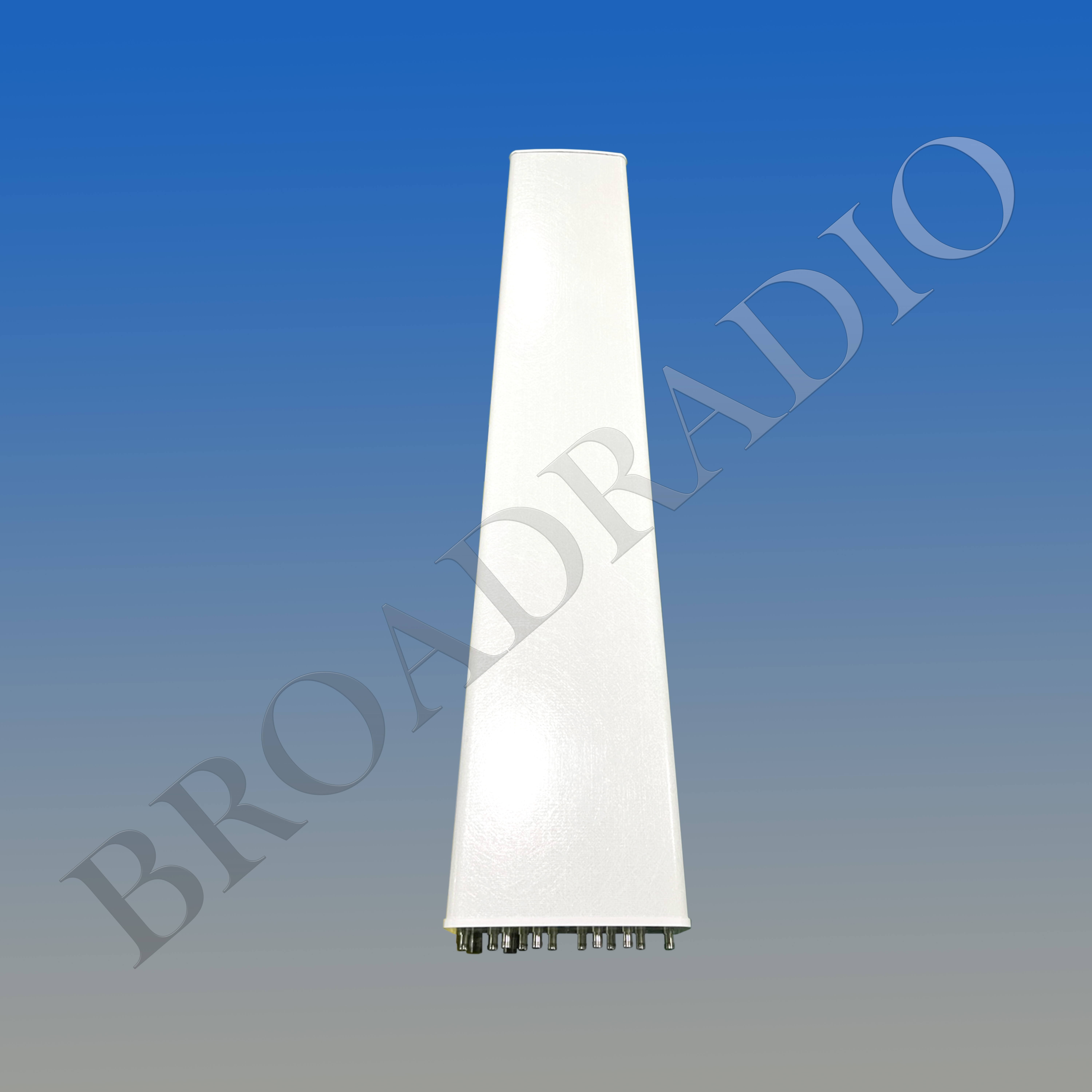

2LB4MB 65° 16/16/16.5/15.5dBi+2.6GHz TDD Antenna
Model: S-HU2L2PX10.10.12P-DH2-2C
General Electrical Properties | |||
General Parameters | Frequency Range (MHz) | 2300-2690(Y3) | |
2300-2500 | 2500-2690 | ||
Polarization | ±45° | ||
Electrical Downtilt (°) | 2-12, continuously adjustable | ||
Lightning Grounding | DC Grounded | ||
Calibration and Electrical Parameters | Coupling Factor between calibration port and each antenna port (dB) | -26±2 | |
Max Amp/Phase Deviation: | ≤1.2/12° | ||
VSWR: | ≤1.5 | ≤1.5 | |
Co- polarization Isolation between ports (dB): | ≥20 | ≥20 | |
Cross-polarization Isolation Between Ports (dB) | ≥20 | ≥20 | |
Avg. power per input(W) | ≥150 | ||

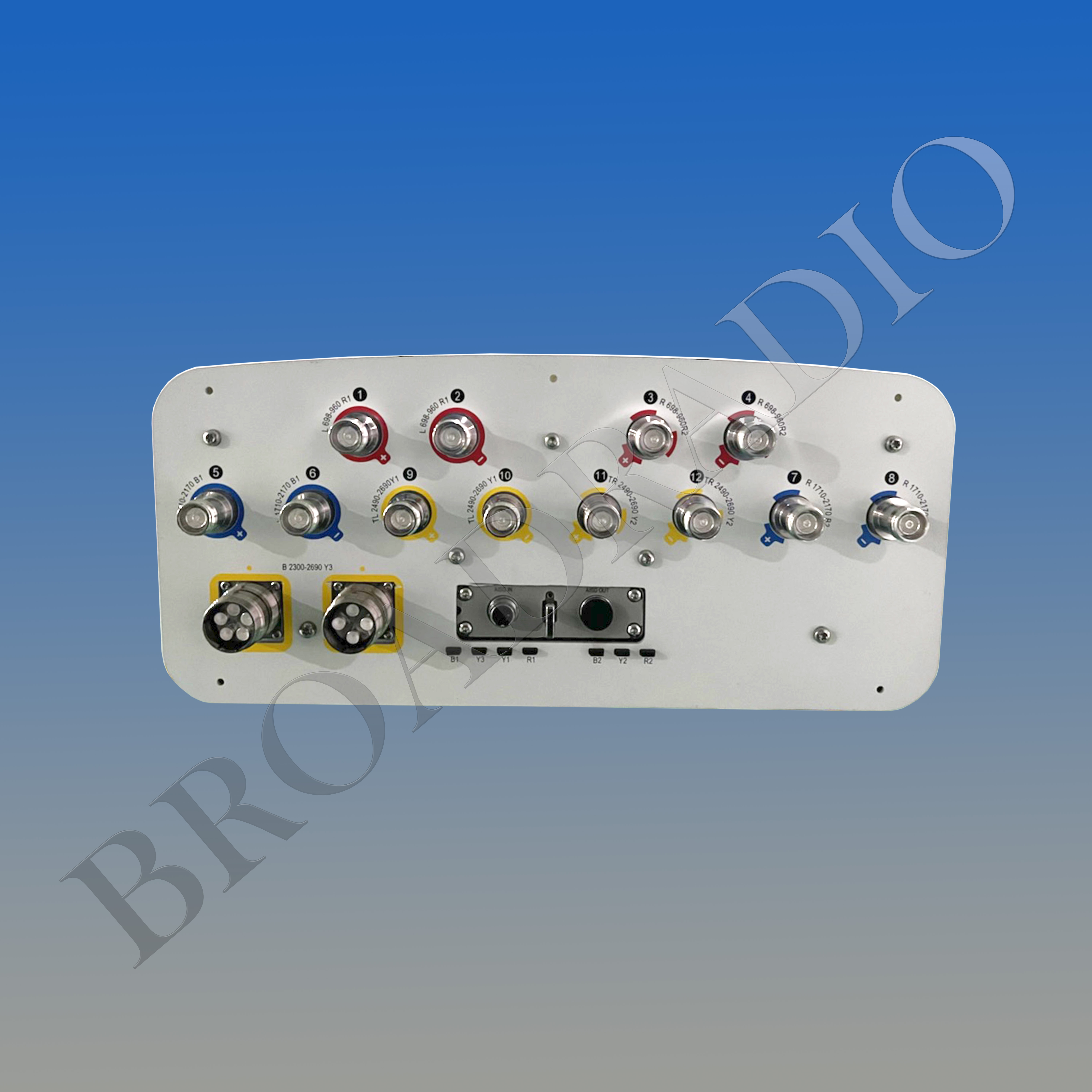

Connecter Type: | 1xMQ5,1xMQ4 | ||
Beamforming Electrical Properties | ||||
Radiation parameters | Frequency Range (MHz) | 2300-2690(Y3) | ||
2300-2500 | 2500-2690 | |||
Single Column | Horizontal 3dB Beamwidth (°): | 72.3 | 69.2 | |
Gain(dBi): | 15.5 | 15.5 | ||
Vertical 3dB Beamwidth (°): | 6.5 | 6.2 | ||
Cross Polar Ratio 0° (dB): | ≥15 | ≥15 | ||
Front to Back Ratio (dB): | ≥25 | ≥25 | ||
First upper Side lobe suppression (dB) | ≥13 | ≥14 | ||
Broadcast Beam | Horizontal 3dB Beamwidth (°): | 65±10 | 65±10 | |
Gain(dBi): | 16.5±1.0 | 16.5±1.0 | ||
Vertical 3dB Beamwidth (°): | 6.5 | 6.2 | ||
Cross Polar Ratio 0° (dB): | ≥15 | ≥15 | ||
Cross Polar Ratio ±60° (dB): | ≥5 | ≥5 | ||
Front to Back Ratio (dB): | ≥27 | ≥25 | ||
First upper Side lobe suppression (dB) | ≥14 | ≥14 | ||
Service Beam @ 0deg | Gain(dB): | 21±0.5 | 20.8±0.7 | |
Horizontal 3dB Beamwidth (°): | 20.5 | 19.3 | ||
Front to Back Ratio (dB): | ≥30 | ≥28 | ||
Frequency Range (MHz): | 698-960(R1,R2) | 1710-2170(B1,B2) | 2490-2690 (Y1,Y2)
| ||||
698-790 | 790-880 | 880-960 | 1710-1880 | 1880-2025 | 2025-2170 | ||
Gain (dBi): | 14.4±0.5 | 15.1±0.5 | 15.6±0.7 | 16.4±0.5 | 16.6±0.5 | 16.4±0.5 | 16.4±0.7 |
Return Loss (dB): | >14 (VSWR<1.5) | ||||||
Polarization: | ±45° | ||||||
Horizontal 3dB Beamwidth (°): | 69 | 65 | 59 | 58 | 58 | 57 | 58 |
Vertical 3dB Beamwidth (°): | 9.5 | 8.4 | 7.7 | 6.6 | 6.1 | 5.8 | 4.6 |
Electrical Downtilt (°): | 2-12 Independently Continuously Adjustable
| ||||||
Intraband Isolation (dB): | >25 | ||||||
Interband Isolation (dB): | >25 | ||||||
Intermodulation IM3 (dBc): | 250 | 200 | |||||
Impedance (ohm): | <-150 | ||||||
Lightning Protection: | 50 | ||||||
Connector Type: | DC Grounded | ||||||
Intermodulation IM3 (dBc): | 12×4.3-10 Female | ||||||
Mechanical Data | |
Antenna Dimensions (mm): | 2595×448×200 |
Packing Dimensions (mm): | 2855×535×295 |
Antenna Net Weight/Bracket (kg): | 46.5/5.9 |
Antenna Gross Weight (kg): | 59 |
Radome Material: | FRP |
Pipe OD (mm): | 50-115 |
Mounting Kits (Included): | BA.K.04.00069091, Adjustable Downtilt 0°-10° |
Humidity: | 95%RH@+30℃ |
Temperature (℃): | -40～+70 |
Wind Load @150 km/h (N): | Frontal/Lateral/Rearside: 1515 /373/ 1638 |
Max. Wind velocity(km/h): | 200 |
