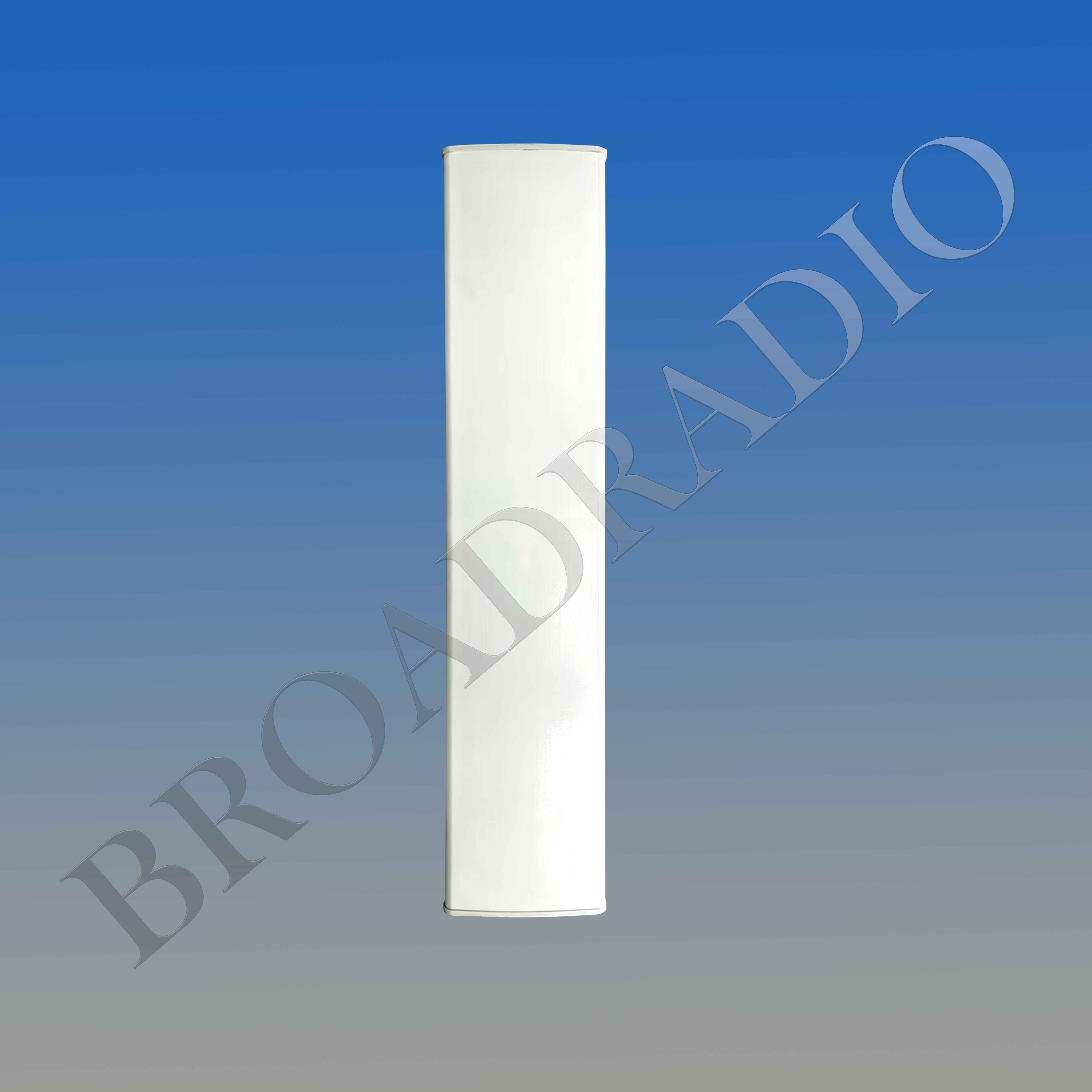

2LB 65° 15/15.5dBi+2.6GHz TDD Antenna

General

Parameters

Frequency Range (MHz) :

2300-2690(Y1)

Polarization:

±45°

Electrical Downtilt (°) :

2-12, continuously adjustable

Lightning Grounding:

DC Grounded

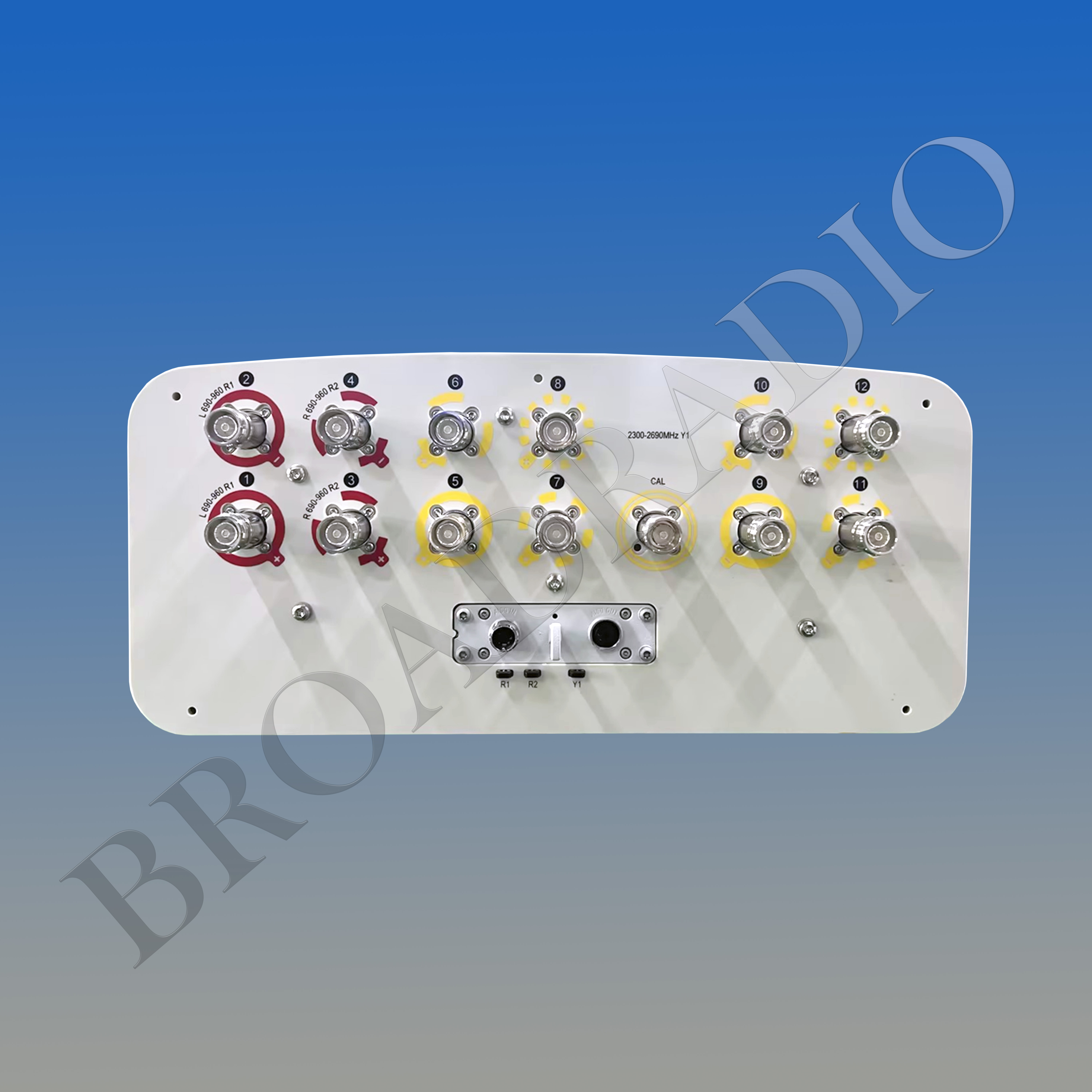

Connecter Type:

9×4.3-10 Female

Female

Calibration and

Electrical

Parameters

Coupling Factor between calibration port and each antenna port (dB) :

-26±2

Max Amp/Phase Deviation:

<1.2dB/12°

VSWR:

<1.5

Max. Power Per Port (W):

150

Intraband Isolation (dB):

>20

Interband Isolation (dB):

>20

Radiation

Parameters

Frequency Range (MHz) :

2300-2690(Y1)

2300-2500

2500-2690

Single Column

Horizontal 3dB Beamwidth (°):

90±15

85±15

Vertical 3dB Beamwidth (°):

6.5±0.5

6±0.4

Front to Back Ratio (dB):

23

24

Gain (dBi):

15.1±0.8

15.5±0.9

Cross Polar Ratio 0° (dB):

>15 (0°)

>15 (0°)

Cross Polar Ratio ±60° (dB):

>4 (±60°)

>4 (±60°)

Broadcast Beam

Gain (dBi):

16.5±0.5

16.9±0.5

Front to Back Ratio (dB):

25

25

Vertical 3dB Beamwidth (°):

6.5±0.5

6±0.4

Cross Polar Ratio 0° (dB):

>15 (0°)

>15 (0°)

First upper Side lobe suppression (dB):

>14

>14

Service Beam @ 0deg

0° Gain (dBi):

20.1±0.5

20.5±0.5

0° Horizontal 3dB Beamwidth (°):

23

23

Cross polar ratio (0°) (dB):

18

18

Front to Back Ratio (dB):

25

25

698-790

790-862

880-960

Gain (dBi):

14.0±0.5

14.5±0.7

14.8±0.7

Return Loss (dB):

>14 (VSWR<1.5)

Polarization:

±45°

Horizontal 3dB Beamwidth (°):

67

62

59

Vertical 3dB Beamwidth (°):

10.3

9.3

8.6

Electrical Downtilt (°):

2-12 Independently Continuously Adjustable

RET Type:

Cascade SRET, AISG 2.0, Upgradeable

1^stUpper Sidelobe Suppression (dB):

14.2

14.1

13.5

Intraband Isolation (dB):

>25

Interband Isolation (dB):

>25

Max. Power Per Port (W):

250

Intermodulation IM3 (dBc):

<-150(2×43 dBm)

Impedance (ohm):

50

Lightning Protection:

DC Grounded

Connector Type:

4×4.3-10 Female

Antenna Dimensions (mm):

2095×448x200

Packing Dimensions (mm):

2355×535×290

Antenna Net Weight/Bracket (kg):

31.5/5.9

Antenna Gross Weight (kg):

42.5

Radome Material:

Fiberglass

Pipe OD (mm):

50-115

Mounting Kits (Included):

BA.K.04.00069121, Adjustable Downtilt0°-14°
