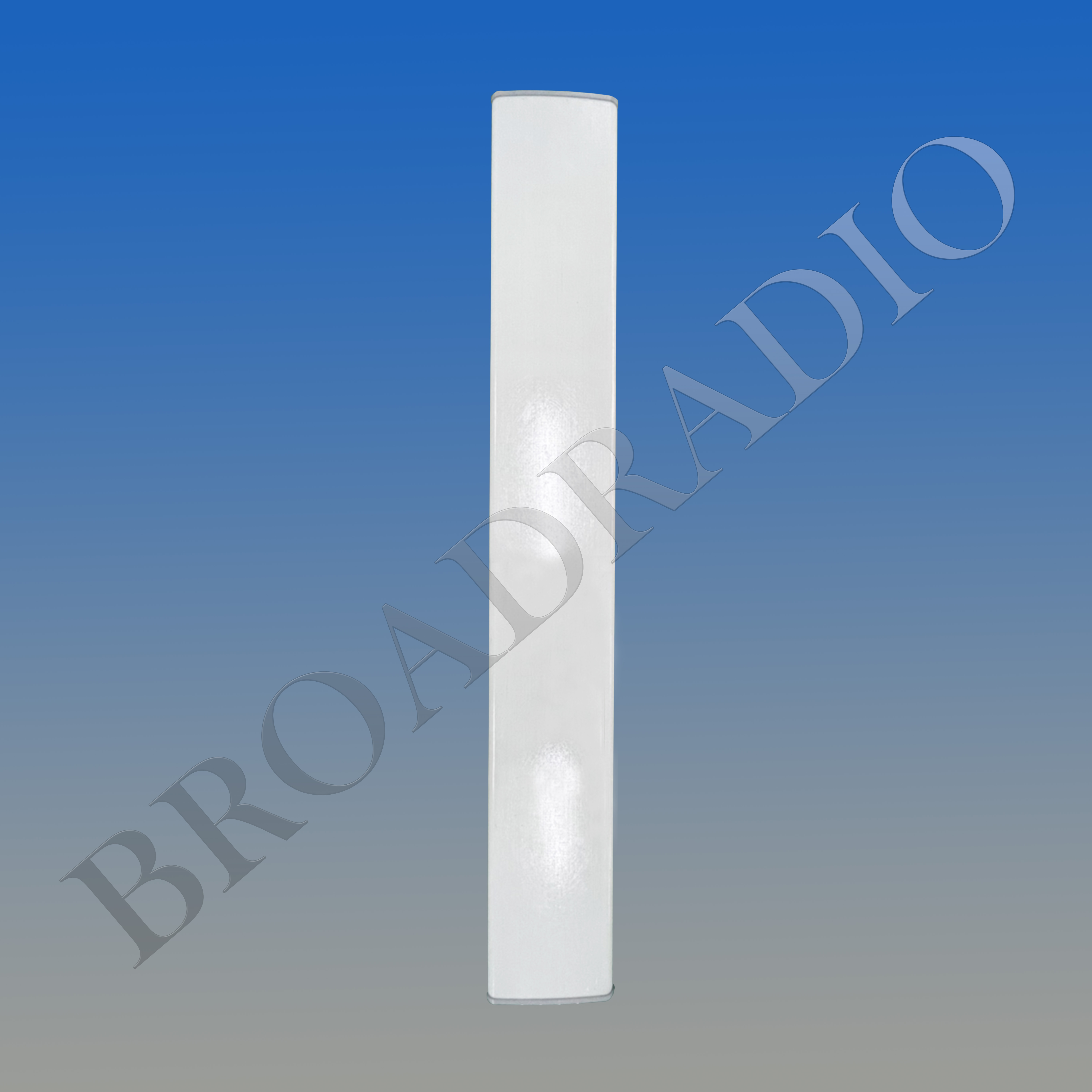

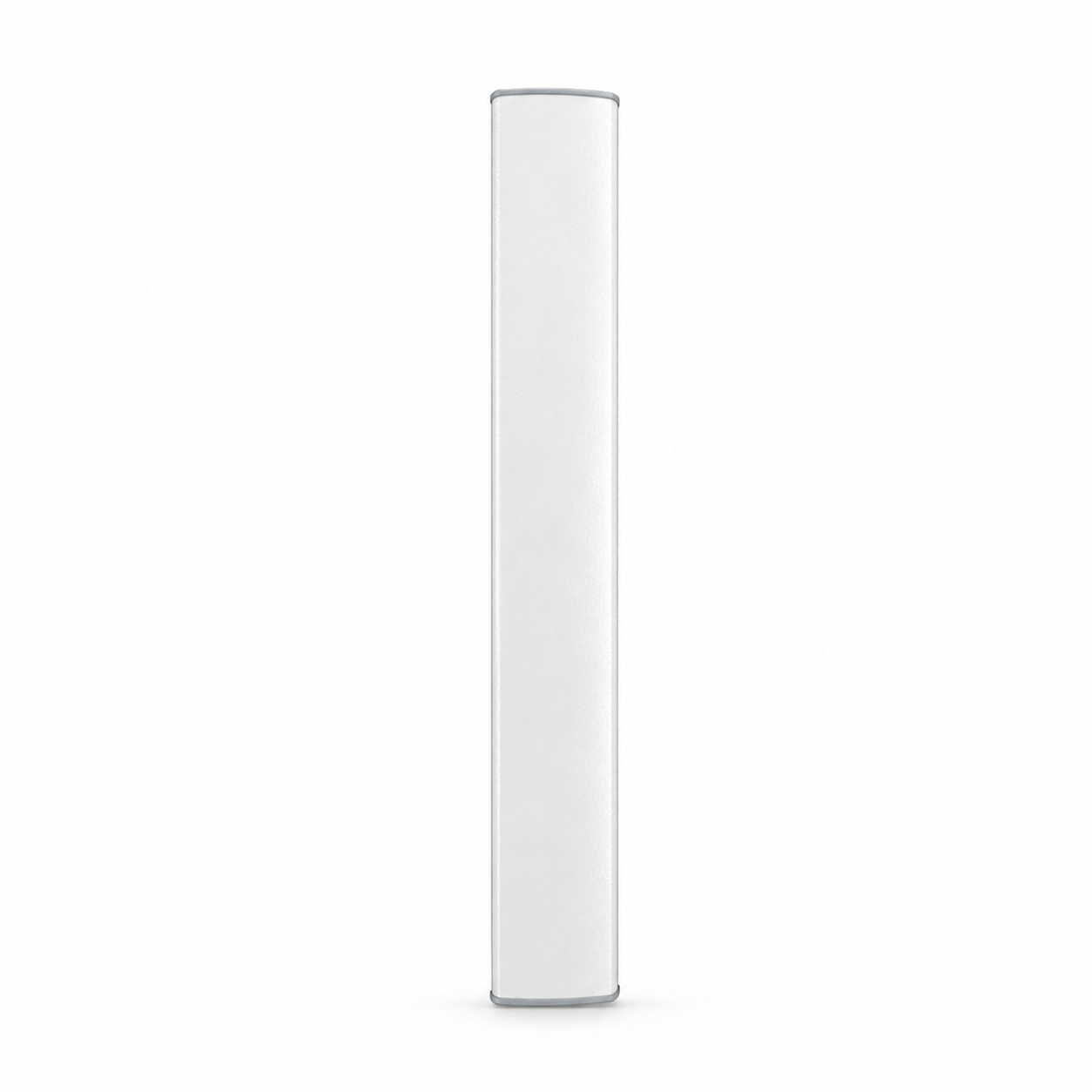

1LB4MB 65° 16/17.5/17dBi Multi-band Antenna

698-806

806-880

880-960

1710-

2170

2300-

2490

2490-

2690

1710-

2170

2300-

2490

2490-

2690

Gain (dBi):

15.2

±0.5

15.7

±0.5

16.0

±0.5

16.4

±0.5

16.9

±0.5

17.2

±0.5

16.0

±0.5

16.4

±0.5

16.7

±0.5

Return Loss (dB):

>14 (VSWR<1.5)

Polarization:

±45°

Horizontal 3dB Beamwidth (°):

70

68

66

68

62

58

68

62

58

Vertical 3dB Beamwidth(°):

11

9.5

8.5

7.5

6.2

5.7

7.5

6.2

5.7

Electrical Downtilt (°):

2-12 Independently Continuously Adjustable

1^st Upper Sidelobe Suppression (dB):

15

15

15

13

13

13

13

13

13

Front to Back Ratio (dB):

22

23

24

25

25

25

25

25

25

Cross Polar Ratio 0°(dB):

15

15

15

15

15

15

15

15

15

Intraband Isolation (dB):

>26

Interband Isolation (dB):

>28

Average power tolerance (W):

250

200

Intermodulation IM3 (dBc):

<-150(2×43 dBm)

Impedance (ohm):

50

Lightning Protection:

DC Grounded

Connector Type:

10×4.3-10 Female

Packing Dimensions (mm):

2660×420×255

Antenna Net Weight/bracket (kg):

26.5/ 5.9

Antenna Gross Weight (kg):

36.5

Radome Material:

Fiberglass

Pipe OD (mm):

50-115

Mounting Kits (Included):

BA.K.04.00069091, Adjustable Downtilt 0-10°
