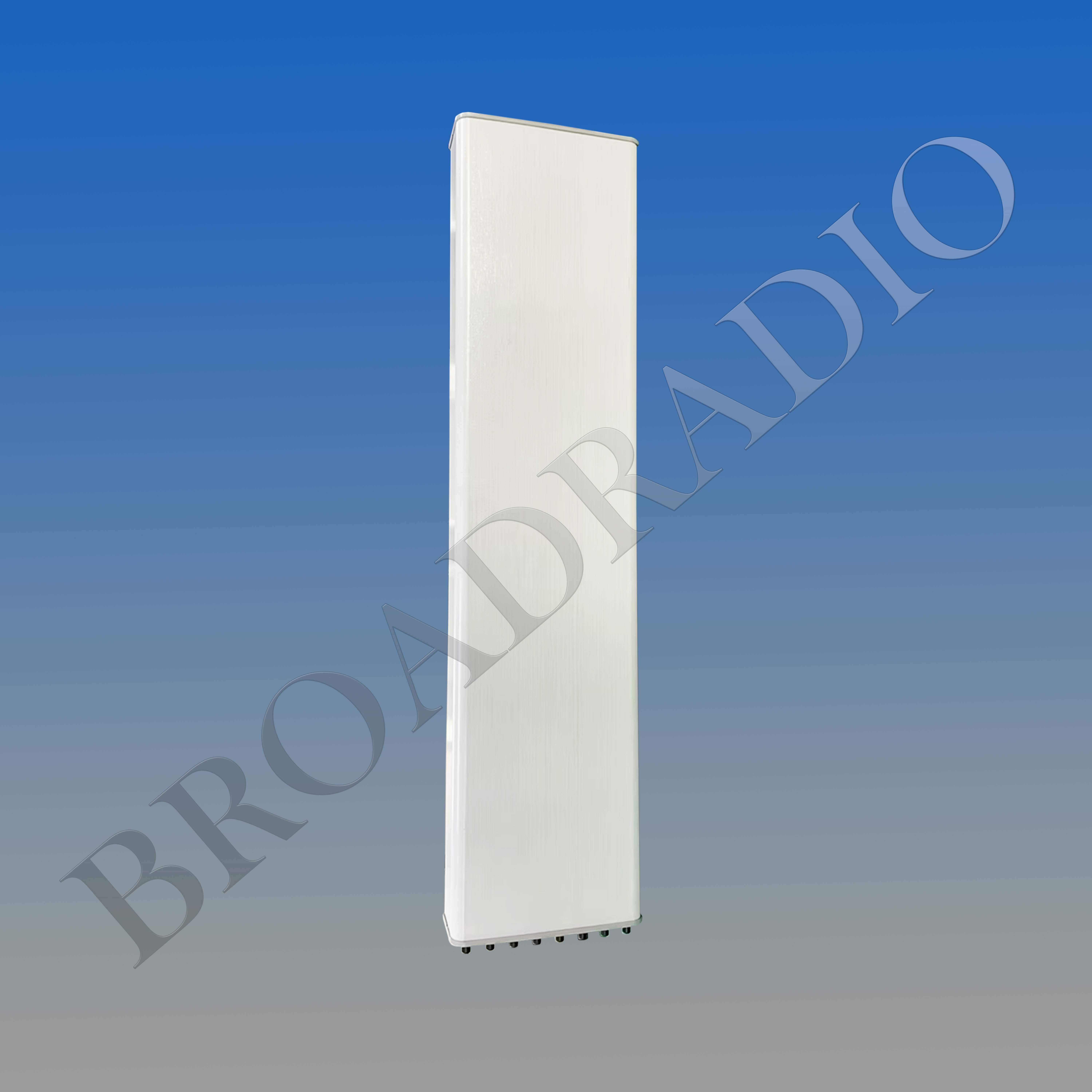

1LB4MB 65° 10/11/10dBi+3.5GHz TDD Antenna
Model: S-SUC2L2PX10.8.10P-2C
General Electrical Properties | |||
General Parameters | Frequency Range (MHz) : | 2300-3800(P1) | |
2300-2690 | 3300-3800 | ||
Polarization: | ±45 | ||
Electrical Downtilt (°) : | 2-12,continuously adjustable | ||
Lightning Grounding: | DC Grounded | ||
Connector Type: | 1×MQ5,1×MQ4 Male | ||
Calibration and Electrical Parameters | Coupling Factor between calibration port and each antenna port (dB) : | -26±2 | |
Max Amp/Phase Deviation: | <1.2dB/12° | ||
VSWR : | <1.5 | ||
Max. Power Per Port (W): | 40 | ||
Intraband Isolation (dB): | >20 | >22 | |
Interband Isolation (dB): | >20 | >22 | |
Beamforming Electrical Properties | ||||
Radiation parameters | Single Column | Frequency Range (MHz) : | 2300-3800(P1) | |
2300-2690 | 3300-3800 | |||
Horizontal 3dB Beamwidth (°): | 92 | 61 | ||
Vertical 3dB Beamwidth (°): | 8.3 | 6.1 | ||
Front to Back Ratio (dB): | >23 | >25 | ||
Gain (dBi): | 14.5 | 15.9 | ||
Cross Polar Ratio 0° (dB): | >18 (0°) | >12 (0°) | ||
Broadcast Beam | Horizontal 3dB Beamwidth (°): | 65 | 60 | |
Gain (dBi): | 16.0 | 16.0 | ||
Front to Back Ratio (dB): | 25 | 25 | ||
Vertical 3dB Beamwidth (°): | 8.3 | 6.1 | ||
Cross Polar Ratio 0° (dB): | >15 (0°) | >15 (0°) | ||
1st upper Side lobe suppression (dB): | >14 | >14 | ||
Service Beam @ 0deg | Gain (dBi): | 19.2 | 19.5 | |
Horizontal 3dB Beamwidth (°): | 25 | 25 | ||
Cross polar ratio (0°) (dB): | 18 | 18 | ||
Front to Back Ratio (dB): | 25 | 25 | ||
Electrical Specifications (698-960/1710-2690 MHz) | |||||||||
Frequency Range (MHz): | 698-960(R1) | 1427-2690(Y2,Y3) | 1710-2690(Y1,Y4) | ||||||
698 -806 | 806 -880 | 880 -960 | 1427 -1518 | 1710 -2170 | 2300 -2690 | 1710 -2170 | 2300 -2490 | 2490 -2690 | |
Gain (dBi): | 14.3 | 14.5 | 14.6 | 14.3 | 16.0 | 17.0 | 16.3 | 17.0 | 17.3 |
Return Loss (dB): | >14 (VSWR<1.5) | ||||||||
Polarization: | ±45° | ||||||||
Horizontal 3dB Beamwidth (°): | 63 | 55 | 60 | 86 | 67 | 62 | 66 | 61 | 56 |
Vertical 3dB Beamwidth (°): | 10.6 | 9.2 | 8.4 | 8.6 | 6.8 | 5.2 | 6.9 | 5.7 | 5.1 |
Electrical Downtilt (°): | 2-12 Independently Continuously Adjustable | ||||||||
1stUpper Sidelobe Suppression (dB): | 15 | 14 | 13 | 11 | 12 | 12 | 13 | 14 | 12 |
Intraband Isolation (dB): | >25 | ||||||||
Interband Isolation (dB): | >25 | >23 | >25 | ||||||
Max. Power Per Port (W): | 250 | 200 | |||||||
Intermodulation IM3 (dBc): | <-150 (2×43dBm) | ||||||||
Impedance (ohm): | 50 | ||||||||
Lightning Protection: | DC Grounded | ||||||||

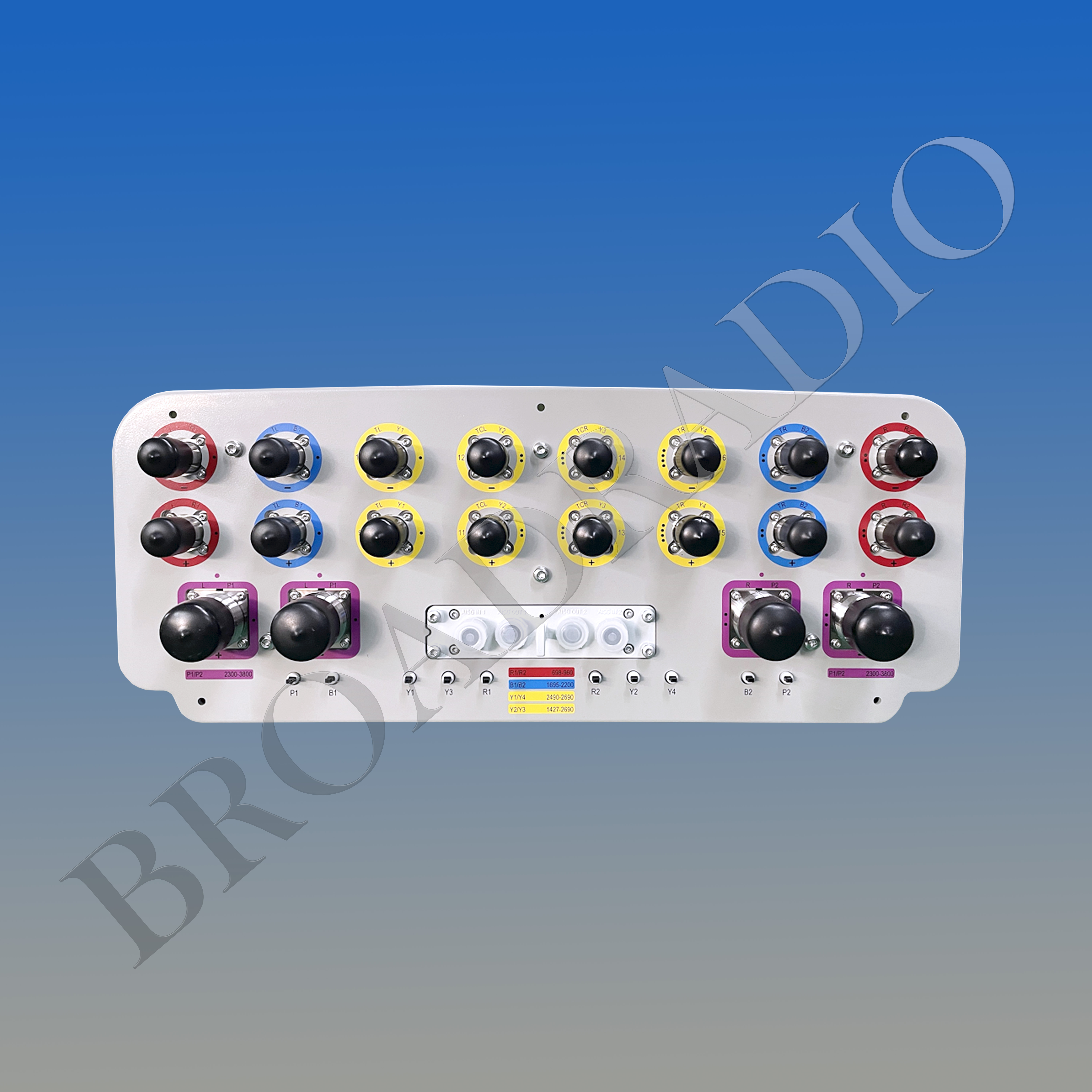

Connector Type: | 10×4.3-10 Female | ||||||||
Mechanical Data
Antenna Dimensions (mm): | 2095×498×197 |
Packing Dimensions (mm): | 2360×580×285 |
Antenna Net Weight/Bracket (kg): | 38/5.9 |
Antenna Gross Weight (kg): | 50 |
Radome Material: | Fiberglass |
Pipe OD (mm): | 50-115 |
Mounting Kits (Included): | BA.K.04.00069321,Adjustable Downtilt 0-12° |
