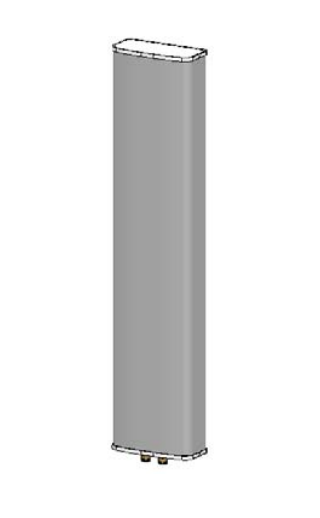

16dBi 2.6GHz TDD Antenna

General

Parameters

Frequency Range (MHz)

2300-2400(Y1)

2500-2690(Y1)

Polarization

±45

Electrical Downtilt (°)

2-12, continuously adjustable

Lightning Grounding

DC Grounded

Calibration and

Electrical

Parameters

Coupling Factor between calibration port and each antenna port (dB)

-26±2

Max Amp/Phase Deviation:

≤0.8/7°

VSWR:

≤1.5

Co- polarization Isolation between ports (dB):

≥20

Cross-polarization Isolation Between Ports (dB):

≥25

Avg. power per input(W)

≥50

Radiation

parameters

Frequency Range (MHz)

2300-2400(Y1)

2500-2690(Y1)

Single Column

Horizontal 3dB Beamwidth (°):

80±20

72±15

Gain(dBi):

15.2±1.0

15.4±1.0

Vertical 3dB Beamwidth (°):

5.9

5.2

Cross Polar Ratio 0° (dB):

≥17

≥17

Front to Back Ratio (dB):

≥22

≥22

First upper Side lobe suppression (dB)

≥14

≥14

    Broadcast Beam

Gain(dBi):

20.8±1.0

21.0±1.0

Horizontal 3dB Beamwidth (°):

65±15

65±15

Vertical 3dB Beamwidth (°):

5.9

5.3

Front to Back Ratio (dB):

≥26

≥26

First upper Side lobe suppression (dB)

≥15

≥15

Service Beam @ 0deg

Gain(dB):

20.8±1.0

21.0±1.0

Horizontal 3dB Beamwidth (°):

22

20

Horizontal sidelobe level (°):

≤-11

≤-11

Cross Polar Ratio 0° (dB):

≥20

≥20

Front to Back Ratio (dB):

≥25

≥25

Service Beam@ ±60deg

Gain(dB):

16.8±0.5

17.5±0.5

Horizontal 3dB Beamwidth (°):

26

24

Horizontal sidelobe level (°):

≤0

≤0

Antenna Dimensions (mm):

1500×320x140

Packing Dimensions (mm):

1760×405×230

Antenna Net Weight/Bracket (kg):

19/5.9

Antenna Gross Weight (kg):

29

Connecter Type:

1×MQ4, 1×MQ5

Radome Material:

Fiberglass

Pipe OD (mm):

50-115

Mounting Kits (Included):

BA.K.04.00069351, Adjustable Downtilt 0°-16°

Humidity:

95%RH@+30℃

Temperature (℃):

-40～+70

Wind Load @150 km/h (N):

Frontal/Lateral/Rearside:549/146/747

Max. Wind velocity(km/h)

200
