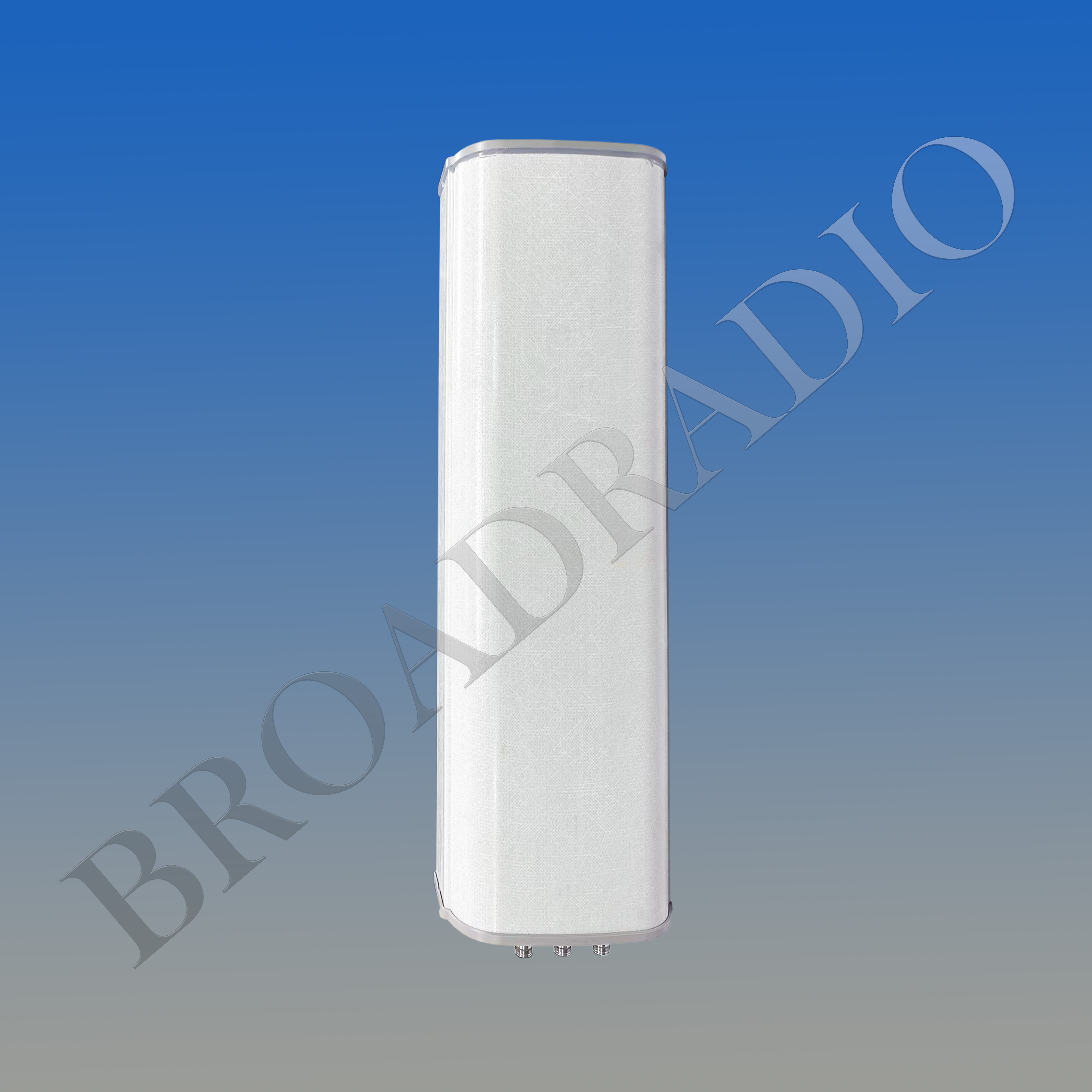

14.5dBi 4.8GHz TDD Antenna

Electrical Downtilt (°):

2-12

Electrical Downtilt Accuracy(°):

±1.5

Lightning Protection:

DC Grounded

Calibration and

electrical

parameters

Coupling Factor Between Calibration Port And Each Antenna Port (dB):

-26±2

Max Amp (dB):

≤1.0

Phase Deviation (°):

≤12

VSWR:

≤1.5

Average Power Per Port (W):

≥80

Co-polarization isolation between ports (dB) :

≥20

Cross-polarization isolation between ports (dB) :

≥23

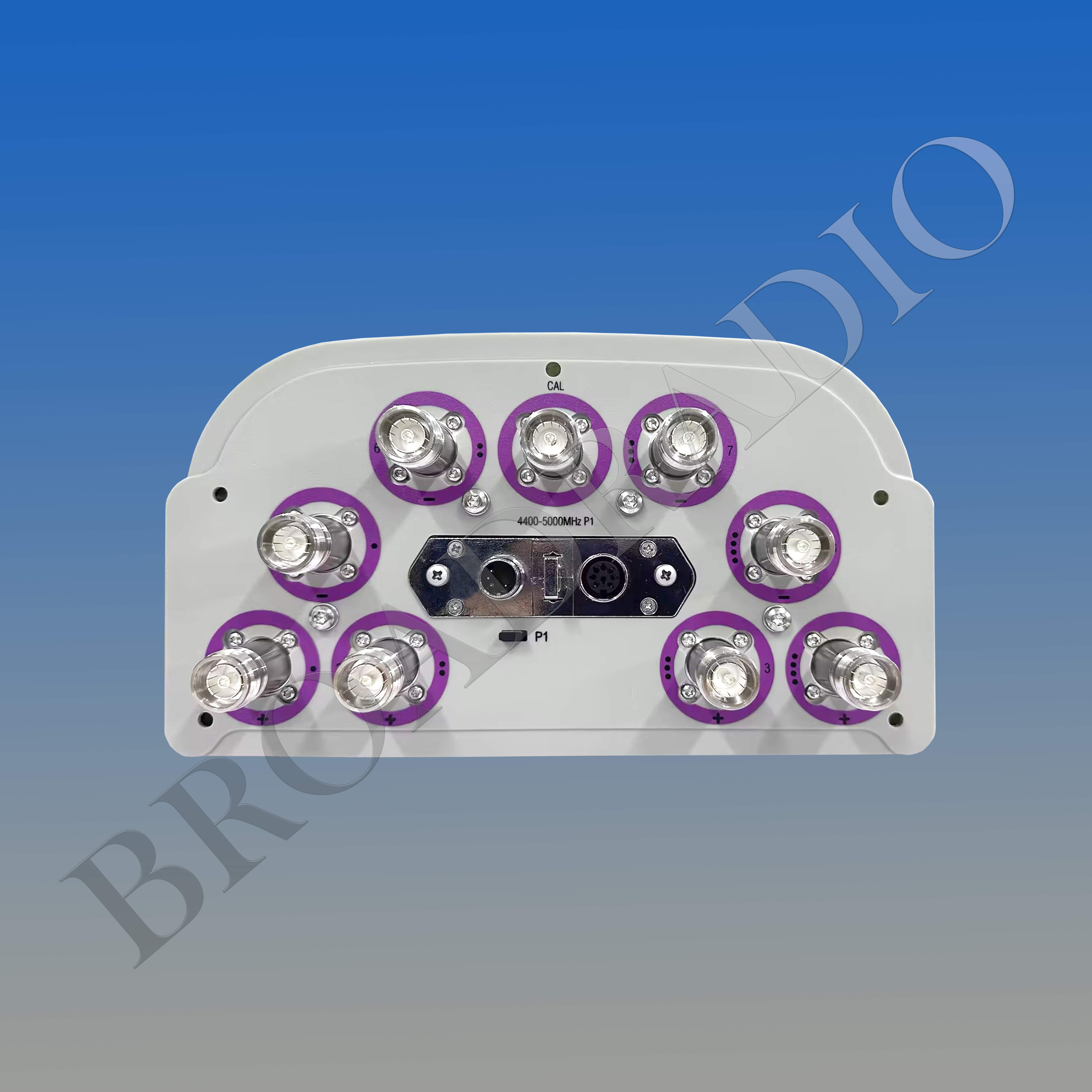

Connector Type:

9x4.3-10 Female

Single Column

Horizontal 3dB beamwidth (°):

90±10

Vertical 3dB beamwidth (°):

≥5.5

Gain (dBi):

14.2±1.0

Cross Polar Ratio 0° (dB):

≥15

Cross Polar Ratio ±60° (dB):

≥8

Front to Back Ratio (dB):

≥23

Upper Sidelobe Suppression (dB):

14

Broadcast Beam

Horizontal 3dB beamwidth (°):

65±10

Gain (dBi):

15.7±0.5

Vertical 3dB Beamwidth (°):

≥5.5

Front to Back Ratio (dB):

≥25

Upper Sidelobe Suppression (dB):

14

Service Beam @ 0deg

Gain (dBi):

19.2±0.5

Horizontal 3dB beamwidth (°):

25

0Horizontal Sidelobe Level(dB):

≤-12

Cross Polar Ratio 0° (dB):

≥15

Front to Back Ratio (dB):

≥25

Packing Dimensions (mm):

1125×355×235

Antenna Net Weight/Bracket (kg):

9.3 / 3.65

Antenna Gross Weight (kg):

14.9

Radome Material:

 Fiberglass

Pipe OD (mm):

50-115

Mounting Kits (Included):

BA.K.04.00069501, Adjustable Downtilt 0-30°
