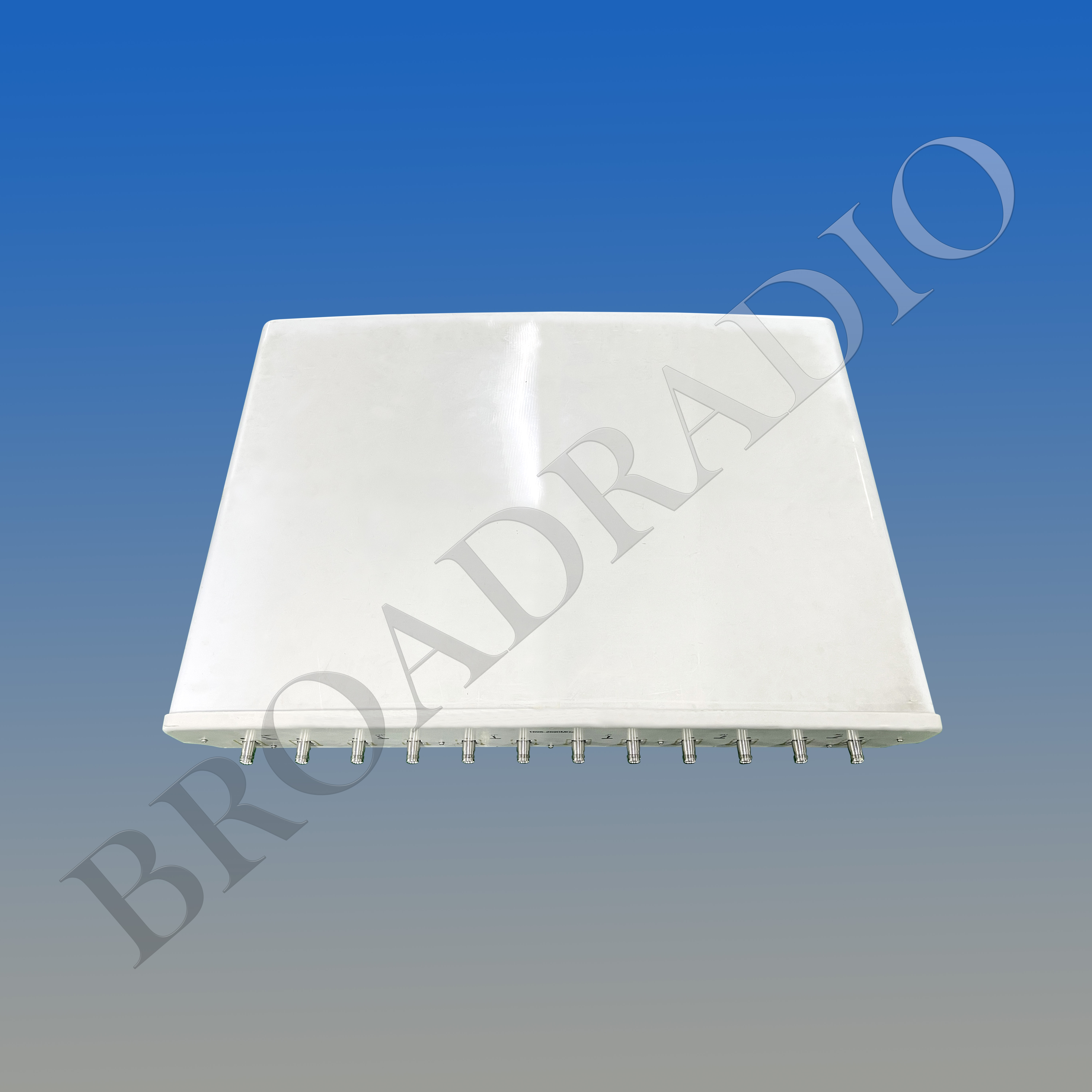

6MB 8° 23dBi Hexa Beam Antenna
Model: 6LPX1406F6-V2-C
Electrical Specifications
Frequency Range (MHz): | Beam 1 (Port 1/2) | |||||
1695-1880 | 1880-2025 | 2025-2300 | 2300-2450 | 2450-2550 | 2550-2690 | |
Gain (dBi): | 18.7±1.7 | 20.0±0.6 | 20.8±0.6 | 21.4±0.6 | 21.3±0.6 | 21.0±0.4 |
Horizontal 3dB Beamwidth (°): | 13.2±2.2 | 11.6±1.2 | 9.8±1.1 | 8.4±1.0 | 8.1±0.6 | 7.4±0.4 |
Vertical 3dB Beamwidth (°): | 14.0±1.3 | 13.5±2.7 | 12.1±1.0 | 10.7±0.7 | 10.0±1.6 | 9.9±0.5 |
Horizontal Beam Pointing (°): | 46 | 42 | 37 | 33 | 31 | 29 |
Electrical Downtilt (°): | 6.0 Fixed | |||||
1st Upper Sidelobe Suppression (dB): | 20 | 19 | 18 | 17 | 16 | 18 |
Front to Back Ratio (dB): | 28 | 28 | 28 | 28 | 28 | 28 |
CPR at boresight (dB): | 15 | |||||
Frequency Range (MHz): | Beam 2 (Port 3/4) | |||||
1695-1880 | 1880-2025 | 2025-2300 | 2300-2450 | 2450-2550 | 2550-2690 | |
Gain (dBi): | 20.5±0.7 | 21.2±0.4 | 21.5±0.6 | 21.5±0.4 | 21.5±0.8 | 21.6±0.4 |
Horizontal 3dB Beamwidth (°): | 10.3±1.0 | 9.4±0.6 | 8.4±1.0 | 7.5±0.5 | 7.4±0.7 | 6.9±0.3 |
Vertical 3dB Beamwidth (°): | 14.3±1.0 | 13.4±0.9 | 12.0±0.8 | 10.8±1.0 | 10.3±0.5 | 9.8±0.5 |
Horizontal Beam Pointing (°): | 26 | 24 | 21 | 19 | 18 | 17 |
Electrical Downtilt (°): | 6.0 Fixed | |||||
1st Upper Sidelobe Suppression (dB): | 19 | 19 | 18 | 17 | 17 | 16 |
Front to Back Ratio (dB): | 28 | 28 | 28 | 28 | 28 | 28 |
CPR at Boresight (dB): | 15 | |||||
Frequency Range (MHz): | Beam 3 (Port 5/6) | |||||
1695-1880 | 1880-2025 | 2025-2300 | 2300-2450 | 2450-2550 | 2550-2690 | |
Gain (dBi): | 21.0±0.4 | 21.1±0.4 | 21.5±0.6 3 | 21.6±0.4 | 21.6±0.5 | 21.8±0.4 |
Horizontal 3dB Beamwidth (°): | 9.5±0.9 | 8.7±0.7 | 7.9±0.3 | 7.2±1.0 | 6.9±0.3 | 6.6±0.6 |
Vertical 3dB Beamwidth (°): | 14.6±1.4 | 13.6±1.0 | 12.1±0.5 | 11.0±0.7 | 10.4±0.6 | 9.8±0.6 |
Horizontal Beam Pointing (°): | 8 | 7 | 6 | 6 | 5 | 5 |
Electrical Downtilt (°): | 6.0 Fixed | |||||
1st Upper Sidelobe Suppression (dB): | 19 | 18 | 18 | 17 | 17 | 17 |
Front to Back Ratio (dB): | 28 | 28 | 28 | 28 | 28 | 28 |
CPR at Boresight (dB): | 15 | |||||
Frequency Range (MHz): | Beam 4 (Port 7/8) | |||||
1695-1880 | 1880-2025 | 2025-2300 | 2300-2450 | 2450-2550 | 2550-2690 | |
Gain (dBi): | 21.0±0.4 | 21.1±0.4 | 21.5±0.6 3 | 21.6±0.4 | 21.6±0.5 | 21.8±0.4 |
Horizontal 3dB Beamwidth (°): | 9.4±0.9 | 8.7±0.6 | 7.9±0.3 | 7.2±0.6 | 6.9±0.2 | 6.6±0.6 |
Vertical 3dB Beamwidth (°): | 14.7±1.1 | 13.6±1.0 | 12.1±0.9 | 10.9±0.5 | 10.3±0.8 | 9.7±0.6 |
Horizontal Beam Pointing (°): | -8 | -7 | -6 | -6 | -5 | -5 |
Electrical Downtilt (°): | 6.0 Fixed | |||||
1st Upper Sidelobe Suppression (dB): | 19 | 19 | 18 | 18 | 17
| 15 |
Front to Back Ratio (dB): | 28 | 28 | 28 | 28 | 28 | 28 |
CPR at Boresight (dB): | 15 | |||||
Frequency Range (MHz): | Beam 5 (Port9/10) | |||||
1695-1880 | 1880-2025 | 2025-2300 | 2300-2450 | 2450-2550 | 2550-2690 | |
Gain (dBi): | 20.5±0.7 | 21.2±0.4 | 21.5±0.6 | 21.5±0.4 | 21.5±0.8 | 21.6±0.4 |
Horizontal 3dB Beamwidth (°): | 10.2±0.8 | 9.3±0.8 | 8.4±0.7 | 7.5±0.7 | 7.3±0.2 | 6.9±0.6 |
Vertical 3dB Beamwidth (°): | 14.8±1.4 | 13.9±0.8 | 12.3±1.1 | 10.9±0.7 | 10.5±0.5 | 9.8±1.1 |
Horizontal Beam Pointing (°): | -26 | -24 | -21 | -19 | -18 | -17 |
Electrical Downtilt (°): | 6.0 Fixed | |||||
1st Upper Sidelobe Suppression (dB): | 19 | 19 | 18 | 17 | 17 | 16 |
Front to Back Ratio (dB): | 28 | 28 | 28 | 28 | 28 | 28 |
CPR at Boresight (dB): | 15 | |||||
Frequency Range (MHz): | Beam 6 (Port11/12) | |||||
1695-1880 | 1880-2025 | 2025-2300 | 2300-2450 | 2450-2550 | 2550-2690 | |
Gain (dBi): | 18.7±1.9 | 19.8±0.6 | 21.0±0.5 | 21.0±0.5 | 21.5±0.7 | 21.2±0.4 |
Horizontal 3dB Beamwidth (°): | 13.4±2.7 | 11.7±1.1 | 9.8±1.4 | 8.4±1.0 | 8.1±0.8 | 7.5±0.4 |
Vertical 3dB Beamwidth (°): | 14.1±1.2 | 13.7±2.3 | 12.2±0.9 | 10.8±1.1 | 10.1±1.5 | 9.9±0.6 |
Horizontal Beam Pointing (°): | -46 | -42 | -37 | -33 | -31 | -29 |
Electrical Downtilt (°): | 6.0 Fixed | |||||
1st Upper Sidelobe Suppression (dB): | 15 | 16 | 17 | 15 | 15 | 16 |
Front to Back Ratio (dB): | 28 | 28 | 28 | 28 | 28 | 28 |
CPR at Boresight (dB): | 15 | |||||
Frequency Range (MHz): | All Beams (Port 1 to 12) |
1695-2690 | |
Return Loss (dB): | >14 (VSWR<1.5) |
Polarization: | ±45° |
Cross Polar Isolation (dB): | >25 |
Beam to beam Isolation(dB): | >16 |
Max. Power Per Port (W): | 200 |
Total Power for the Antenna(W): | 800 |
Intermodulation IM3 (dBc): | <-150 (2×43 dBm) |
Impedance (ohm): | 50 |
Lightning Protection: | DC Grounded |

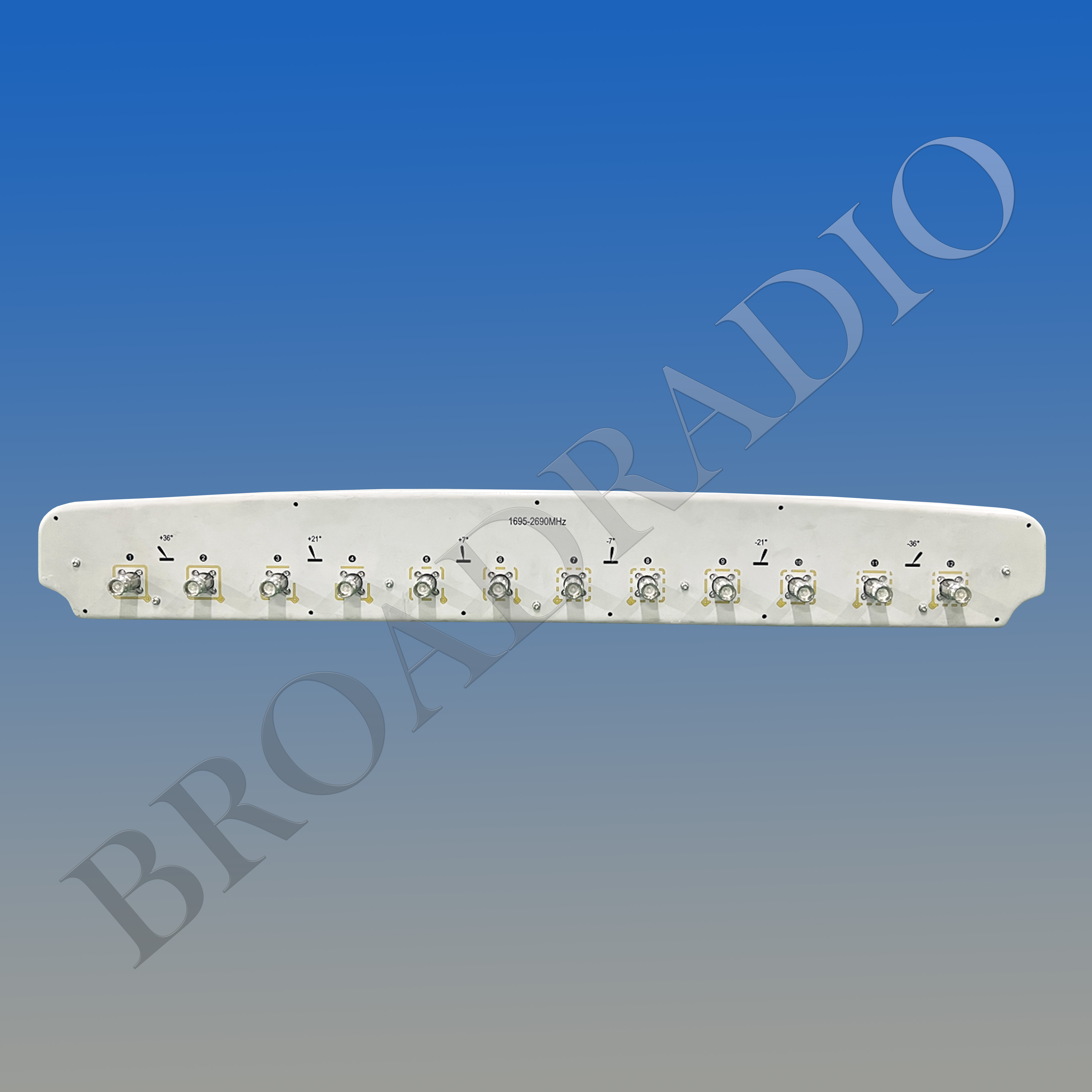

Connector Type: | 12×4.3-10 Female |
Mechanical Data
Antenna Dimensions (mm): | 761×1076×136 |
Packing Dimensions (mm): | 909×1199×237 |
Antenna Net Weight/Bracket (kg): | 26 /5.8 |
Antenna Gross Weight (kg): | 38 |
Radome Material: | Fiberglass |
Pipe OD (mm): | 70-114 |
Mounting Kits (Included): | BA.K.04.00055, Adjustable Downtilt 0°-10° |
