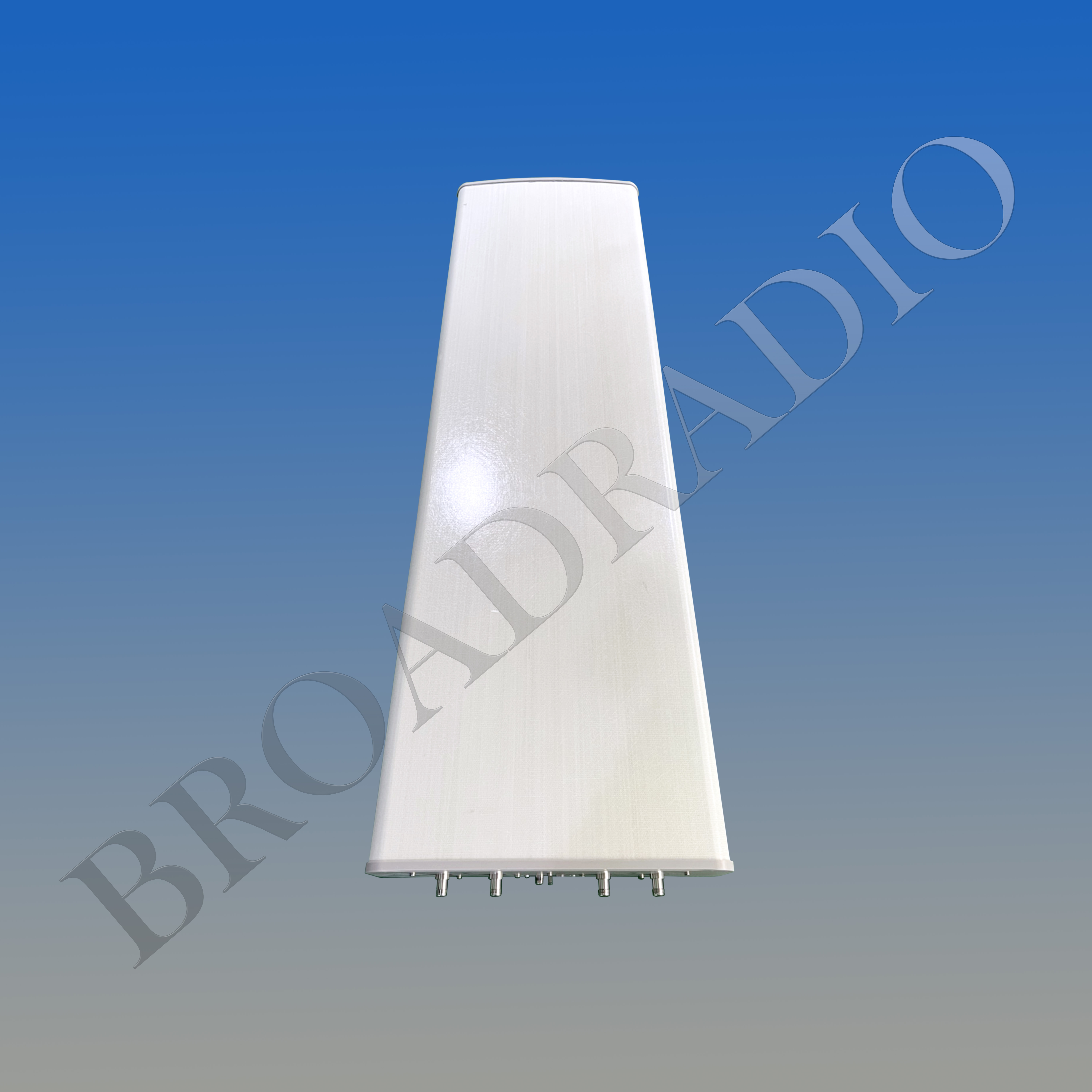

2LB 35° 18dBi Dual Beam Antenna
Model: 2UPX0307P-C
Electrical Specifications
Frequency Range (MHz): | 698-960(R1,R2) | ||
698-806 | 806-880 | 880-960 | |
Gain (dBi): | 17.0 | 17.5 | 18.0 |
Return Loss (dB): | >14 (VSWR<1.5) | ||
Polarization: | ±45° | ||
Horizontal 3dB beamwidth (°): | 2×39 | 2×38 | 2×35 |
Horizontal Beam Pointing (°): | -31, +31 | -28, +28 | -25, +25 |
Vertical 3dB beamwidth (°): | 10 | 9 | 8 |
Electrical Downtilt (°): | 0-10, Independently Continuously Adjustable | ||
Cross Polar Isolation (dB): | >25 | ||
Max. Power Per Port (W): | 250 | ||
Intermodulation IM3 (dBc): | <-153 (2×43 dBm) | ||
Impedance (ohm): | 50 | ||
Lightning Protection: | DC Grounded | ||

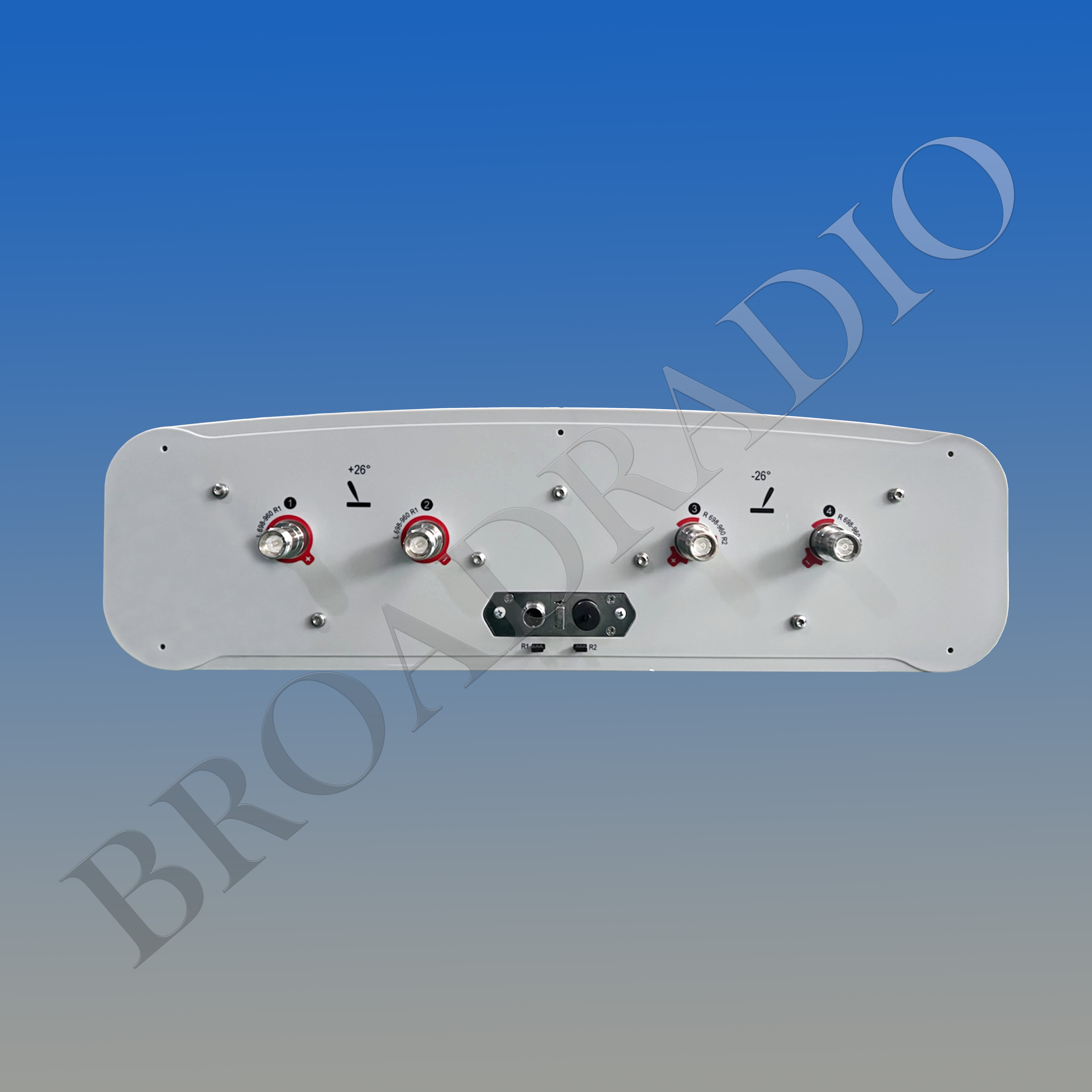

Connector Type: | 4×4.3-10 Female | ||
Mechanical Data
Antenna Dimensions (mm): | 2000×598×169 |
Packing Dimensions (mm): | 2260×680×260 |
Antenna Net Weight/Bracket (kg): | 30.5/5.9 |
Antenna Gross Weight (kg): | 42.5 |
Radome Material: | Fiberglass |
Pipe OD (mm): | 50-115 |
Mounting Kits (Included): | BA.K.04.00069121, Adjustable Downtilt 0°-14° |
