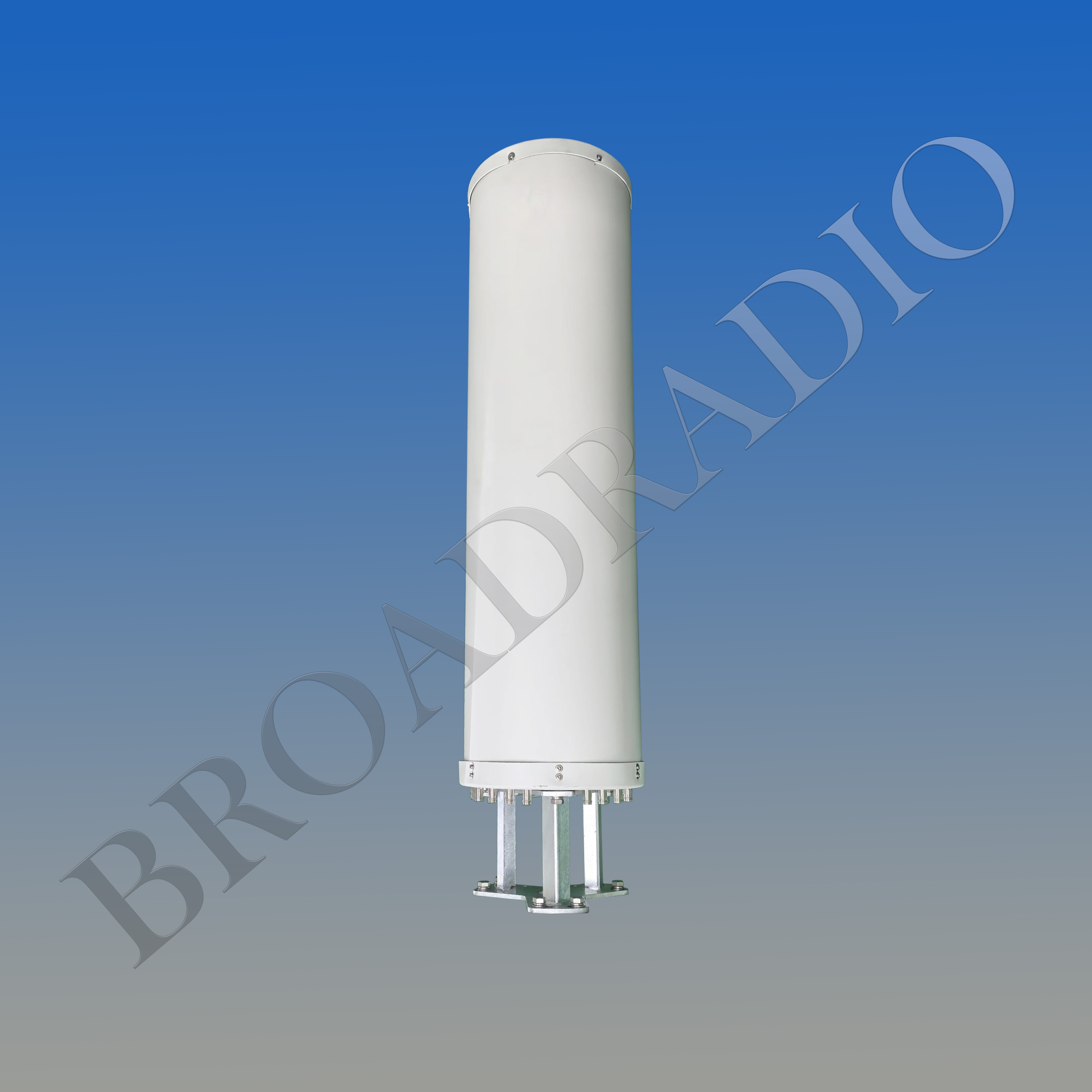

3×1LB2MB 65° 14/18dBi Tube Antenna
Model: 3UL2OX305.10P3-2C
Electrical Specifications
Frequency Range (MHz): | 3×698-960(R1) | 6×1710-2690 (Y1,Y2) | ||||
698-806 | 806-880 | 880-960 | 1710-2170 | 2300-2490 | 2490-2690 | |
Gain (dBi), | 13.3±0.5 | 13.7±0.5 | 14.2±0.5 | 16.8±0.8 | 17.4±0.5 | 17.7±0.5 |
Return Loss (dB): | >14 (VSWR<1.5) | |||||
Polarization : | ±45° | |||||
Horizontal 3dB Beamwidth (°): | 74 | 72 | 69 | 67 | 60 | 58 |
Vertical 3dB Beamwidth (°), | 15.0 | 13.5 | 12.5 | 7.0 | 5.5 | 5.0 |
Electrical Downtilt (°): | 2-16 | 2-12 | ||||
RET Type: | RET Cascade SRET, AISG 2.0 ,Upgradeable | |||||
1st Upper Sidelobe Suppression (dB): | 15 | 15 | 15 | 15 | 15 | 15 |
Front to Back Ratio 180±300(dB): | 22 | 23 | 23 | 25 | 25 | 25 |
Cross Polar Ratio 0° (dB) | 15 | 15 | 15 | 15 | 15 | 15 |
Intraband Isolation (dB): | ≥25 | ≥25 | ||||
Interband Isolation (dB): | ≥25 | |||||
Max. Power Per Port (W): | 250 | 200 | ||||
Intermodulation IM3 (dBc): | <-150 (2×43 dBm) | |||||
Impedance (ohm): | 50 | |||||
Lightning Protection: | DC Grounded | |||||
Connector Type: | 18×4.3-10 Female | |||||
Mechanical Data
Antenna Dimensions (mm): | Φ400(Diameter)×1450(Length, mounting base excluded ) |
Packing Dimensions (mm): | 1840(Length)×485(Width)×490(Height) |
Antenna Net Weight (kg)/ Base(kg): | 35.5 / 8.5 |
Antenna Gross Weight (kg): | 51 |
Radome Material: | ASA/ABS |
Mounting Kits (Included): | Flange Mounted |
