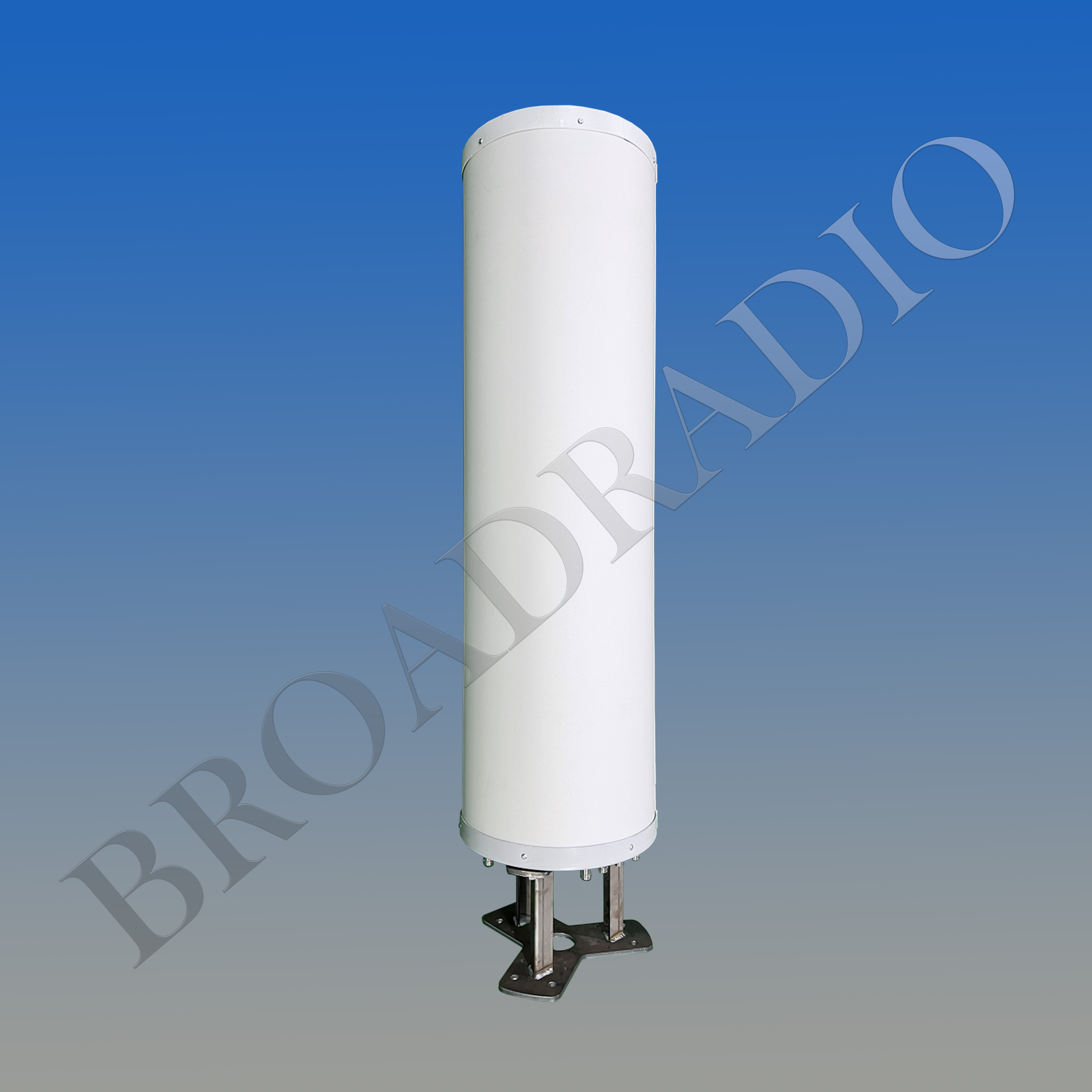

3×1LB1MB 65° 14/18dBi Tube Antenna
Model: 3ULOX304.8F0-C
Electrical Specifications
Frequency Range (MHz): | 3×698-960(R1) | 3×1710-2690 (Y1) | ||||
698-806 | 806-880 | 880-960 | 1710-2170 | 2300-2490 | 2490-2690 | |
Gain (dBi): | 13.3±0.5 | 13.5±0.5 | 14.0±0.5 | 16.4±0.5 | 17.4±0.5 | 17.8±0.5 |
Return Loss (dB): | >14 (VSWR<1.5) | |||||
Polarization (°): | ±45° | |||||
Horizontal 3dB Beamwidth (°): | 78 | 75 | 73 | 63 | 68 | 62 |
Vertical 3dB Beamwidth (°): | 17.0 | 15.0 | 13.5 | 8.8 | 6.5 | 6.2 |
Electrical Downtilt (°): | 0°FET | 0°FET | ||||
1st Upper Sidelobe Suppression (dB): | ≥15 | ≥15 | ≥15 | ≥15 | ≥15 | ≥15 |
Front to Back Ratio 180±30°(dB): | ≥21 | ≥22 | ≥22 | ≥25 | ≥25 | ≥25 |
Cross Polar Ratio 0° (dB): | ≥15 | ≥15 | ≥15 | ≥15 | ≥15 | ≥15 |
Intraband Isolation (dB): | ≥25 | ≥25 | ||||
Max. Power Per Port (W): | 250 | 200 | ||||
Intermodulation IM3 (dBc): | <-140 (2×43 dBm) | |||||
Impedance (ohm): | 50 | |||||
Lightning Protection: | DC Grounded | |||||
Connector Type: | 12×4.3-10 Female | |||||
Mechanical Data
Antenna Dimensions (mm): | Φ400(Diameter)×1400(Length, mounting base excluded ) |
Packing Dimensions (mm): | 1790(Length)×485(Width)×490(Height) |
Antenna Net Weight (kg)/Base(kg): | 27/ 10 |
Antenna Gross Weight (kg): | 42 |
Radome Material: | ABS/ASA |
Mounting Kits (Included): | Flange Mounted |
