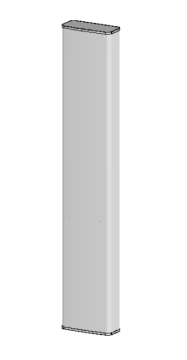

2LB4MB 65° 16/17.5dBi Multi-band Antenna
Model: U2L4PX310P-2C
Electrical Specifications
Frequency Range (MHz): | 698-960(R1,R2) | 1710-2690(Y1,Y2,Y3,Y4) | ||||
698-806 | 806-880 | 880-960 | 1710-2170 | 2300-2490 | 2490-2690 | |
Gain (dBi): | 15.4±0.5 | 15.7±0.5 | 16.0±0.5 | 16.6±0.5 | 17.2±0.5 | 17.5±0.5 |
Return Loss (dB): | >14 (VSWR<1.5) | |||||
Polarization: | ±45° | |||||
Horizontal 3dB Beamwidth (°): | 68 | 65 | 60 | 68 | 65 | 58 |
Vertical 3dB Beamwidth(°): | 8.5 | 7.5 | 6.5 | 7.5 | 6.0 | 5.5 |
Electrical Downtilt (°): | 2-12 Independently Continuously Adjustable 2-12 Independently | |||||
1st Upper Sidelobe Suppression (dB): | 15 | 15 | 15 | 15 | 15 | 15 |
Front to Back Ratio (dB): | 22 | 23 | 24 | 25 | 25 | 25 |
Cross Polar Ratio 0°(dB): | 15 | 15 | 15 | 15 | 15 | 15 |
Intraband Isolation (dB): | >25 | |||||
Interband Isolation (dB): | >25 | |||||
Average Power Tolerance (W): | 250 | 200 | ||||
Intermodulation IM3 (dBc): | <-153 (2×43 dBm) | |||||
Impedance (ohm): | 50 | |||||
Lightning Protection: | DC Grounded | |||||
Connector Type: | 12×4.3-10 Female | |||||
Mechanical Data
Antenna Dimensions (mm): | 2600×469×200 |
Packing Dimensions (mm): | 2820×555×290 |
Antenna Net Weight/bracket (kg): | 40.5/ 5.7 |
Antenna Gross Weight (kg): | 53.5 |
Radome Material: | Fiberglass |
Pipe OD (mm): | 70-115 |
Mounting Kits (Included): | BA.K.04.00069491, Adjustable Downtilt 0°-8°in 1°steps |
