1LB4MB 65°/65°/32° 14.5/16/17.5dBi Hybrid Antenna
Model: ULL2WPX306.206P2-2C
Electrical Specifications
Frequency Range (MHz): | 698-960(R1) | 1710-2690(Y1,Y2) | 1710-2170(B1,B2)(Dual beam) | ||||||
698 -806 | 806 -880 | 880 -960 | 1710 -1880 | 1880 -2170 | 2300 -2690 | 1710 -1880 | 1880 -2025 | 2025 -2170 | |
Gain (dBi): | 13.5 ±0.5 | 13.8 ±0.5 | 14.1 ±0.5 | 14.8 ±0.5 | 15.0 ±0.5 | 16.0 ±0.5 | 16.0 ±0.5 | 16.3 ±0.5 | 17.1 ±0.5 |
Return Loss (dB): | >14 (VSWR<1.5) | ||||||||
Polarization: | ±45° | ||||||||
Horizontal Beam Pointing (°): | / | ±29 | ±27 | ±24 | |||||
Horizontal 3dB Beamwidth (°): | 73 | 69 | 68 | 58 | 60 | 62 | 35 | 33 | 31 |
Vertical 3dB Beamwidth (°): | 16.5 | 14.7 | 13.5 | 14.2 | 13.1 | 9.9 | 12.7 | 11.8 | 11.1 |
Electrical Downtilt (°): | 2-12 Independently Continuously Adjustable | ||||||||
1st Upper Sidelobe Suppression (dB): | 15 | 15 | 15 | 15 | 15 | 14 | 15 | 15 | 15 |
Front to Back Ratio (dB): | 23 | 24 | 24 | 25 | 25 | 25 | 25 | 25 | 25 |
Polarization Isolation (dB): | >25 | ||||||||
Interband Isolation (dB): | >25(R1//Y1//Y2//B1,B2) | ||||||||
Beam Isolation(dB): | / | / | >16 | ||||||
Max. Power Per Port (W): | 250 | 200 | |||||||
Intermodulation IM3 (dBc): | <-150 (2×43 dBm) | ||||||||
Impedance (ohm): | 50 | ||||||||
Lightning Protection: | DC Grounded | ||||||||

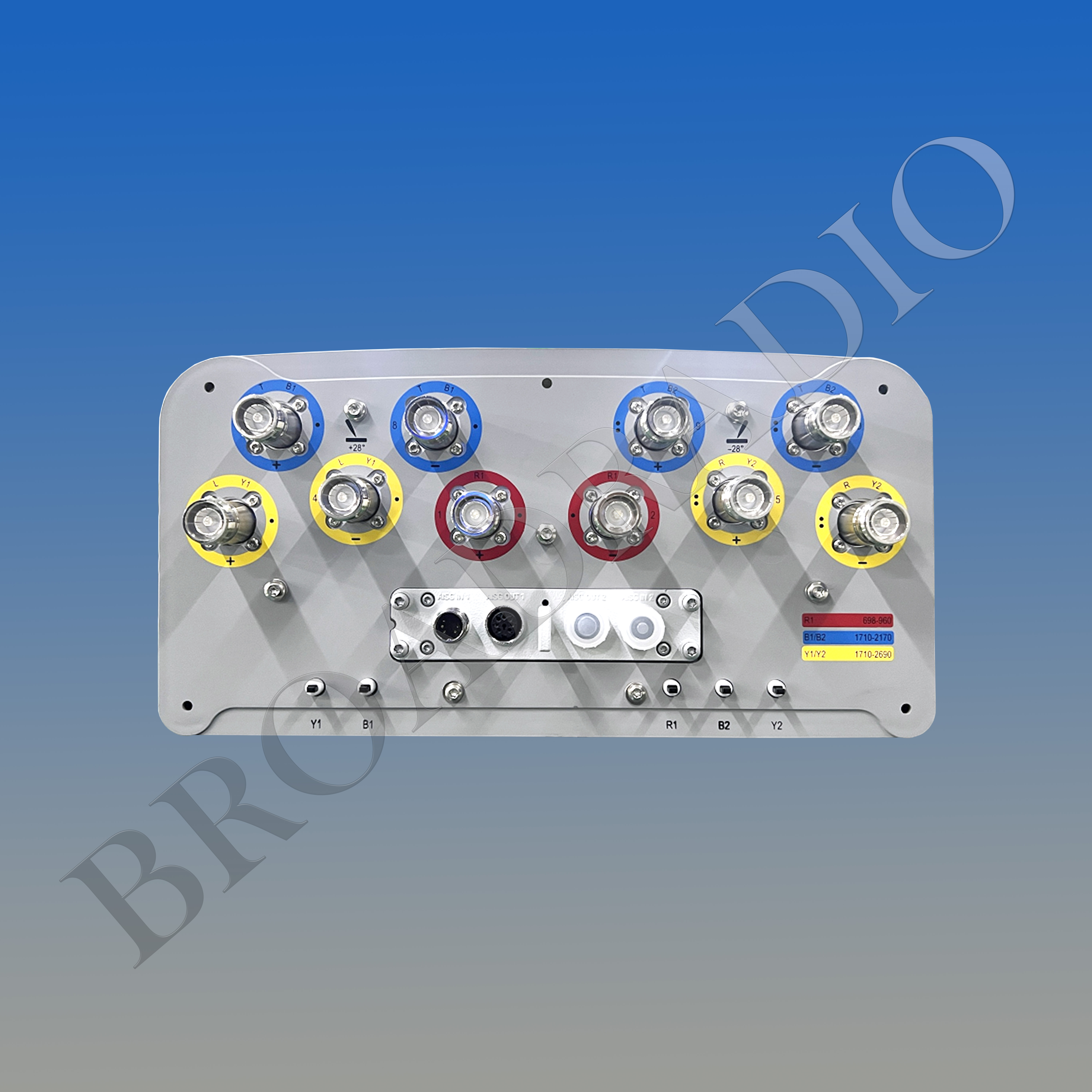

Connector Type: | 10×4.3-10Female | ||||||||
Mechanical Data

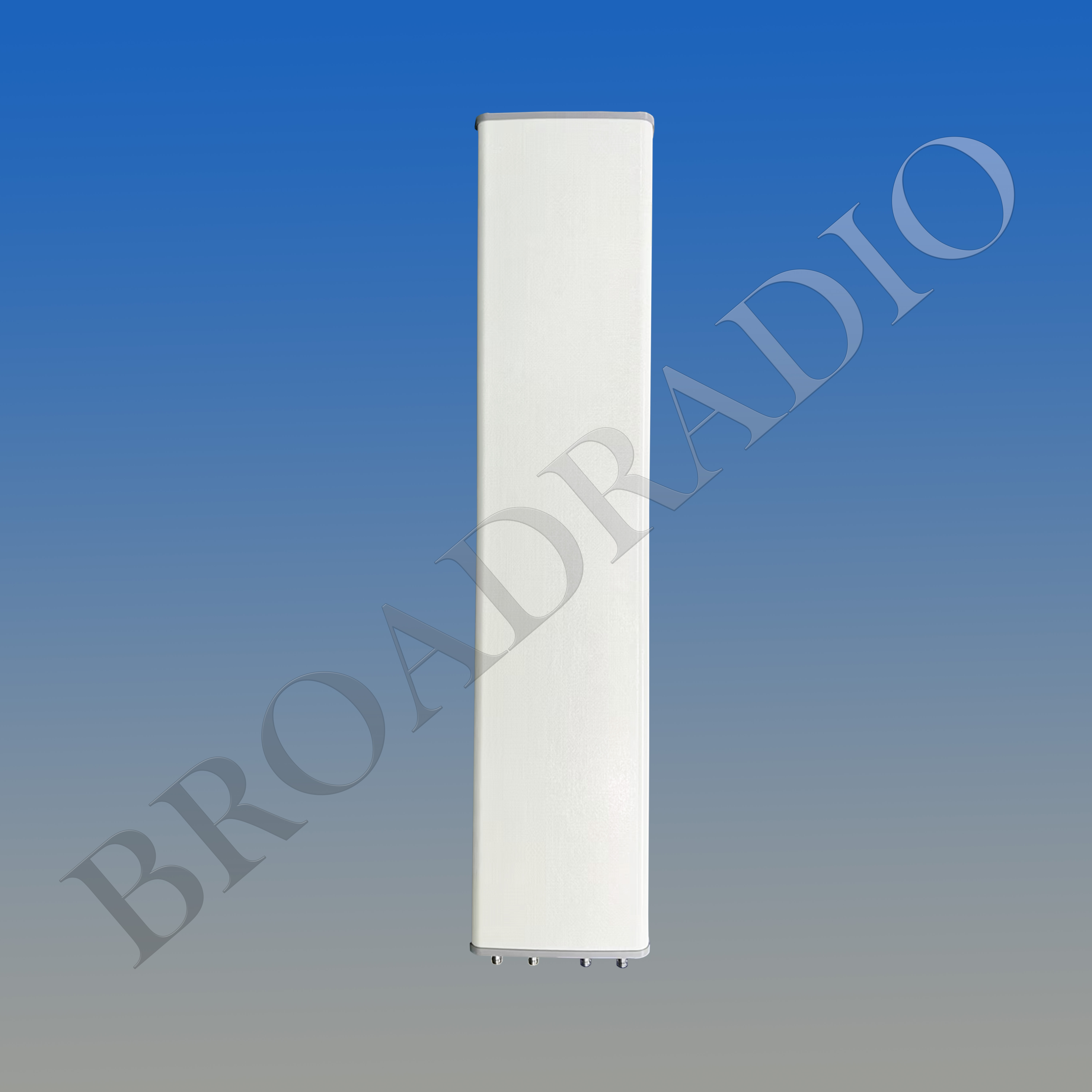

Antenna Dimensions (mm): | 1595×339×169 |
Packing Dimensions (mm): | 1855×420×255 |
Antenna Net Weight/Bracket (kg): | 22.5/5.9 |
Antenna Gross Weight (kg): | 32.5 |
Radome Material: | Fiberglass |
Pipe OD (mm): | 50-115 |
Mounting Kits (Included): | BA.K.04.00069111,Adjustable Downtilt 0°-13° |
