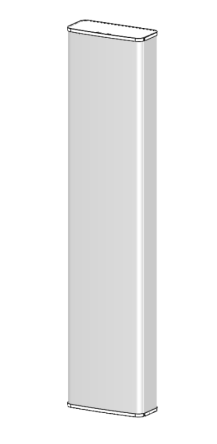

1LB4MB 65°/33°/33° 15.5/18.5/18dBi Hybrid Antenna
Model: U22LLPX308.208P-2C
Electrical Specifications
Frequency Range (MHz): | 698-960(R1,R2) | 1710-2690(Y1,Y2) (Dual beam) | 1710-2690(Y3,Y4)(Dual beam) | ||||||
698 -806 | 806 -880 | 880 -960 | 1710 -1880 | 1880 -2170 | 2300 -2690 | 1710 -1880 | 1880 -2170 | 2300 -2690 | |
Gain (dBi): | 14.5 ±0.5 | 14.9 ±0.5 | 15.3 ±0.5 | 17.2 ±0.8 | 17.8 ±0.8 | 18.1 ±0.8 | 17.0 ±0.8 | 17.4 ±0.8 | 17.6 ±0.8 |
Return Loss (dB): | >14 (VSWR<1.5) | ||||||||
Polarization: | ±45° | ||||||||
RET Type: | Cascade SRET, AISG 2.0, Upgradeable | ||||||||
Horizontal Beam Pointing: (°): |
| -29, +29 | -26, +26 | -22, +22 | -29, +29 | -26, +26 | -22, +22 | ||
Horizontal 3dB Beamwidth (°): | 72 | 65 | 60 | 35 | 32 | 25 | 35 | 32 | 25 |
Vertical 3dB Beamwidth (°): | 12 | 10.5 | 9.5 | 11.5 | 10 | 8.5 | 11.5 | 10 | 8.5 |
Electrical Downtilt (°): | 2-12 Independently Continuously Adjustable | 2-12 Independently Continuously Adjustable | |||||||
The First Sidelobe Suppression (dB): | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
Front to Back Ratio (dB): | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
CPR at Boresight(dB): | 15 | 15 | 15 | 12 | 13 | 13 | 12 | 13 | 13 |
Polarization Isolation (dB): | >25 | ||||||||
Interband Isolation (dB): | >25(R1//Y1,Y2//R2//Y3,Y4) | ||||||||
Beam Isolation(dB): | / | >16 | >16 | ||||||
Max. Power Per Port (W): | 300 | 200 | |||||||
Intermodulation IM3 (dBc): | <-153(2×43 dBm) | ||||||||
Impedance (ohm): | 50 | ||||||||
Lightning Protection: | DC Grounded | ||||||||
Connector Type: | 12×4.3-10 Female | ||||||||
Mechanical Data
Antenna Dimensions (mm): | 2100×498×197 |
Packing Dimensions (mm): | 2360×580×285 |
Antenna Net Weight/Bracket (kg): | 43/5.9 |
Antenna Gross Weight (kg): | 57 |
Radome Material: | Fiberglass |
Pipe OD (mm): | 50-115 |
Mounting Kits (Included): | BA.K.04.00069341, Adjustable Downtilt 0°-14° |
