XXX Pol Panel Hybrid Antenna 698-960/2×1710-2690MHz 65°/32° 16/20dBi 2-12°/ 2-10° Replaceable RET

1LB2MB 65°/32° 16/20dBi Hybrid Antenna

Model: U2LPX307.211P-E2-C


Electrical Specifications

Frequency Range (MHz):

698-960(R1)

1710-2690(Y1,Y2)

698-806

806-880

880-960

1710-1880

1880-2170

2300-2690

Gain (dBi):

14.1±0.5

15.0±0.5

15.4±0.5

17.9±0.5

18.4±0.5

19.4±0.5

Return Loss (dB):

>14 (VSWR<1.5)

Polarization:

±45°

Horizontal 3dB Beamwidth (°):

68

67

64

2×35

2×31

2×25

Horizontal Beam Pointing (°):

/

±29

±26

±23

Vertical 3dBBeamwidth (°):

12.4

10.8

10

6.9

5.8

5.2

Electrical Downtilt (°):

2°-12° Independently Continuously Adjustable

2°-10° Independently Continuously Adjustable

RET Type:

Cascade SRET, AISG 2.0,Upgradeable

1st Upper Sidelobe Suppression(dB) :

15

14

13

13

14

15

Front to Back Ratio(dB):

24

26

26

26

26

27

CPR at Boresight(dB):

20

17

20

17

18

14

CPR at Sector(dB):

12

9

12

/

/

/

Polarization Isolation (dB):

>25

>25

Interband Isolation (dB):

>25(R1// Y1,Y2)

Max. Power Per Port (W):

250

200

Intermodulation IM3 (dBc):

<-150 (2×43 dBm)

Impedance (ohm):

50

Lightning Protection:

DC Grounded

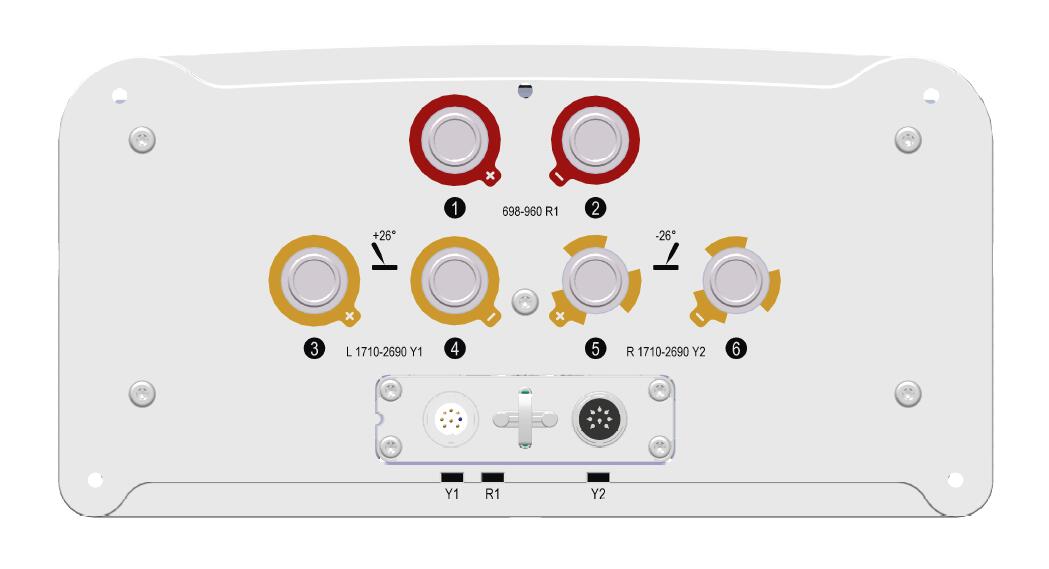

Connector Type:

6×4.3-10 Female


Mechanical Data

Antenna Dimensions (mm):

2000×339×169

Packing Dimensions (mm):

2290×425×260

Antenna Net Weight/Bracket (kg):

25/5.9

Antenna Gross Weight (kg):

35

Radome Material:

Fiberglass

Pipe OD (mm):

50-114

Mounting Kits (Included):

BA.K.04.00069101 Adjustable Downtilt 0°-12°
