Product Data Sheet

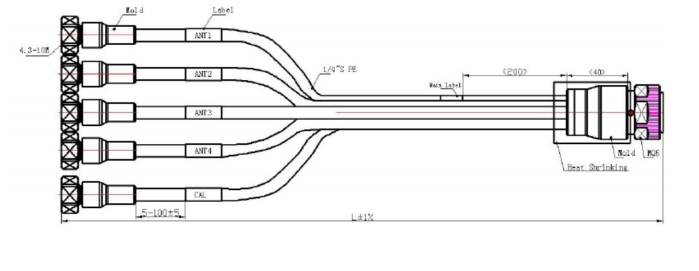

JP-MQ5FCM-5M
Electrical Properties
| Inner Conductor | Beryllium copper, Silver Plating (MQ4) |
| Brass, Silver Plating (4.3-10) | |
| Inner Conductor | PTFE |
| Nut/Body | Brass, SnNi Plating (MQ5) |
| Brass, CuSnZn Plating (4.3-10) | |
| O-Ring | Silicone Rubber |
| Number of bends: | 15 (Min) |
| Max Tensile Force (N): | 650 |
| Max Transverse Compression (N/mm): | 15 |
| Cable Type | 1/2 Super flexible non-flammable |
| Connector | MQ4/4.3-10 Male |
| Impedance (ohm): | 50 |
| Frequency Range (GHz): | DC-6 |
| VSWR: | ≤1.12@DC～2.7GHz |
| ≤1.20@2.7～4.2GHz | |
| ≤1.35@4.2～6.0GHz | |
| PIM (dBc): | ≤-155 |
| Insertion Loss (dB): | ≤(L*0.37+0.15)@DC～2.7GHz |
| ≤(L*0.53+0.2)@2.7～4.2GHz | |
| ≤(L*0.6+0.2)@4.2～6.0GHz | |
| Insulation Withstand Voltage (V): | DC 1000 Max. |
| Length (m): | 5 |
| Installation Temperature (℃): | -40～+60 |
| Operation Temperature (℃): | -40～+60 |
