4MB 65°/32° 18/18/20/20dBi Hybrid Antenna

1710-2170

-2170

2300-2490

2490-2690

1710-2170

-2170

2300-2490

2490-2690

Gain (dBi):

16.8±0.5

.±0.5

17.4±0.5

17.7±0.5

18.5±0.5

19.5±0.5

19.6±0.5

Return Loss (dB):

>14 (VSWR<1.5)

Polarization:

±45°

Horizontal 3dB beamwidth (°):

72

64

61

2×36

2×28

2×25

Horizontal Beam Pointing (°):

/

-29, +29

-25, +25

-20, +20

Vertical 3dB beamwidth (°):

6.8

5.4

5.0

8.0

6.3

6.0

Electrical Downtilt (°):

2-12 Independently Continuously Adjustable

2-10 Independently Continuously Adjustable

RET Type:

RET Cascade SRET, AISG 2.0, Upgradeable

1st Upper Sidelobe Suppression (dB):

14

14

14

14

14

14

Front to Back Ratio @180±30°(dB):

24

24

24

25

25

25

CPR at Boresight (dB):

15

15

15

15

15

15

Isolation Between Polarizations (dB):

>25

>25

Isolation Between beams (dB):

/

>25

>16

Max. Power Per Port (W):

200

200

Intermodulation IM3 (dBc):

<-150 (2×43 dBm)

Impedance (ohm):

50

Lightning Protection:

DC Grounded

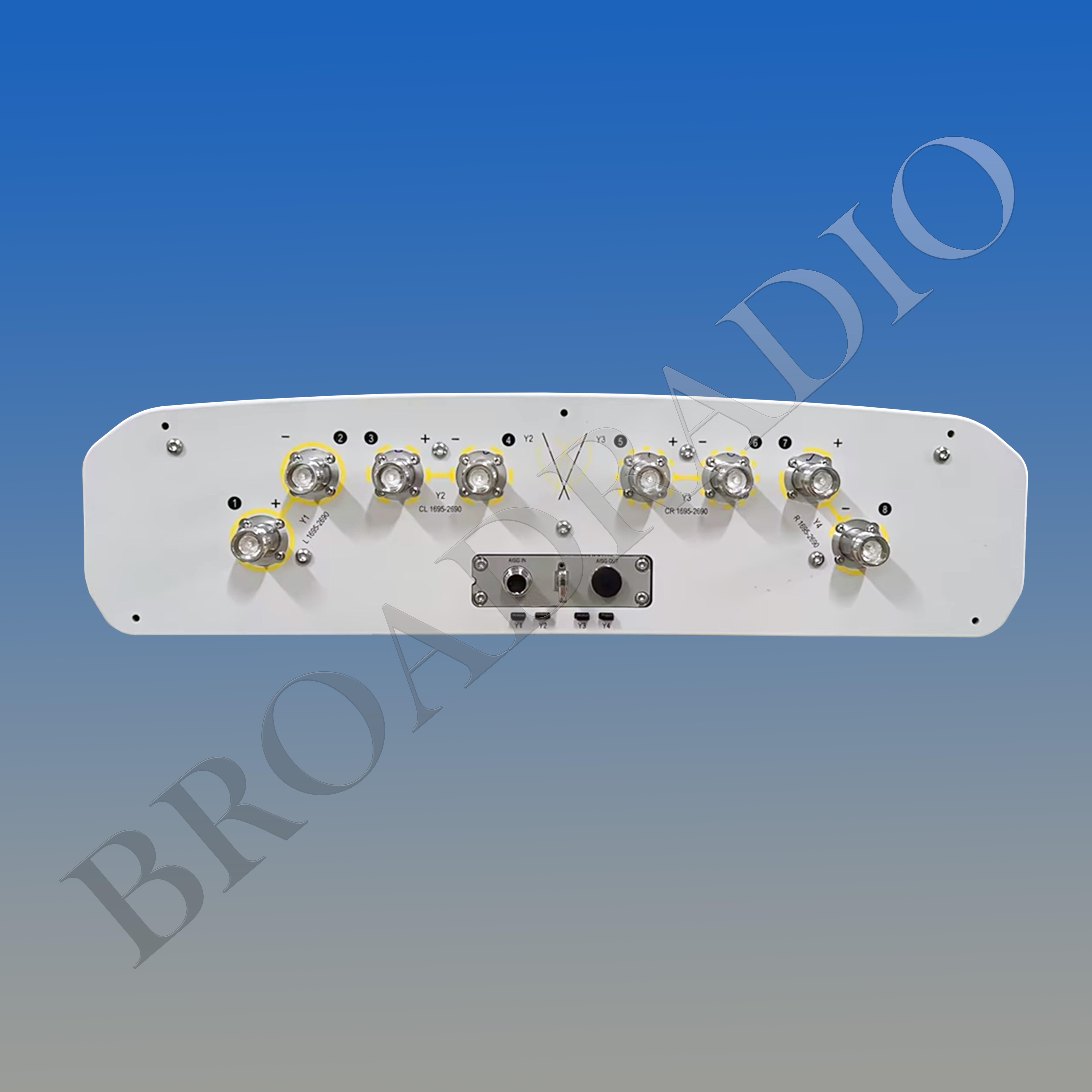

Connector Type:

8×4.3-10 Female

Packing Dimensions (mm):

 Packing Dimensions (mm):

1500×680×260

Antenna Net Weight/Bracket (kg):

21.5/5.9

Antenna Gross Weight (kg):

32

Radome Material:

Fiberglass

Pipe OD (mm):

50-115

Mounting Kits (Included):

BA.K.04.00069151, Adjustable Downtilt 0°-20°
