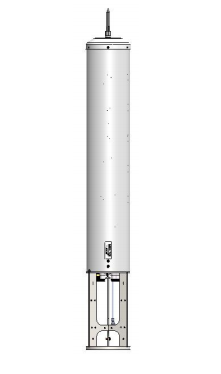

3MB 65° 14.5dBi Tube Antenna
Model: LLLOX305P-2C
Electrical Specifications
Frequency Range (MHz): | 1710-2690(Y1,Y2,Y3) | ||
1710-2170 | 2300-2490 | 2490-2690 | |
Gain (dBi): | 13.5±05 | 13.9±0.5 | 14.2±0.5 |
Return Loss (dB): | >14 (VSWR<1.5) | ||
Polarization : | ±45° | ||
Horizontal 3dB Beamwidth (°): | 69 | 68 | 66 |
Vertical 3dB Beamwidth (°): | 16.0 | 12.5 | 11.5 |
Electrical Downtilt (°): | 2-12 Independently Continuously Adjustable | ||
1st Upper Sidelobe Suppression (dB): | 15 | 15 | 15 |
Front to Back Ratio (dB): | 25 | 25 | 25 |
Cross Polar Ratio 0° (dB): | 15 | 15 | 15 |
Isolation Port to Port (dB): | >25 | ||
Intermodulation IM3 (dBc): | <-150 (2×43 dBm) | ||
Impedance (ohm): | 50 | ||
Max. Power Per Port (W): | 250 | ||
Lightning Protection: | DC Grounded | ||
Connector Type: | 6×4.3-10 Female | ||
Mechanical Data
Antenna Dimensions (mm): | Φ160(Diameter)×1150(Length) |
Packing Dimensions (mm): | 1285(Length)×265(Wide)×270(High) |
Antenna Net Weight (kg): | 9 |
Antenna Gross Weight (kg): | 11 |
Radome Material: | Fiberglass |
Pipe OD (mm): | / |
Mounting Kits (Included): | Flange Mounted |
