MIMO Ceiling Antenna 698-960/1710-2700MHz 360° 3/4.5dBi

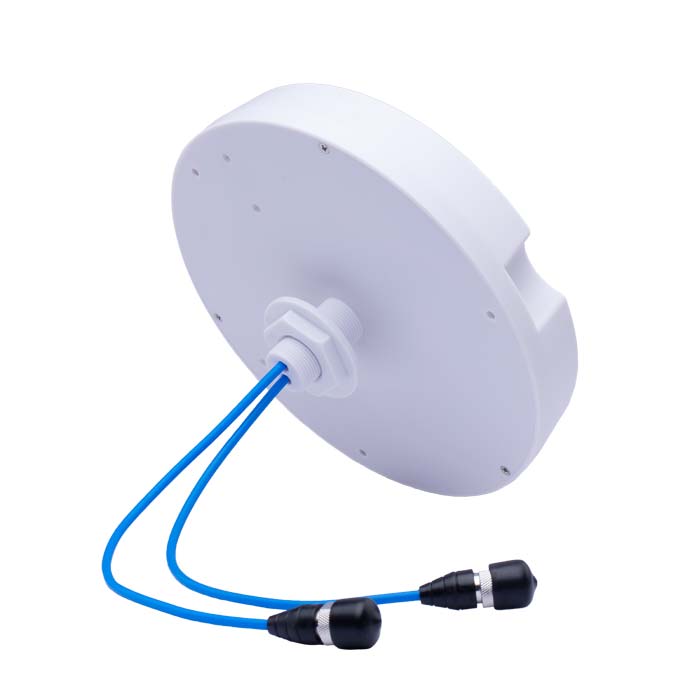

698-2700MHz 2 Ports Ceiling Mount Antenna
Model: ULNT001F0-2P-V2-C-DA
Electrical Specifications
Frequency Range (MHz): | 698-960 | 1710-2700 |
Gain (dBi): | 3.0 | 4.5 |
VSWR: | <1.8 | <1.7 |
Polarization: | Linear H-V for each Radiator | |
Horizontal 3dB Beamwidth (°): | 360 | |
Vertical 3dB Beamwidth (°): | 90 | 46 |
Isolation(dB): | 19 | 23 |
Power Rating (W): | 50 | |
Intermodulation IM3 (dBc): | <-150(2×43 dBm) | |
Impedance (ohm): | 50 | |
Connector Type: | 2×4.3-10 Female | |
Mechanical Data
Antenna Dimensions (mm): | Φ215×47 |
Packing Dimensions (mm): | 219×219×131 |
Antenna Net Weight (kg): | 0.6 |
Antenna Gross Weight (kg): | 0.62 |
Radome Material: | ABS (UV Stabilized) |
