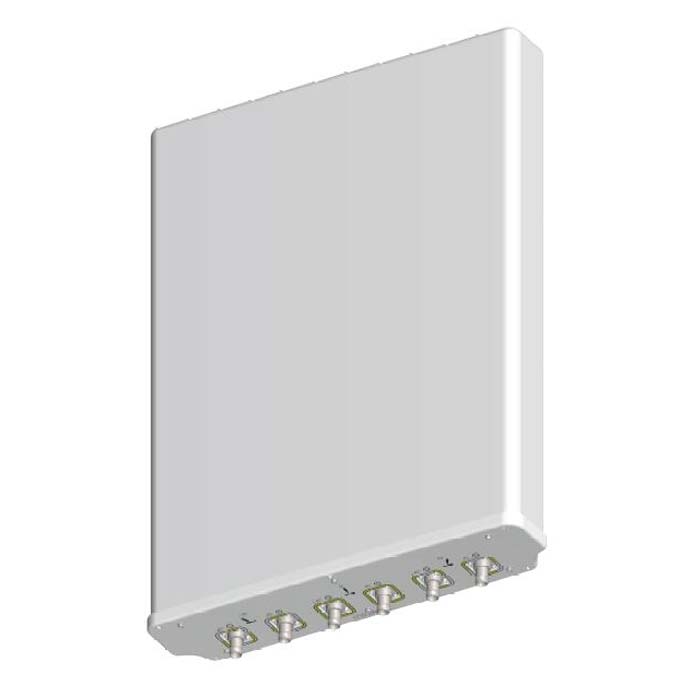

3MB 16° 19.5 dBi Triple Beam Antenna

1710-2300

2300-2690

1710-1880

1880-2025

2025-2300

2300-2450

2450-2550

2550-2690

Gain (dBi):

17.8±0.5

18.7±0.5

19.6±0.5

19.4±0.5

18.7±0.5

19.4±0.5

Horizontal 3dB beamwidth (°):

20.9

19.0

17.4

16.0

15.7

14.8

Horizontal Beam Pointing (°):

0

0

0

0

0

0

Vertical 3dB beamwidth (°):

15.6

13.8

12.5

11.4

10.9

10.4

1710-2300

2300-2690

1710-1880

1880-2025

2025-2300

2300-2450

2450-2550

2550-2690

B1

B3

B1

B3

B1

B3

B1

B3

B1

B3

B1

B3

Gain (dBi):

17.1±0.5

17.0±0.5

17.7±0.5

17.7±0.5

18.6±0.5

18.6±0.5

17.4±0.5

17.9±0.5

16.8±0.5

17.1±0.5

16.8±0.5

16.9±0.5

Horizontal 3dB beamwidth (°):

22.7

22.7

20.6

20.5

18.7

18.8

17.3

17.2

16.1

16.1

15.0

15.0

Horizontal Beam Pointing (°):

38

-37

34

-34

31

-30

28

-27

27

-26

25

-24

Vertical 3dB beamwidth (°):

18.7

16.6

17.1

14.9

15.6

13.2

14.3

12.1

13.7

11.5

13.1

10.9

1710-2300

2300-2690

Return Loss (dB):

>14 (VSWR<1.5)

Polarization:

±45°

Electrical Downtilt (°):

6 Fixed

6 Fixed

1^st Upper Sidelobe Suppression (dB):

18

16

Front to Back Ratio @180±30°(dB):

33

34

Isolation Between Polarizations (dB):

25

Max. Power Per Port (W):

200

Total Power for the Antenna(W):

800

Intermodulation IM3 (dBc):

<-150 (2×43 dBm)

Impedance (ohm):

50

Lightning Protection:

DC Grounded

Connector Type:

6x4.3-10 Female

Packing Dimensions (mm):

956×720×236

Antenna Net Weight (kg):

20/5.7

Antenna Gross Weight (kg):

30

Radome Material:

Fiberglass

Pipe OD (mm):

70-114

Mounting Kits (Included):

BA.K.04.00032，

Adjustable Downtilt 0°-10°(0,3°-10°in 1°Steps)
