3×1LB2MB 65°14/17dBi Tube Antenna

3XXX Pol Tube Antenna 3×698-960/6×1710-2690MHz 65°/65° 14/17dBi 0°-10°/0°-10° RET

3×1LB2MB 65°14/17dBi Tube Antenna

Model: 3UL2OX305.10R3-C


Electrical Specifications

Frequency Range (MHz):

3×698-960(R1)

6×1710-2690 (Y1,Y2)

698-803

790-862

824-894

880-960

1710

-1990

1920

-2200

2200

-2490

2490

-2690

Gain (dBi),

13.0±0.5

13.3±0.5

13.6±0.5

14.0±0.5

16.0±0.5

16.5±0.5

16.7±0.5



17.0±0.5

Return Loss (dB):

>14 (VSWR<1.5)

Polarization:

±45°

Horizontal 3dB Beamwidth (°):

73±7

67±6

66±6

65±5

68±6

65±6

62±5

60±5

Vertical 3dB Beamwidth (°),

19.2±1.8

17.2±1.7

16.5±1.6

15.0±1.5

8.5±0.6

7.5±0.6

7.0±0.6

6.5±0.6

Electrical Downtilt (°):

0-10

0-10

RET Type:

RET Cascade SRET, AISG 2.0, Upgradeable

1st Upper Sidelobe Suppression (dB):

≥15

≥15

≥15

≥15

≥15

≥15

≥15

≥15

Front to Back Ratio 180±300(dB):

≥23

≥23

≥24

≥25

≥25

≥25

≥25

≥25

Cross Polar Ratio 0° (dB)

≥15

≥15

≥15

≥15

≥15

≥15

≥15

≥15

Cross Polar Ratio ±60°(dB):

10

9

9

8

8

8

7

5

Intraband Isolation (dB):

≥25

≥26

Interband Isolation (dB):

≥28

Max. Power Per Port (W):

250

200

Intermodulation IM3 (dBc):

<-150 (2×43 dBm)

Impedance (ohm):

50

Lightning Protection:

DC Grounded

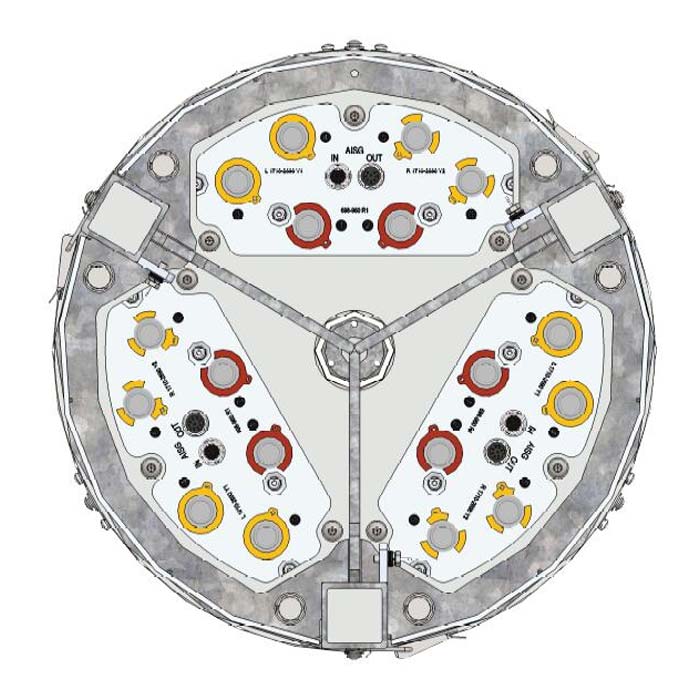

Connector Type:

18×4.3-10 Female



Mechanical Data

Antenna Dimensions (mm):

Φ450(Diameter)×1360(Length, mounting base excluded )

Packing Dimensions (mm):

1830(Length)×605(Width)×730(Height)

Antenna Net Weight (kg):

84

Antenna Gross Weight (kg):

125

Radome Material:

Fiberglass

Mounting Kits (Included):

Flange Mounted
