1LB3MB 65° 16/18dBi Multi-band Antenna

XXXX Pol Panel Antenna 698-960/3×1710-2690MHz 65°/65 16/18dBi 0°-10° Replaceable RET

1LB3MB 65° 16/18dBi Multi-band Antenna

Model: ULLLPX307.12P-C


Electrical Specifications

Frequency Range (MHz):

698-960(R1)

1710-2690(Y1,Y2,Y3)

698-806

806-880

880-960

1710-2170

2300-2490

2490-2690

Gain (dBi):

14.6±0.5

15.3±0.5

15.6±0.5

16.8±0.5

17.5±0.5

17.8±0.5

Return Loss (dB):

>14 (VSWR<1.5)

Polarization:

±45°

Horizontal 3dB Beamwidth (°):

65

62

60

67

60

58

Vertical 3dB Beamwidth (°):

11.0

10.0

9.3

6.0

4.8

4.3

Electrical Downtilt (°):

0-10 Independently Continuously Adjustable

RET Type:

Cascade SRET, AISG 2.0, Upgradeable

1st Upper Sidelobe Suppression (dB):

15

15

15

15

15

15

Front to Back Ratio 180±300(dB):

22

23

24

25

25

25

Cross Polar Ratio 0° (dB):

15

15

15

15

15

15

Intraband Isolation (dB):

>25

>25

Interband Isolation (dB):

>28

Max. Power Per Port (W):

250

200

Intermodulation IM3 (dBc):

<-150 (2×43dBm)

Impedance (ohm):

50

Lightning Protection:

DC Grounded

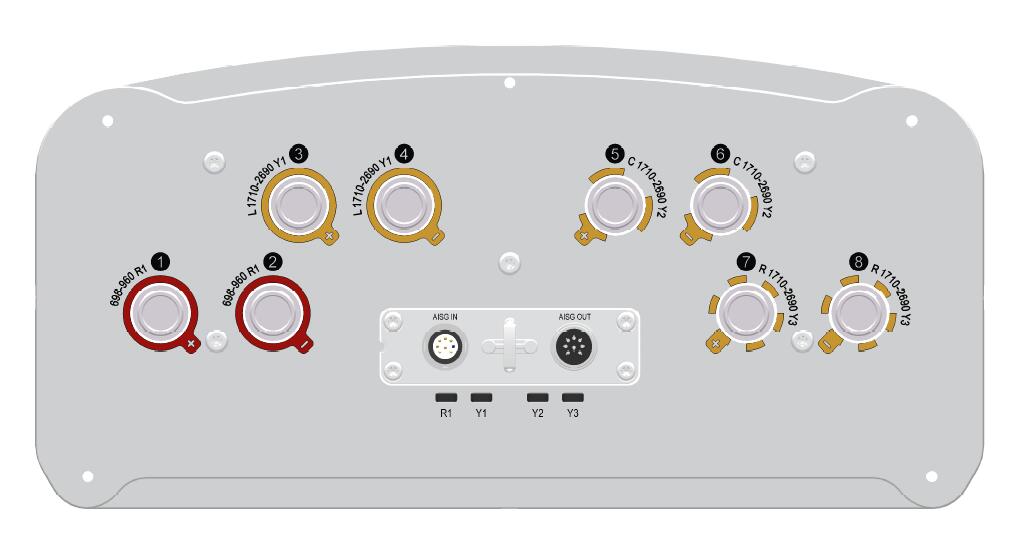

Connector Type:

8×4.3-10 Female


Mechanical Data

Antenna Dimensions (mm):

1995×396×190

Packing Dimensions (mm):

2265×485×285

Antenna Net Weight/Bracket (kg):

28/5.9

Antenna Gross Weight (kg):

40

Radome Material:

Fiberglass

Pipe OD (mm):

50-115

Mounting Kits (Included):

BA.K.04.00069121, Adjustable Downtilt 0°-14°
