9MB 5° 24dBi Nona Beam Antenna

9X Pol Panel Nine Beam Antenna 9×1710-2690MHz 5° 24dBi 6° FET

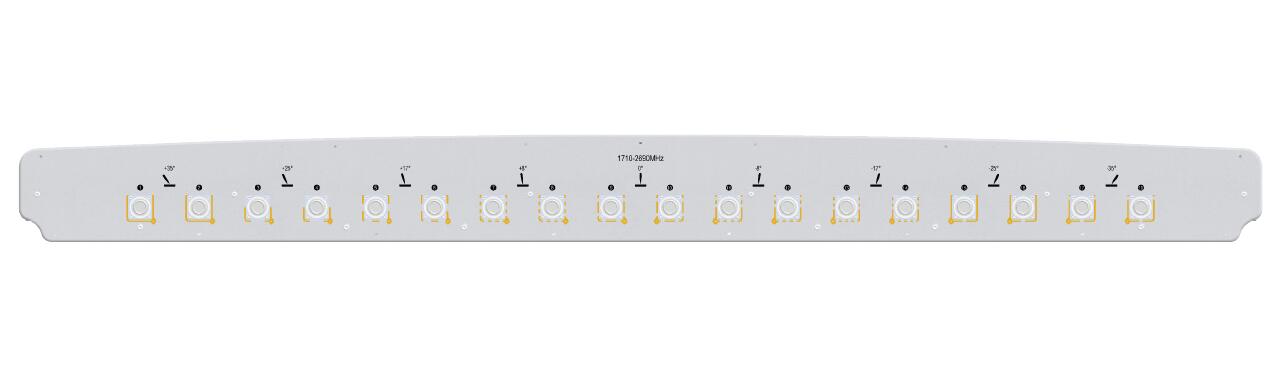

9MB 5° 24dBi Nona Beam Antenna

Model: 9LPX2006F6-C


Electrical Specifications

Frequency Range (MHz):

Beam 1 (Port 1/2)

1710-1880

1880-2025

2025-2300

2300-2450

2450-2550

2550-2690

Gain (dBi):

19.4±1.6

20.5±0.4

20.7±0.4

21.6±0.7

21.0±1.0

20.5±1.2

Horizontal 3dB Beamwidth (°):

8.4±1.0

7.0±0.5

6.0±0.6

5.3±0.3

4.9±0.3

4.7±0.2

Vertical 3dB Beamwidth (°):

21.6±2.5

17.5±1.8

15.1±0.8

13.8±0.7

12.0±1.3

12.4±0.5

Horizontal Beam Pointing (°):

46

41

37

34

31

30

Electrical Downtilt (°):

6.0 Fixed

1st Upper Sidelobe Suppression (dB):

21

17

13

18

12

13

Front to Back Ratio (dB):

28

31

33

31

32

32

CPR at boresight  (dB):

13

23

23

21

21

20



Frequency Range (MHz):

Beam 2 (Port 3/4)

1710-1880

1880-2025

2025-2300

2300-2450

2450-2550

2550-2690

Gain (dBi):

20.9±0.6

21.2±0.3

21.3±0.3

22.3±0.6

22.2±1.4

22.3±0.7

Horizontal 3dB Beamwidth (°):

7.0±0.5

6.1±0.6

5.4±0.3

5.0±0.3

4.6±0.3

4.4±0.2

Vertical 3dB Beamwidth (°):

18.1±1.5

15.5±1.4

13.7±0.5

12.5±0.9

11.3±0.5

10.5±0.3

Horizontal Beam Pointing (°):

33

30

27

25

23

22

Electrical Downtilt (°):

6.0 Fixed

1st Upper Sidelobe Suppression (dB):

20

19

18

23

15

15

Front to Back Ratio (dB):

26

32

31

32

29

29

CPR at Boresight (dB):

28

23

24

23

19

18



Frequency Range (MHz):

Beam 3 (Port 5/6)

1710-1880

1880-2025

2025-2300

2300-2450

2450-2550

2550-2690

Gain (dBi):

21.4±0.7

21.7±0.2

21.9±0.5

22.5±0.9

22.6±1.5

23.1±0.6

Horizontal 3dB Beamwidth (°):

6.3±0.5

5.6±0.4

5.1±0.3

4.7±0.3

4.5±0.2

4.3±0.2

Vertical 3dB Beamwidth (°):

16.5±1.6

14.5±0.6

12.7±1.3

11.6±0.2

11.3±0.3

11.0±0.2

Horizontal Beam Pointing (°):

22

20

18

17

16

15

Electrical Downtilt (°):

6.0 Fixed

1st Upper Sidelobe Suppression (dB):

20

23

17

16

17

17

Front to Back Ratio (dB):

30

32

34

31

29

34

CPR at Boresight (dB):

19

20

23

25

20

21



Frequency Range (MHz):

Beam 4 (Port 7/8)

1710-1880

1880-2025

2025-2300

2300-2450

2450-2550

2550-2690

Gain (dBi):

21.4±0.8

21.6±0.2

22.0±0.4

22.8±0.7

22.8±1.0

23.5±0.2

Horizontal 3dB Beamwidth (°):

6.1±0.5

5.5±0.3

5.0±0.4

4.5±0.2

4.3±0.2

4.0±0.3

Vertical 3dB Beamwidth (°):

15.6±1.5

13.8±0.5

12.3±1.2

11.4±0.2

11.0±0.4

10.5±0.3

Horizontal Beam Pointing (°):

11

10

10

9

8

8

Electrical Downtilt (°):

6.0 Fixed

1st Upper Sidelobe Suppression (dB):

20

18

17

17

17

16

Front to Back Ratio (dB):

28

31

33

31

33

33

CPR at Boresight (dB):

16

18

20

22

20

22




Frequency Range (MHz):

Beam 5 (Port 9/10)

1710-1880

1880-2025

2025-2300

2300-2450

2450-2550

2550-2690

Gain (dBi):

21.4±0.6

21.7±0.3

21.7±0.3

22.6±0.2

22.8±0.6

23.4±0.2

Horizontal 3dB Beamwidth (°):

5.9±0.5

5.4±0.2

4.9±0.5

4.5±0.2

4.3±0.2

4.1±0.2

Vertical 3dB Beamwidth (°):

15.4±1.5

13.6±0.3

12.1±1.4

11.1±0.2

10.7±0.4

10.2±0.3

Horizontal Beam Pointing (°):

1

1

1

1

1

1

Electrical Downtilt (°):

6.0 Fixed

1st Upper Sidelobe Suppression (dB):

20

21

20

19

19

17

Front to Back Ratio (dB):

26

32

32

30

30

30

CPR at Boresight (dB):

15

17

19

21

18

24



Frequency Range (MHz):

Beam 6 (Port 11/12)

1710-1880

1880-2025

2025-2300

2300-2450

2450-2550

2550-2690

Gain (dBi):

21.4±0.6

21.6±0.3

22.0±0.2

22.6±0.2

22.8±0.1

23.4±0.3

Horizontal 3dB Beamwidth (°):

5.9±0.5

5.4±0.2

5.0±0.2

4.6±0.2

4.3±0.2

4.2±0.2

Vertical 3dB Beamwidth (°):

15.3±1.0



13.6±0.9

12.2±0.7

11.2±0.3

10.7±0.4

10.3±0.6

Horizontal Beam Pointing (°):

-9

-8

-7

-6

-6

-6

Electrical Downtilt (°):

6.0 Fixed

1st Upper Sidelobe Suppression (dB):

22

21

20

19

18

16

Front to Back Ratio (dB):

24

33

38

32

31

31

CPR at Boresight (dB):

17

18

18

18

16

21



Frequency Range (MHz):

Beam 7 (Port 13/14)

1710-1880

1880-2025

2025-2300

2300-2450

2450-2550

2550-2690

Gain (dBi):

21.2±0.6

21.4±0.1

21.7±0.1

22.6±0.5

22.6±0.5

23.3±0.6

Horizontal 3dB Beamwidth (°):

6.4±0.5

5.8±0.3

5.1±0.6

4.6±0.2

4.3±0.3

4.2±0.2

Vertical 3dB Beamwidth (°):

16.3±1.5



14.4±0.6

12.6±1.4

11.4±0.2

11.0±0.4

10.6±0.2

Horizontal Beam Pointing (°):

-20

-17

-16

-14

-13

-12

Electrical Downtilt (°):

6.0 Fixed

1st Upper Sidelobe Suppression (dB):

20

17

22

20

19

16

Front to Back Ratio (dB):

30

29

36

29

33

34

CPR at Boresight (dB):

19

19

17

26

14

20




Frequency Range (MHz):

Beam 8 (Port 15/16)

1710-1880

1880-2025

2025-2300

2300-2450

2450-2550

2550-2690

Gain (dBi):

20.9±0.7

21.2±0.2

21.3±0.1

22.4±0.3

22.4±0.3

22.5±0.8

Horizontal 3dB Beamwidth (°):

7.0±0.5

6.1±0.6

5.4±0.3

4.9±0.4

4.6±0.2

4.3±0.3

Vertical 3dB Beamwidth (°):

18.6±1.0



15.8±2.0

13.5±0.5

12.2±1.0

11.3±0.2

11.1±0.2

Horizontal Beam Pointing (°):

-31

-27

-25

-22

-21

-20

Electrical Downtilt (°):

6.0 Fixed

1st Upper Sidelobe Suppression (dB):

19

15

24

21

19

15

Front to Back Ratio (dB):

30

32

31

30

35

29

CPR at Boresight (dB):

25

19

17

18

19

17



Frequency Range (MHz):

Beam 9 (Port 17/18)

1710-1880

1880-2025

2025-2300

2300-2450

2450-2550

2550-2690

Gain (dBi):

19.6±1.4

20.6±0.2

20.9±0.2

21.9±0.2

21.3±0.5

21.0±1.3

Horizontal 3dB Beamwidth (°):

8.1±0.8

6.9±0.6

5.9±0.6

5.3±0.2

4.9±0.4

4.8±0.2

Vertical 3dB Beamwidth (°):

19.4±1.0



17.2±1.4

15.0±1.0

13.4±0.8

11.7±1.1

10.8±0.2

Horizontal Beam Pointing (°):

-44

-38

-34

-31

-29

-27

Electrical Downtilt (°):

6.0 Fixed

1st Upper Sidelobe Suppression (dB):

17

19

25

21

14

15

Front to Back Ratio (dB):

30

33

37

33

31

27

CPR at Boresight (dB):

12

21

18

16

15

17


Mechanical Data

Antenna Dimensions (mm):

945×1680×137

Packing Dimensions (mm):

1094×1840×237

Antenna Net Weight/Bracket (kg):

69/5.7

Antenna Gross Weight (kg):

90.5

Radome Material:

Fiberglass

Pipe OD (mm):

70-114

Mounting Kits (Included):

BA.K.04.00004, Adjustable Downtilt 0°-10° (0°,2°-10° in 1 steps)
