617-3800MHz Ceiling Mount Antenna

Indoor Omni Antenna 617-960/1710-2700/3300-3800MHz 2/5/5.5dBi

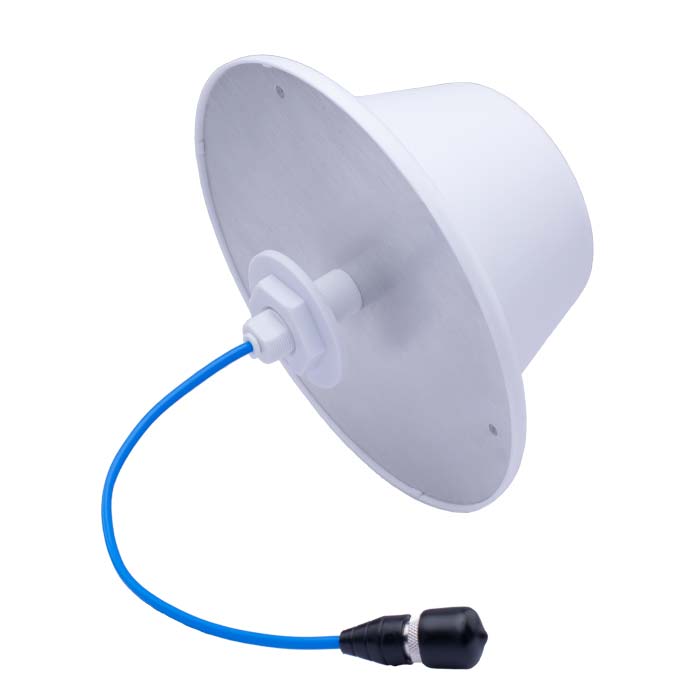

617-3800MHz Ceiling Mount Antenna

Model: JLVNA001F0-1P-C-DA


Electrical Specifications

Frequency Range (MHz):

617-960

1710-2700

3300-3800

617-806

806-960

Gain (dBi):

2.0±0.5

2.0±0.5

5±1

5.5±1

VSWR:

<2.0

<1.8

<1.5

<1.5

Polarization:

V

Horizontal 3dB beamwidth (°):

360

Intermodulation IM3 (dBc):

<-150 (2×43dBm)

Max. Power Per Port (W):

50

Impedance (ohm):

50

Lightning Protection:

DC Grounded

Connector Type:

1×4.3-10 Female

Mechanical Data

Antenna Dimensions (mm):

Φ186(Diameter)×86(Length)

Antenna Net Weight (kg):

0.3

Radome Material:

ABS
